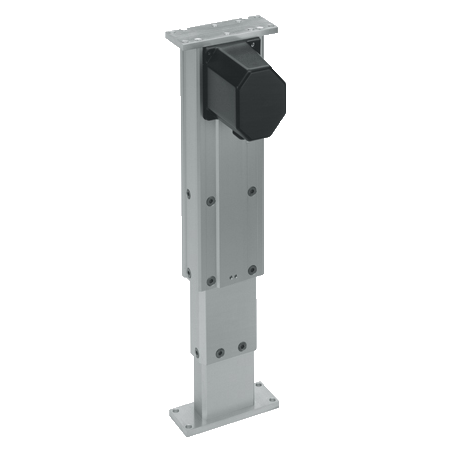

COLUMNS LAMBDA COLONNE

COLUMNS LAMBDA COLONNE

MAIN FEATURES

  • High lifting force
  • It can be mounted in any position
  • The column has an internal lock that can withstand even the maximum load
  • Thermal motor protection
  • Integrated motor
  • Internal (inside column) or external drivers

ADDITIONAL POSSIBILITIES

  • Use of a manual drive
  • Other stroke lengths available on request
  • Simultaneous control of up to 32 columns synchronized together
  • Use of internal (inside the column) or external drivers
  • Control of the column with a foot or hand remote control with a simple or advanced range of operation
  • Integrated potentiometer for synchronous operation
  • Longer duty cycle

GENERAL INFORMATION

Type Column External driver
Installation position Each position/suspended with drop protection provided by customer
Pushing force To 4500 N
Pulling force To 4500 N
speed 8 mm/s or 20 mm/s
Voltage 24 V DC 230 V AC
Level of security IP 40 (IP 54) IP 54
Self-locking To 8000 N
Ambient temperature -20°C - +60°C
Jump 200 mm – 600 mm
Duty Cycle 10% at nominal load (max. 2 min. on time, 18 min. off time)
Jump 355 mm – 498 mm
Duty Cycle at 10% nominal load (max. 2 min working time, 18 min idle time)
