THERMAL RELAY PTC MS220KA
  • THERMAL RELAY PTC MS220KA

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: ZIEHL

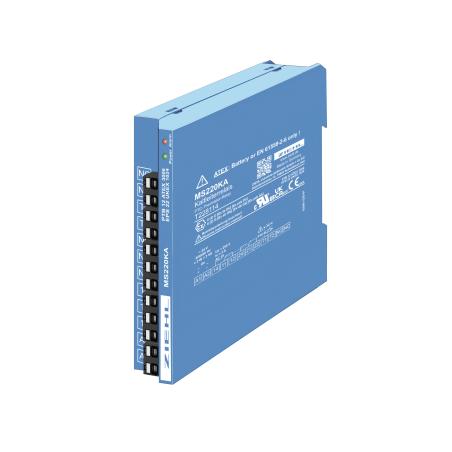

THERMAL RELAY PTC MS220KA

PTC-relay for the monitoring of dry transformers. Alarm 1 with relay in closedcircuit current mode for preliminary warning, releases at over-temperature at PTC-set 1 and serves at the same time as functional monitoring. Alarm 2 in operating current mode. Thus no wiping signal occurs when switching on the supply voltage on. Additional terminals enable comfortable wiring from supply voltage to relays K1 and/or K2.

Changes from T221715/T221716 to T221717/T221718 (cURus, monitoring of sensors activatable, improved test function)
  • 2 PTC resistor sets
  • 2 output relays 1 change-over contact (co)/ 1 normally open contact (no)
  • monitoring of sensors for short-circuit and break activatable
  • TEST-button (delayed)
  • LEDs for ON, alarm 1 and 2
  • red LEDs for alarm 1 and alarm 2
  • K-type housing
  • Housing for mounting on DIN-rail 35 mm or wall-mount with screws M4
  • alternative to foreign product type TS-01

Part number:
T221718 AC 220-240 V
T221717 AC / DC 24-240 V




Technical data


Rated supply voltage Us AC 220 - 240 V ± 10%, 50/60 Hz, ≤ 2 VA
AC / DC 24 - 240 V, AC 19 - 264 V, DC 20 - 297 V <3 VA
Connectable PTC resistors 2 x 1 ... 6 PTC according to DIN VDE V 0898-1-401 (formerly DIN 44081/82)
Switching point <4000 Ω
Output relay 1 change-over-contact (co), 1 normally-open contact (no)
Type of contact Type 2 (see general technical information)
Test conditions see general technical information
Rated ambient temperature -20 ... + 55 ° C
Dimensions h x w x d Design K: 75 x 22.5 x 115 [mm]
Attachment on 35 mm DIN rail according to EN 60 715 or screws M4 (option)
Protection Housing/Terminals IP30 / IP20
Weight approx. 110 g

T221717 replaces model T221715
T221718 replaces model T221716
