Gamintojas: Himmelwerk

Indukciniai šildymo generatoriai: galia 5-25 kW, dažnis 50-2000 kHz

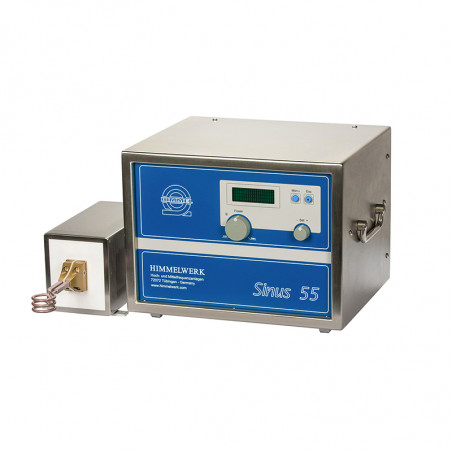

Induction Heating Generators - SINUS Series

Induction Heating Generators - SINUS Series are the ideal solution for precise, repeatable heating processes. They simultaneously provide high efficiency, reliability and high cost effectiveness. The generators have microprocessor control and can be easily integrated into production processes.

Model
HF-Power [kW]
Frequency [kHz]
Mains Voltage [V]
Mains Power [kVA]
SINUS 51
5
500-1000
3x400
5,5
SINUS 52
5
1000-2000
3x400
5,5
SINUS 55
5
200-500
3x400
5,5
SINUS 62
6
50-200
3x400
6,5
SINUS 101
10
500-1000
3x400
11
SINUS 102
10
1000-2000
3x400
11
SINUS 105
10
200-500
3x400
11
SINUS 122
12
50-200
3x400
13
SINUS 251
25
500-1000
3x400
28
SINUS 252
25
1000-2000
3x400
28

For more technical information, please refer to the data sheet under the " Downloads " tab.



Advantages:

  • High efficiency
  • High reliability
  • Reproducibility of all parameters
  • Selective heating
  • Designed for 100% duty cycle
  • Easy integration in production processes
  • Immediate readiness
  • High cost effectiveness
  • No need for demineralized cooling water

Flexibility:

  • Large spectrum of applications
  • Free programming
  • External heating head with compact design
  • Optional second switchable heating head
  • Connection with flexible cables
  • Interface for external control
  • Profibus, Profinet optional
  • Other interfaces on request
  • Optional connection with pyrometer

Applications:

Brazing, soldering, hardening, shrinkage, pre-heating, annealing, smelting, drying, tempering, forging, sintering, sealing.
