ZP serijos hermetiškų korpusų priedai

Mounting plates

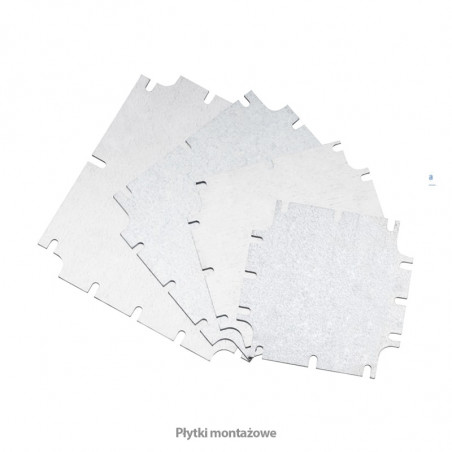

The plates are made of 2 mm galvanized steel sheet. They allow you to mount various elements anywhere on the mounting plate. The plates are mounted to the posts in the housing with screws.

Product no.	Height [mm]	Width [mm]	Lenght [mm]	Material	Applicable to
ZMB105.105	2	91	91	Galvanized steel	ZP105.105.60 ZP105.105.75
ZMB120.120	2	106	106	Galvanized steel	ZP120.120.60
ZMB135.135	2	121	121	Galvanized steel	ZP135.135.60
ZMB150.100	1,5	138	138	Galvanized steel	ZP150.100.45U ZP150.100.60 ZP150.100.60U ZP150.100.75
ZMB150.150	2	136	136	Galvanized steel	ZP150.150.60
ZMB180.120	1,5	165	106	Galvanized steel	ZP180.120.90
ZMB210.140	1,5	126	196	Galvanized steel	ZP210.140.60
ZMB240.190	1,5	220	171	Galvanized steel	ZP240.190.60

DIN Rail

Mounting posts ensure stable mounting of the rail. As a result, it is possible to mount them inside the ZP line enclosures, which require mounting on a DIN rail. The rail is dedicated like the mounting plate to the given housing size.

Product no.	Height [mm]	Width [mm]	Lenght [mm]	Material	Applicable to
TZ35.76	7,5	35	90	Galvanized steel	ZP105.105.XX ZP150.100.XX
TZ35.93	7,5	35	108	Galvanized steel	ZP120.120.XX ZP180.120.XX
TZ35.106	7,5	35	122	Galvanized steel	ZP135.135.XX ZP210.140.XX
TZ35.114	7,5	35	135	Galvanized steel	ZP150.150.XX ZP150.100.XX
TZ35.146	7,5	35	163	Galvanized steel	ZP180.120.XX ZP240.190.XX
TZ35.179	7,5	35	196	Galvanized steel	ZP210.140.XX
TZ35.201	7,5	35	218	Galvanized steel	ZP240.190.XX

Mounting brackets

Mounting brackets ensure that the device is attached to the wall without opening cover. It is useful when there is a need to mount devices in adverse conditions or if the housing has a warranty seal.

Product no.	Height [mm]	Width [mm]	Lenght [mm]	Material	Accessories	Applicable to
ZWM10	8	20	40	ABS / PC	Nut M4: 1.0 pcs Bolt M4/8: 1.0 pcs	All hermetic types
ZWM20	8	24	49	ABS / PC	Nut M4: 1.0 pcs Bolt M4/8: 1.0 pcs	All ZP line (except for ZP240.190.105)

Hinges

They are equipped with a lock which stops the lid in the open position. Hinges available in two versions: with locking or without.

Product no.	Height [mm]	Width [mm]	Lenght [mm]	Material	Accessories	Applicable to
ZHINGE10	14	23,7	47	ABS / PC	Screw 3.1/8: 8.0 pcs. Oring 4.00X1: 8.0 pcs.	ZP240.190.105
ZHINGE20	19,2	20	29	ABS / PC	Screw 3.1/8: 8.0 pcs. Oring 4.00X1: 8.0 pcs.	All ZP line (z wyjątkiem ZP240.190.105)

Kits for mounting ZP lines on polesh

Product no.	Rail lenght [mm]	Applicable to	Accessories
ZPM1	100	ZP105.105.60 ZP150.100.60	2x band with screw 4x Bolt M4x10 4x Nut M4
ZPM2	118	ZP120.120.60 ZP180.120.60
ZPM3	133	ZP135.135.60 ZP210.140.60
ZPM4	148	ZP150.100.60 ZP150.150.60
ZPM5	178	ZP180.120.60 ZP240.190.105
ZPM6	208	ZP210.140.60
ZPM7	234	ZP240.190.105

Gasket

Product no.	Lenght [mm]	Applicable to
Gasket	38	ZP105.105.60
Gasket	44	ZP120.120.60
Gasket	50	ZP135.135.60
Gasket	44	ZP150.100.45
Gasket	44	ZP150.100.60
Gasket	44	ZP150.100.75
Gasket	54	ZP150.150.60
Gasket	53	ZP180.120.90
Gasket	63,5	ZP210.140.60
Gasket	74	ZP240.190.105
