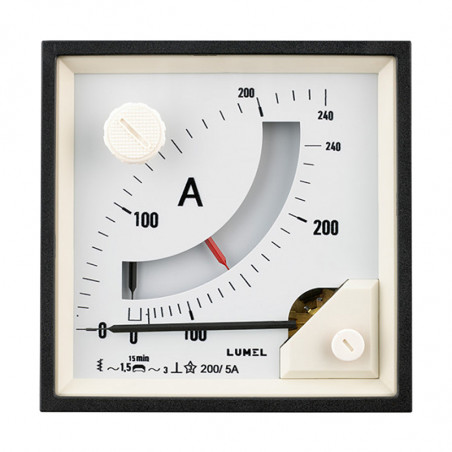

Amperometrai su IMAX indikatoriumi ir dviem veikiančiu amumeriu

APPLICATION
Bimetallic and combined ammeters are especially intended for thermal monitoring of transformers, cables and other electrical devices which have a slow reaction to current changes.
They indicate the mean rms current value during the measuring period of the meter (8 or 15 min.). These meters do not react to short current pulses essentially. The range of these meters can be enlarged by means of external measuring current transformers which are also offered by LUMEL and can be delivered on request if the meter is ordered in the option enabling a direct assembling on the current transformer.


ACCESSORIES

We deliver together with the meter:
- two snap screw holders to fix the meter,
- a protective terminal cover,
- a quality inspection certificate (if ordered).


TECHNICAL SPECIFICATIONS
Measuring ranges of the bimetallic ammeters
Measuring ranges of the
bimetallic movement		 Measuring ranges of the
electromagnetic movement		 Current
transformer
0...1 A 0...1/2 A x/1 A
0...5 A 0...5/10 A x/5 A

Accuracy class:
- bimetallic movement (BA27, BA39, BE27, BE39) 3
- moving-iron movement (BE27, BE39) 1,5
Additional errors in limits of rated operating conditions acc. to EN 60051-1
Averaging time of bimetalic movement 8 or 15 min.
Response time of the moving-iron movement (BE27, BE39) 1 s
Self consumption:
- bimetallic movement (BA27, BA39, BE27, BE39) x/1A max. 1,2 VA
  x/5A max. 2,5 VA
- moving-iron movement (in BE types only) 0,45 VA
Protection grade ensured by: wg PN-EN 60529
- housing IP50
- terminals IP 20 (with a protective terminal cover)
Used materials:
- material of the housing thermoplasic material (ABS)
- material of the base thermoplasic material (PPE)
- material of the window glass
Safety requirements acc. EN 61010 - 1
- installation category III
- protection degree 2
- maximal working voltage in relation to the earth 300 V AC
Electromagnetic compatibility
All ammeters fulfill CE mark requirements.
- emission acc. EN 61000-6-4
- immunity acc. EN 61000-6-4
External dimensions:
- BA27 and BE27 executions 72 x 72 x 61,5mm
- BA39 and BE39 executions 96 x 96 x 61,5mm
Weight:
- BA27 0,16 kg
- BE27 0,20 kg
- BA39 0,22 kg
- BE39 0,27 kg

Categories of climatic versions
If there is not given in the order, meters are destined to be applied in closed rooms, not air conditioned, in conditions of a moderate climate, acc. to EN 60051 standard. On request, meters can be adapted to be used in a dry or wet tropical climate also in closed, not air conditioned rooms. They are then marked by the TIII symbol.
Working temperature range of meters
These meters operate without damage in the temperature range: from -25oC to +40oC, in accordance with the binding standards.
Matching of meter measuring ranges to current transformer ranges:Through the dial exchange. The exchange way is shown in the user,s
manual.

EXTERNAL AND CUT-OUT DIMENSIONS

Amperomierze ze wskaźnikiem Imax oraz amperomierze dwuustrojowe

Types a b d

BA27 and BE27

 68+0,7 72 61,5

BA39 and BE39

 92+0,8 96 61,5

CODING OF THE WORKING POSITION
Range code Range description
(measuring range)		 Range
code		 Range description
(measuring range)
F201 1,2 A F366 1920 A 1,6k/1
F205 6 A F4 1,2XA X/5
F3 1,2XA X/1 F405 6 A 5/5
F301 1,2 A 1/1 F406 7,2 A 6/5
F305 6 A 5/1 F407 12 A 10/5
F306 7,2 A 6/1 F408 18 A 15/5
F307 12 A 10/1 F409 24 A 20/5
F308 18 A 15/1 F411 36 A 30/5
F309 24 A 20/1 F412 48 A 40/5
F311 36 A 30/1 F413 60 A 50/5
F312 48 A 40/1 F414 72 A 60/5
F313 60 A 50/1 F415 96 A 80/5
F314 72 A 60/1 F416 120 A 100/5
F315 96 A 80/1 F417 180 A 150/5
F316 120 A 100/1 F418 240 A 200/5
F317 180 A 150/1 F420 360 A 300/5
F318 240 A 200/1 F421 480 A 400/5
F320 360 A 300/1 F422 600 A 500/5
F321 480 A 400/1 F423 720 A 600/5
F322 600 A 500/1 F424 960 A 800/5
F323 720 A 600/1 F450 1200 A 1k/5
F324 960 A 800/1 F451 1800 A 1,5k/5
F350 1200 A 1k/1 F452 2400 A 2k/5
F351 1800 A 1,5k/1 F454 3600 A 3k/5
F352 2400 A 2k/1 F455 4800 A 4k/5
F354 3600 A 3k/1 F456 6000 A 5k/5
F355 4800 A 4k/1 F457 7200 A 6k/5
F356 6000 A 5k/1 F459 12000 A 10k/5
F357 7200 A 6k/1 F465 1440 A 1,2k/5
F359 12000 A 10k/1 F466 1920 A 1,6k/5
F365 1440 A 1,2k/1

Amperomierze ze wskaźnikiem Imax oraz amperomierze dwuustrojowe
Code Working
0 C3     90°
B C1       0°
C C2     15°
D C2     30°
E C2     45°
F C2     60°
G C2     75°
H C4   105°
K C4   120°

ORDERING CODES

Ordering examples
Code: BE39-1-T-F421-1-A-1-7 means:
BE39 combined bimetallic and moving-iron ammeter, catalogue panel fixing version, TIII climate version, current range: 400/5 A, setting time: 8 min., working position: C1 (horizontal), percentage graduation 120% and 200%, delivered with a quality inspection certificate.
Code: BA27-1-N-F205-0-O-0-8 means:
BA27 bimetallic moving-iron ammeter, measuring range: 6 A, catalogue climatic version, setting time: 15 min., without additional requirements Code: BE39-1-T-F421-1-A-1-7 means:
BE39 combined bimetallic and moving-iron ammeter, catalogue panel fixing version, TIII climate version, current range: 400/5 A, setting time: 8 min., working position: C1 (horizontal), percentage graduation 120% and 200%, delivered with a quality inspection certificate.
Code: BA27-1-N-F205-0-O-0-8 means:
BA27 bimetallic moving-iron ammeter, measuring range: 6 A, catalogue climatic version, setting time: 15 min., without additional requirements
