Gamintojas: SACI

SAM3000 tinklo parametrų analizatorius

SAM3000 is a new generation of electrical parameter monitoring product that can measure real-time electrical parameter, energy metering, power quality analysis, status monitoring and off-limit alarm functions. It can measure up to 32 three-phase circuits or 96 single-phase circuits.


General features

  • Multi-Loop Measurement
  • Easy installation
  • Harmonics up to 63rd
  • Friendly interface
  • One display module
  • 4 quadrant measurement

Measured values

  • Three phase voltage
  • Three phase current
  • Demand Max/Min/Average
  • Active power
  • Reactive power
  • Apparent power
  • Power factor
  • Frequency
  • 4 quadrant reactive energy

Technical parameters

Rated voltage 3 x 220/ 380 V AC
Overload 1,2 Un or 2 x Un x 10s
Impedance 1,7 MΩ
Frequency 45-65Hz
Burden < 0,1 VA / phase
Power supply (measurement module) 24V ± 20% DC
Relay output 280/0.12A AC, 400V/0.12A DC
Relay isolation voltage 5000V
RS-485 port Modbus-RTU
Aux. V. AC/DC 80-270V


Accuracy

Voltage and current 0,2%
Power 0,5%
Power factor 0,5%
Active Energy Class 0,5s
Reactive Energy Class 2
Apparent Energy Class 0,5
Measurement module/communication module/power module IP20
Display module IP67
Operating temperature -20 - 70ºC
Storage temperature -30 - 80ºC


Dimensions

Measurement module 1 pc. – 18mm
Communication module 18mm
Display module 96x96x38mm

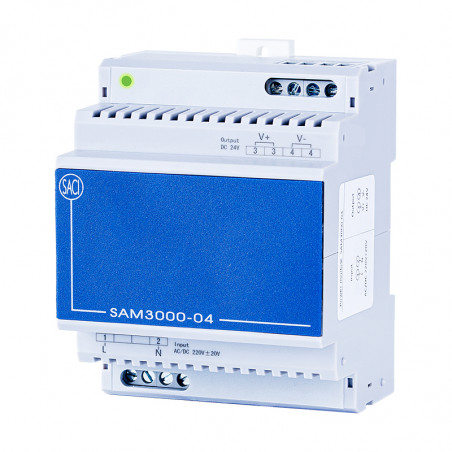

Power module 4 modules – 72mm
mažiau
