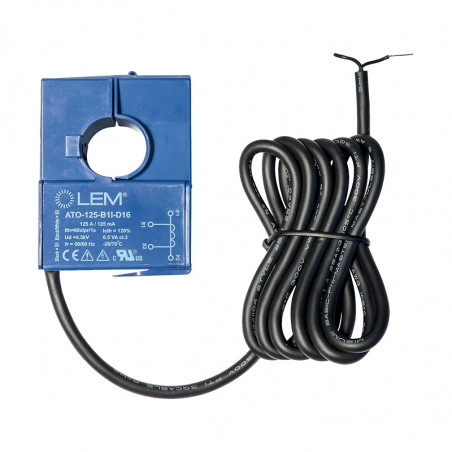

ATO - srovės transformatoriai su didelio tikslumo šerdimi ir nedidelis fazės poslinkis

Features:

• Split-core type
• Easy mounting
• Cable output: 1m
• Operating range: -10°C to +55°C for voltage output models, -25°C to +70°C for current output models
• Dimensions (ATO): 45.5 x 33.5 x 32 mm with a 10 mm sensing aperture, 56.1 x 40.8 x 33.2 mm with a 16 mm sensing aperture
• Rated insulation voltage 600V CATIII PD2, basic insulation

Standard compliance:

• The products are CE certified EMC 2014/30/EU regarding their safety according to the European directive 2014/35/EU and tested according to the standards IEC 61010-1.
• UL 508 (UR marking)
• IEC 61869 for Instrument transformers performances
• UL 2808 (in progress)
