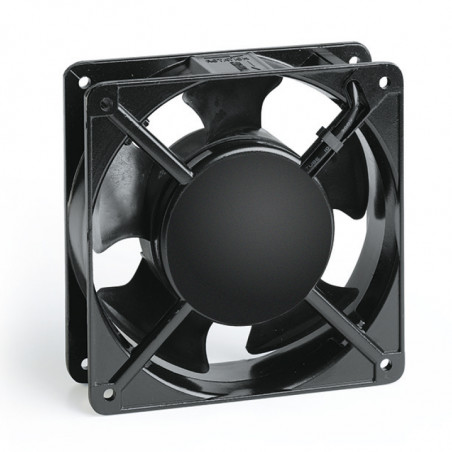

![COSTECH/FANDIS įmonės ventiliatoriai COSTECH/FANDIS įmonės ventiliatoriai](https://www.dacpol.eu/6639-large_default/costech-fandis-imones-ventiliatoriai.jpg)
![COSTECH/FANDIS įmonės ventiliatoriai COSTECH/FANDIS įmonės ventiliatoriai](https://www.dacpol.eu/6639-large_default/costech-fandis-imones-ventiliatoriai.jpg)
Jūs turite būti prisijungę
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją
please use latin characters
Technical data
• T – Connector power supply terminal
• W – Cable power supply terminal
• Ball bearing
• Operation temperature –20 - +70C
• life time (@+40C, 65%humidity) 70 000h
Table. Compact ventilators DC
Type | Voltage [V DC] |
Zakres Voltage wej. [V DC] |
Power [W] |
Speed [turn/min.] |
Noise level [dB] |
Pressure [Pa] |
Efficiency [m3/h] |
Dimension A [mm] |
Dimension B [mm] |
Dimension C [mm] |
---|---|---|---|---|---|---|---|---|---|---|
D08A05HWBA00 | 24 | 17…27 | 3.84 | 3100 | 34.40 | 40.60 | 67.30 | 80 | 71.5 | 25 |
D09A05HWBZ00 | 24 | 17…27 | 3.60 | 2900 | 31.30 | 33.20 | 74 | 92 | 82.5 | 25 |
D12B05HWBZ00 | 24 | 17...27 | 7.68 | 2800 | 42.80 | 66.12 | 178 | 120 | 105 | 38 |
Technical data
• T – Connector power supply terminal
• W – Cable power supply terminal
• Ball bearing
• Operation temperature –20 - +70C
• life time (@+40C, 65%humidity) 40 000h
Table. Compact ventilators AC
Type | Voltage [V DC] |
Frequency [V DC] |
Power [W] |
Speed [turn/min.] |
Noise level [dB] |
Pressure [Pa] |
Efficiency [m3/h] |
Dimension A [mm] |
Dimension B [mm] |
Dimension C [mm] |
---|---|---|---|---|---|---|---|---|---|---|
A08B23SWBF00 | 230 | 50 | 9 | 2600 | 33 | 35 | 35 | 80 | 71.5 | 25 |
A09A23STBY00 | 230 | 50 | 12 | 2700 | 34 | 50 | 55 | 92 | 82.5 | 25 |
A09B23SWBY00 | 230 | 50 | 13 | 2800 | 38 | 51 | 76 | 92 | 82.5 | 38 |
A12A23STBY00 | 230 | 50 | 12 | 2600 | 39 | 66.70 | 110 | 120 | 105 | 25 |
A12B12HTBW00 | 115 | 50 | 17 | 2900 | 48 | 75 | 167 | 120 | 105 | 38 |
A12B23STBW00 | 230 | 50 | 22 | 2700 | 44 | 82 | 165 | 120 | 105 | 38 |
A12B23HTBMT0 Zakres temp pracy -40°C…90°C |
230 | 50 | 18 | 2700 | 42 | 64 | 150 | 120 | 105 | 38 |
A12B23HWBWF0 Wersja IP55 |
230 | 50 | 23 | 2650 | 43 | 66 | 150 | 120 | 105 | 38 |
A17T23SWBM00 | 230 | 50 | 34 | 2500 | 50 | 150 | 300 | 172 | 162 | 55 |
C18C23HTBF00 | 230 | 50 | 29 | 2800 | 50 | 150 | 330 | 172 | 162 | 51 |
//
