DOL 20R talpinis jutiklis

DOL 20R - Capacitive Sensor

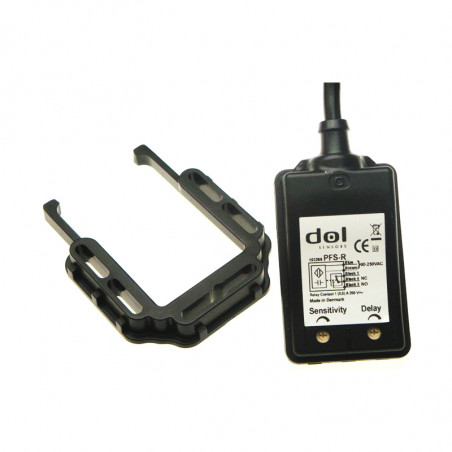

Product DOL 20R

  • The capacitive sensor is designed for general detection of solid and loose materials. The sensor has potential-free relay contacts with a switch function.
  • The product is intended for contactor operation, but will be well suited for a number of other agricultural and industrial applications.

Field of application:

  • Level control in hoppers, pans, silos and containers.
  • Control of poultry feeding lines

Funkctionality:

  • The sensor sensitivity can be fixed or adjustable trimmed to match various types of feed.
  • The sensor can be mounted on the outside of non-metal hoppers. Measure through plastic materials.
  • Customer needs can be implement i.e.:
    • Delay, avoid short motor cycling, can be fixed or adjustable trimmed.
    • Max. run timer.

ILLUSTRATION OF SENSOR INSTALLATION – EX. HOPPER APPLICATION WITH MOTOR CONNECTED TO NO (OFF DELAY)

przekaźnik aktywny Przekaźnik w pozycji domyślnej
Relay activated Relay in default position

When the hopper is empty, a timer starts and after a fixed delay the sensor switches ON. When the hopper has been refilled, the sensor switches OFF according to the OFF-delay.

LED indication:

LED OFF Relay in default position (NO) - Output ON

LED flashing Relay in default position and delay running

LED ON Relay activated (NC) – output OFF

Specifications

Relay


Rated voltage (Ue)
Frequency

90 … 250 VAC

50-60 Hz

Consumption (max.)

0,9W; 230 VAC

Rated Relay current @ 250VAC

0,5A RMS,Inductive

1A RMS, Resistive

Time delay at start-up

<300ms

Time delay OFF

0-600s

Time delay ON

1s

Indication for output ON (if installed)

Yellow LED

Operating distance (Sn)

Adjustable 0 … 12mm

Hysteresis (H)

8-10%

Temperature, operation

-20 … 70°C

Temperature, storage

-30 do 80°C

Degree of protection

IP67, NEMA 4

Cable length

2m

Cable dimensions

5x0.5mm2

Frame for fixing sensor

Included

Approvals

CE, C-UL



DIAGRAM SHOWING ACTIVATED SENSOR OR POWERLESS

Schemat połaczeń
