Gamintojas: METCASE

Valdymo dėžutė Datamet

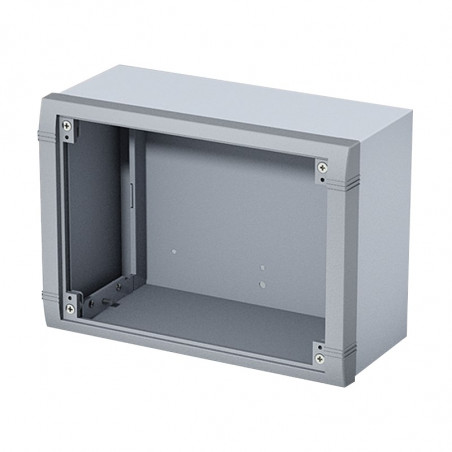

Datamet Wall Mount Enclosures
Modern aluminium enclosures designed for indoor applications. Provide total access to the electronics during installation on the wall. Stylish design with die cast front bezel, top cover and ‘L’ shape rear panel. Front panels and internal mounting plates ordered separately.

Supply
1)Top cover
2)Rear panel
3)Front bezel
4)M4 x 16 mm (x4)
5)M4 x 6 mm (x2)
6)M3 x 8 mm (x4)
7)*Front panel * Accessories
Standardowe kolory
Dimensions and drawings Datamet
Datamet


Part No. Version Colours W H D A
Front Panel		 B
Front Panel
M 58 25 105 S RAL 7035/40 250 (9.84”) 180 (7.08”) 116.5 (4.58”) 220 (8.66”) 159.5 (6.28”)
M 58 25 109 S RAL 9005 250 (9.84”) 180 (7.08”) 116.5 (4.58”) 220 (8.66”) 159.5 (6.28”)
M 58 35 105 M RAL 7035/40 350 (13.78”) 250 (9.84”) 116.5 (4.58”) 320 (12.59”) 229.5 (9.03”)
M 58 35 109 M RAL 9005 350 (13.78”) 250 (9.84”) 116.5 (4.58”) 320 (12.59”) 229.5 (9.03”)
M 58 40 105 L RAL 7035/40 400 (15.74”) 300(11.81”) 116.5 (4.58”) 370 (14.56”) 279.5 (11.00”)
M 58 40 109 L RAL 9005 400 (15.74”) 300(11.81”) 116.5 (4.58”) 370 (14.56”) 279.5 (11.00”)


Front Panel


Part No. Version A B
M 58 00 025 S 220 (8.66”) 159.5 (6.28”)
M 58 00 035 M 320 (12.59”) 229.5 (9.03”)
M 58 00 040 L 370 (14.56”) 279.5 (11.00”)


Mounting Plate Kit
Part No. Version A B
M 58 04 125 S 175 (6.89”) 120 (4.72”)
M 58 04 135 M 275 (10.82”) 190 (7.48”)
M 58 04 140 L 325 (12.79”) 240 (9.44”)
