Dėžutė ant stalo ir prie sienos TOPTEC

Plastic casings

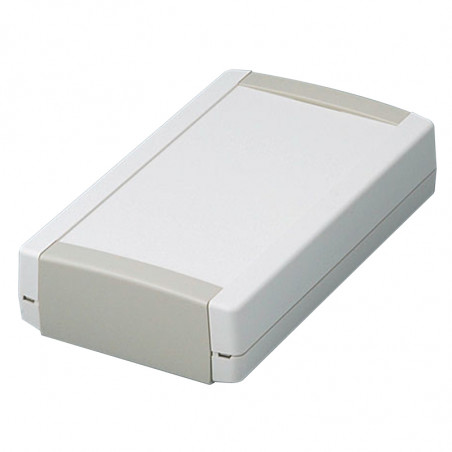

 TOPTEC casing  for table and wall assembly



Construction

Assembly slide for PCB are in the upper and bottom part(despite TPTEC 102 - only in bottom part)



Assembly

Both walls insert from side into bottom part, put on with upper part and connect with front panel.



Material:                                     Hit resistant polystyrene (UL 94 HB)

Colours:                                       bottom and upper part white grey - RAL 9002,

                                                  front wall - grey - RAL 7032,

                                                  fractured surface

Delivery range:                       1 bottom and upper part, 2 front panels

Execution:                                I) without ventilation gaps

                                                  II) with ventilation gaps









Dimensions mm



Internal dimensions mm







Producer number

A

B

C

Execution

a

b

c

Catalogue number





TOPTEC, high model





















B 10 40 365

102

54

30

I

97

47,5

20

A-O-X-014474





B 10 50 365

123

68

45

I

118

60,5

34,1

A-O-X-014475





B 10 60 365

154

84

56

I

149

76

44,2

A-O-X-014477





B 10 70 365

194

115

68

I

189

106

54,2

A-O-X-014479



























TOPTEC,low model





















B 10 55 365

123

68

30

I

118

60,6

19,1

A-O-X-014476





B 10 65 365

154

84

38

I

149

75,6

26,2

A-O-X-014478



























Accessories





















B 13 50 028

Plastic wall striper for 123 mm versions

A-O-X-014480





A 92 07 150

casing foot, self glued,  set of 2 pieces

A-O-X-014417
