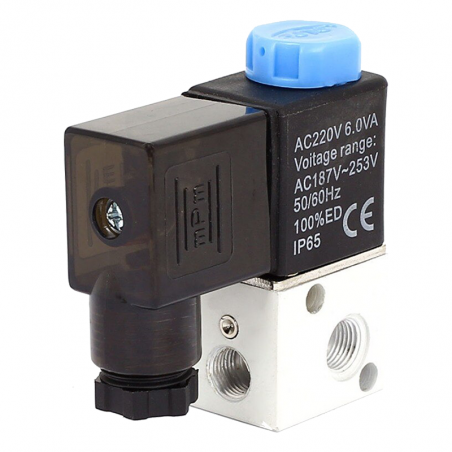

Elektromagnetinis vožtuvas su rite
  • Elektromagnetinis vožtuvas su rite

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: AirTAC

Elektromagnetinis vožtuvas su rite

Characteristic
- Valve controlled with coil, internally controlled, low power consumption, big air flow.
- Excellent leak tightness, fast reaction, small dimensions, small weight, easy to assemble.
- Long lifetime (more than 30.000.000 cycles ), small friction, start at low pressure.
- Doesn't require lubrication.
- Arbitrary assemble position.
- Coil IP65 with plug DIN


Series 3V1 3V100 3V200 3V300 4V100 4V200 5SV200 4V300 5SV300 4V400 5SV400 4M100 4M200 4M300
Medium Air
Control 3V1: bezspośrednie          Inne: wewnętrznie sterowane
Terminal M5  1/8" 1/8"  1/4" 1/8"  1/4" 1/4"  3/8" 1/8"  1/4" 1/8"  1/4" 1/4"  3/8" 1/2" 1/8"  1/4" 1/8"  1/4" 1/4"  3/8"
Type 3/2 5/2 and 5/3 5/2
Temperature -20 - +70°C
Lubrication N/A
Operation pressure 1.5~8.0bar (0.15~0.8MPa) (21~114psi)
Max pressure 12.0bar (1.2MPa) (170psi)
Max frequency 5 cycles/sec
Coil protection IP65 (DIN 40050)
Connection DIN
Insulation Class B
Min reaction time 0.05 s
