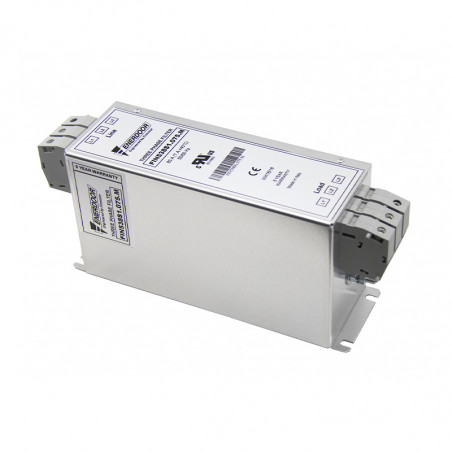

Trys fazės filtrai FIN538S1 serija
  • Trys fazės filtrai FIN538S1 serija

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Enerdoor

Trys fazės filtrai FIN538S1 serija

Three phase filter series FIN538s1

Electric characteristics:
Nominal Voltage 0/600V AC - 50/60 Hz
Phase to phase test voltage
Phase to ground test voltage		 2400 VDC (2s)
3200 VDC (2s)
Climatic class -40/+85oC


Technical Specifications

FIN538S1 IN
[A]		 ∑Cx [nF]
±5%		 Cy1[nf]
±5%		 Cy2[nF]
±5%		 L1(mH)
±10%		 Straty mocy
 [W]

.007.M

 8 (7) 20 1000 1000 1.5 3

.016.M

 18 (16) 20 1000 1000 1.5 4

.030.M

 34 (30) 20 1000 1000 1.4 10

.042.M

 47 (42) 20 1000 1000 1.3 18

.055.M

 60 (55) 20 1000 1000 1.2 23

.075.M

 83 (75) 60 1000 1000 1.1 37

.100.M

 110 (100) 60 1000 1000 1.1 52

.130.M

 142 (130) 60 1000 1000 1 65

.180.M

 200 (180) 60 1000 1000 1 77

.250.V

 272 (250) 60 1000 1000 0.7 80

.280.V

 290 (280) 60 1000 1000 0.7 80

.280.BC

 297 (280) 60 1000 1000 0.7 80

.320.BC

 330 (320) 60 1000 1000 0.7 80

.360.BC

 390 (360) 60 1000 1000 0.6 105

.400.BC

 435 (400) 60 1000 1000 0.6 110

.500.BC

 545 (500) 60 1000 1000 0.55 102

.600.BC

 654 (600) 60 1000 1000 0.55 108

.750.BC

 800 (750) 60 1000 1000 0.5 96

.900.BC

 940 (900) 60 1000 1000 0.5 80

.1000.BC

 1050 (1000) 60 1000 1000 0.45 115

.1250.BC

 1290 (1250) 60 1000 1000 0.45 101

.1500.BC

 1550 (1500) 60 1000 1000 0.4 120

.1600.BC

 1650 (1600) 60 1000 1000 0.4 130

.1750.BC

 1800 (1750) 60 1000 1000 0.4 135

.2000.BC

 2040 (2000) 60 1000 1000 0.38 138

.2250.BC

 2290 (2250) 60 1000 1000 0.38 145

.2500.BC

 2535 (2500) 60 1000 1000 0.38 170

.3000.BC

 3050 (3000) 60 1000 1000 0.38 180
Total leakage current at 230 V phase to ground 50 Hz / 40°C Nominal <10mA,


Typical attenuation

Filtry trójfazowe seria FIN538s1 - charakterystyka


Electric diagram

Filtry trójfazowe seria FIN538s1 - schemat



Dimensions

FIN538S1

 A B V V1 F H I L N d Weight
[Kg]		 Case

.007.M/.016.M

 100 90 22 16 5.4 250 220 7.5 60 M6 1.3 1

.030.M

 100 90 22 16 5.4 250 220 7.5 60 M6 1.3 1

.042.M/.055.M

 100 90 22 35 5.4 250 220 7.5 60 M6 1.5 2

.075.M

 135 85 22 39 6.5 270 240 7.5 60 M6 2.2 3

.100.M

 155 90 24 43 6.5 270 240 7.5 65 M10 3.2 4

.130.M

 155 90 24 43 6.5 270 240 7.5 65 M10 3.2 4

.180.M

 170 125 26 51 6.5 380 350 7.5 102 M10 5.1 5


Connection

Rigid Cable
[mm2]		 Flexible Cable
[mm2]		 Torque
[Nm]
0.2 - 10 0.2 - 6 1,2
0.2 - 10 0.2 - 6 1,2
0.5 - 16 0.5 - 10 1,8
6 - 35 4 - 25 4,5
10 - 50 10 - 50 4
10 - 50 10 - 50 4
35 - 95 35 - 95 20


Dimensions

FIN538S1

 A B C d2 d3 V F H I L N P S Weight
[Kg]		 Case

.250.V/.280.V

 90 220 120 - - 30 6.5 356 320 340 95 70 60 9 6

.280.BC/.320.BC

 90 220 120 6 20 42 6.5 356 320 340 95 70 55 9 7

.360.BC/.400.BC

 130 230 150 10 25 42 6.5 420 380 400 100 100 85 13.5 8

.500.BC

 130 230 150 10 25 42 6.5 420 380 400 100 100 85 13.5 8

.600.BC/.750.BC

 130 230 150 15 30 48 6.5 510 450 480 100 100 85 19 9

.900.BC

 160 250 140 20 40 94 8.5 510 450 480 100 110 110 27 10

.1000.BC

 160 250 140 20 40 94 8.5 510 450 480 100 110 110 27 10

.1250.BC

 160 250 140 20 40 94 8.5 510 450 480 100 110 110 27 10

.1500.BC

 180 300 200 20 60 97 8.5 560 500 530 125 130 117 30 11

.1600.BC

 180 300 200 20 60 97 8.5 560 500 530 125 130 117 30 11

.1750.BC

 180 300 200 20 60 97 8.5 560 500 530 125 130 117 30 11

.2000.BC

 225 350 200 25 80 100 8.5 610 550 580 150 - 112.5 68 12

.2250.BC

 225 350 200 25 80 100 8.5 610 550 580 150 - 112.5 68 12

.2500.BC

 225 350 200 25 80 100 8.5 610 550 580 150 - 112.5 68 12

.3000.BC

 225 350 200 25 80 100 8.5 610 550 580 150 - 112.5 68 12


Dimensions

Filtry trójfazowe seria FIN538s1 - wymiary
