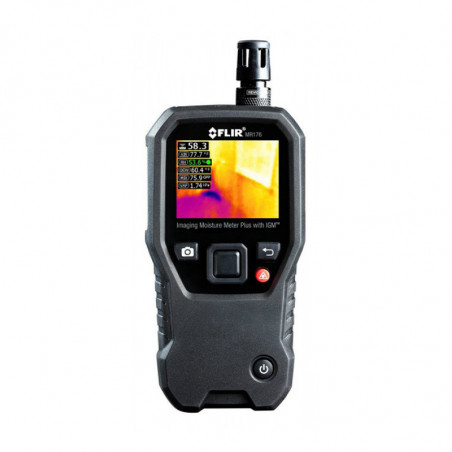

FLIR MR176 - "Thermovision" drėgmės matuoklis PLUS su IGM ™ technologija

FLIR MR176

Imaging Moisture Meter Plus with IGM™

The FLIR MR176 Imaging Moisture Meter Plus with IGM™ is an all-in-one tool equipped with a built-in thermal camera that can show you exactly where to measure moisture. Featuring Infrared Guided Measurement (IGM) technology, the MR176 helps you quickly scan and target moisture issues, visually guiding you to the spot where you can confidently take measurements and analyze readings. An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive or intrusive measurements. Coupled with a field-replaceable temperature and relative humidity sensor, and automatically calculated environmental readings, the MR176 delivers added convenience and ease of use, producing the right measurements — faster.



Visually identify hidden moisture with IGM.

Easily investigate moisture issues and troubleshoot quickly
  • An 80 x 60, 4800-pixel Lepton® thermal imager powers IGM technology, visually indicating potential moisture areas via the color display
  • Customize thermal images: select which measurements are integrated (moisture, temperature, relative humidity, dew point, vapor pressure, mixing ratio), and choose from one of four color palettes (Iron, Rainbow, Ice, Greyscale); a lock-image setting prevents extreme hot and cold temperatures from interfering with images while scanning for issues
  • Equipped with a laser and cross hair to easily reference the exact location of the potential moisture issue seen in the thermal image

Specifications

FLIR MR176: Imaging Moisture Meter
Imaging Detector FLIR Lepton microbolometer
Image Calibration Automatic with manual lock scale option
Thermal Image Resolution (W x H) 4800 pikseli (80 x 60)
Spectral response 8 to 14 μm
Field of view (W x H) 51° × 38°
Sensitivity < 150 mK
Detection Limit
(Wet Area Detection @ 32ft (10m)		 49 cm2
Image Update Speed Frequency 9Hz
Thermal Image Palettes Iron, Rainbow, Ice, Greyscale
Thermal Image Minimum Focus Distance 10 cm
Moisture Measurement Range Basic Accuracy
Pin Moisture od 7% do 30% ±1,5% MC
od 30% do 100% Reference only
Pin Moisture Groups 9 Material Groups
Pinless Moisture Range 0 to 100 Relative
Pinless Measurement Depth 19 mm Max
Measurement Resolution 0,1
Response Time Pin Modestykowym 100 ms
Czas odpowiedzi przy pomiarze sondą 750 ms
Environmental Measurement Range Basic Accuracy
Relative Humidity 0 to 100% 2,5% WW
Air temperature 0 to 50°C ±0,6°C
Dew Point -30 to 50°C ±1,0°C
Vapor Pressure 0,0 to 12,0 kPa ±0,05 kPa
Mixing Ratio 0 to 560 GPP (0,0 to 80,0 g/kg) ±2GPP (0,25 g/kg)
General information
Display Type QVGA (320 x 240 pixel) 2.3” color TFT graphical display
Saved Image File Format BMP with measurement values overlaid
Stored Image Capacity 9999 images
Laser Orientation Single laser pointer to center of thermal image
Continuous Run Time 18 hours max
Typical Usage* 4 work weeks
Battery 3,7V, 3000 Li-ion rechargeable via micro USB
Certification Standards EN 61326 (EMC), EN 60825-1 Klasa 2 (Laser)
Agency Approvals CE, FCC Klasa B
Includes MR01 Replaceable Temperature and Relative Humidity Sensor, MR02 Standard Pin Probe, Quick Start Guide, International USB Charger, USB Cable
