Hibridinis vairuotojas moduliai IGBT
  • Hibridinis vairuotojas moduliai IGBT

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Mitsubishi

Hibridinis vairuotojas moduliai IGBT

TypeVcc
[V]		VEE
[V]		Output current
[A]		Max. switching frequency
[kHz]		Built in converter DC-DCUsageModule series

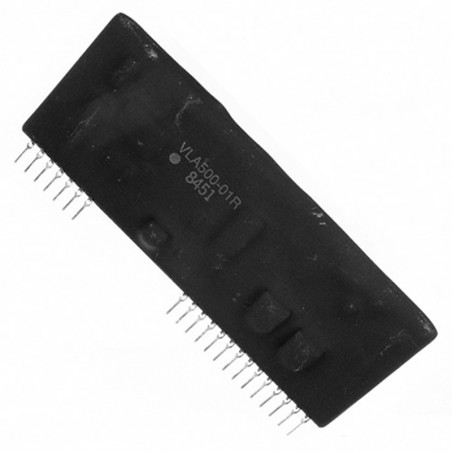

VLA500-01R 18 -12 ±12 do 20 Tak for modules 600V up to 800A
for modules 1200V up to 1400A		 for modules NF and A series
VLA500K-01R 18 -12 ±12 do 20 Tak for modules 600V up to 600A
for modules 1200V up to 1400A
for modules 1700V up to 1000A		 for modules NF
for modules NF
for modules A-l 700V series
VLA502-01R 18 -12 ±12 do 60 Tak all modules 600V and 1200V NFH for modules NFH series
VLA503-01R 18 -15 ±5 do 20 Nie for modules 600V up to 400A
for modules 1200V and 1400V up to 200A		 for modules H, NF, A, U series
M57962AL-01R
VLA504-01R 18 -15 ±2 do 20 Nie for modules 600V up to 200A
for modules 1200V and 1400V up to 100A		 for modules H, NF, A, U series
M57959AL-01R
VLA507-01R 18

do 20

do 30

 Nie for modules 600V up to 600A
for modules 1200V up to 150A
for modules 1200V up to 150A		 for modules NF series
for modules NFH series
VLA513-01R 18 -12 ±5

do 20

do 30

do 60

 Nie for modules 600V up to 600A
for modules 1200V up to 400A
for modules 600V up to 600A
for modules 1200V up to 600A
for modules 600V up to 200A
for modules 1200V up to 200A		 for modules NF series
for modules NFM series
for modules NFH series
M57161L 17 -5,5 ±7 do 20 Tak for modules 600V up to 600A
for modules 1200V up to 400A		 for modules F and NF series
M57160AL 18 -15 ±5 do 20 Nie for modules 600V up to 600A
for modules 1200V up to 400A		 for modules F and NF series

STEROWNIKI HYBRYDOWE up to MODUŁÓW IGBT - schemat

STEROWNIKI HYBRYDOWE up to MODUŁÓW IGBT - schemat
