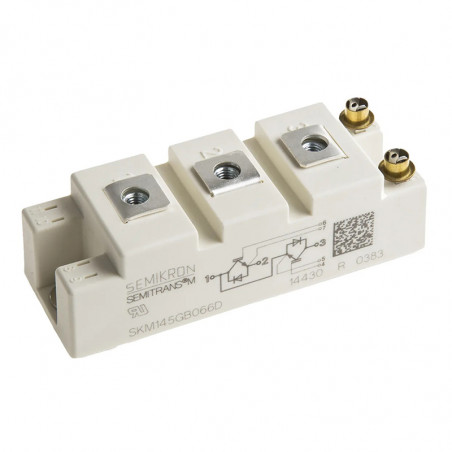

![IGBT moduliai - SEMITRANS IGBT moduliai - SEMITRANS](https://www.dacpol.eu/7314-large_default/igbt-moduliai-semitrans.jpg)
![IGBT moduliai - SEMITRANS IGBT moduliai - SEMITRANS](https://www.dacpol.eu/7314-large_default/igbt-moduliai-semitrans.jpg)
Jūs turite būti prisijungę
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją
please use latin characters
Type
|
IC
@TC=25°C A
|
ICnom
A
|
VCE(sat)
@25°C typ. V
|
(Eon+Eoff)
@125°C typ. mJ
|
Rth(j-c)
per IGBT K/W
|
Case
|
---|---|---|---|---|---|---|
600 V |
||||||
Trench |
||||||
SKM 145GB066D |
195 | 150 | 1,45 | 14 | 0,3 | 2 |
SKM 195GB066D |
265 | 200 | 1,45 | 22 | 0,22 | 2 |
SKM 300GB066D |
390 | 300 | 1,45 | 19 | 0,15 | 3 |
SKM 400GB066D |
500 | 400 | 1,45 | 24 | 0,12 | 3 |
SKM 600GB066D |
760 | 600 | 1,45 | 37 | 0,08 | 3 |
SKM 200GARL066T |
280 | 200 | 1,45 | - | 0,21 | 5 |
SKM 300GARL066T |
400 | 300 | 1,45 | 10,96 | 0,15 | 5 |
SKM 150MLI066T |
200 | 150 | 1,45 | 5,4 | 0,29 | 5 |
SKM 200MLI066T |
280 | 200 | 1,45 | - | 0,21 | 5 |
SKM 300MLI066T |
400 | 300 | 1,45 | 10,96 | 0,15 | 5 |
Standard |
||||||
SKM 50GB063D |
70 | 50 | 2,1 | 4,3 | 0,5 | 2 |
SKM 75GB063D |
100 | 75 | 2,1 | 5,5 | 0,35 | 2 |
SKM 100GB063D |
130 | 100 | 2,1 | 7 | 0,27 | 2 |
SKM 200GB063D |
260 | 200 | 2,1 | 18,5 | 0,14 | 3 |
SKM 300GB063D |
400 | 300 | 2,1 | 27 | 0,09 | 3 |
SKM 100GD063DL |
130 | 100 | 2,1 | 7 | 0,27 | 6 |
SKM 75GAL063D |
100 | 75 | 2,1 | 5,5 | 0,35 | 2 |
SKM 300GAL063D |
400 | 300 | 2,1 | 27 | 0,09 | 3 |
SKM 75GAR063D |
100 | 75 | 2,1 | 5,5 | 0,35 | 2 |
SKM 300GAR063D |
400 | 300 | 2,1 | 27 | 0,09 | 3 |
Type
|
IC
@TC=25°C A
|
ICnom
A
|
VCE(sat)
@25°C typ. V
|
(Eon+Eoff)
@150°C typ. mJ
|
Rth(j-c)
per IGBT K/W
|
Case
|
|
---|---|---|---|---|---|---|---|
1200 V |
|||||||
Fast IGBT 4 |
|||||||
<span >SKM 50GB12T4 |
81 | 50 | 1,85 | 10 | 0,53 | 2 | |
<span >SKM 75GB12T4 |
115 | 75 | 1,85 | 17,9 | 0,38 | 2 | |
<span >SKM 100GB12T4 |
160 | 100 | 1,8 | 25,2 | 0,27 | 2 | |
<span >SKM 100GB12T4G |
154 | 100 | 1,85 | 24,7 | 0,29 | 3 | |
<span >SKM 150GB12T4 |
232 | 150 | 1,8 | 35 | 0,19 | 2 | |
<span >SKM 150GB12T4G |
223 | 150 | 1,85 | 32,8 | 0,2 | 3 | |
<span >SKM 200GB12T4 |
314 | 200 | 1,8 | 41 | 0,14 | 3 | |
<span >SKM 300GB12T4 |
422 | 300 | 1,85 | 56 | 0,11 | 3 | |
SKM 400GB12T4 |
618 | 400 | 1,8 | 75 | 0,072 | 3 | |
SKM 150GAL12T4 |
232 | 150 | 1,8 | 35 | 0,19 | 2 | |
SKM 200GAL12T4 |
314 | 200 | 1,8 | 41 | 0,14 | 3 | |
SKM 300GAL12T4 |
422 | 300 | 1,85 | 56 | 0,11 | 3 | |
SKM 400GAL12T4 |
618 | 400 | 1,8 | 75 | 0,072 | 3 | |
SKM 150GAR12T4 |
232 | 150 | 1,8 | 35 | 0,19 | 2 | |
SKM 400GAR12T4 |
618 | 400 | 1,8 | 75 | 0,072 | 3 | |
SKM 300GA12T4 |
422 | 300 | 1,85 | 49,4 | 0,11 | 4 | |
SKM 400GA12T4 |
618 | 400 | 1,8 | 72 | 0,072 | 4 | |
SKM 600GA12T4 |
916 | 600 | 1,8 | 137 | 0,049 | 4 | |
IGBT 4 |
|||||||
SKM 200GB12E4 |
314 | 200 | 1,8 | 48 | 0,14 | 3 | |
SKM 300GB12E4 |
422 | 300 | 1,85 | 66 | 0,11 | 3 | |
SKM 400GB12E4 |
618 | 400 | 1,8 | 88 | 0,072 | 3 | |
SKM 200GAL12E4 |
314 | 200 | 1,8 | 48 | 0,14 | 3 | |
SKM 300GAL12E4 |
422 | 300 | 1,85 | 66 | 0,11 | 3 | |
SKM 400GAL12E4 |
618 | 400 | 1,8 | 88 | 0,072 | 3 | |
SKM 400GAR12E4 |
618 | 400 | 1,8 | 88 | 0,072 | 3 | |
SKM 300GA12E4 |
422 | 300 | 1,85 | 58 | 0,11 | 4 | |
SKM 400GA12E4 |
618 | 400 | 1,8 | 87 | 0,072 | 4 | |
SKM 600GA12E4 |
916 | 600 | 1,8 | 158 | 0,049 | 4 |
Type
|
IC
@TC=25°C A
|
ICnom
A
|
VCE(sat)
@25°C typ. V
|
(Eon+Eoff)
@125°C typ. mJ
|
Rth(j-c)
per IGBT K/W
|
Case
|
|
---|---|---|---|---|---|---|---|
Ultrafast |
|||||||
SKM 100GB125DN |
100 | 75 | 3,3 | 12,5 | 0,18 | 2 N | |
SKM 200GB125D |
200 | 150 | 3,3 | 14 | 0,09 | 3 | |
SKM 300GB125D |
300 | 200 | 3,3 | 16 | 0,08 | 3 | |
SKM 400GB125D |
400 | 300 | 3,3 | 35 | 0,05 | 3 | |
SKM 200GAL125D |
200 | 150 | 3,3 | 14 | 0,09 | 3 | |
SKM 400GAL125D |
400 | 300 | 3,3 | 35 | 0,05 | 3 | |
SKM 200GAR125D |
200 | 150 | 3,3 | 14 | 0,09 | 3 | |
SKM 400GAR125D |
400 | 300 | 3,3 | 35 | 0,05 | 3 | |
SKM 600GA125D |
580 | 400 | 3,3 | 30 | 0,04 | 4 | |
SKM 800GA125D |
760 | 600 | 3,2 | 136 | 0,03 | 4 | |
Trench |
|||||||
SKM 195GB126D |
220 | 150 | 1,7 | 40,5 | 0,16 | 2 | |
SKM 200GB126D |
260 | 150 | 1,7 | 18 | 0,13 | 3 | |
SKM 300GB126D |
310 | 200 | 1,7 | 54 | 0,12 | 3 | |
SKM 400GB126D |
470 | 300 | 1,7 | 77 | 0,08 | 3 | |
SKM 600GB126D |
660 | 400 | 1,7 | 103 | 0,06 | 3 | |
SKM 195GAL126D |
220 | 150 | 1,7 | 40,5 | 0,16 | 2 | |
SKM 200GAL126D |
260 | 150 | 1,7 | 18 | 0,13 | 3 | |
SKM 400GAL126D |
470 | 300 | 1,7 | 77 | 0,08 | 3 | |
SKM 600GAL126D |
660 | 400 | 1,7 | 103 | 0,06 | 3 | |
SKM 600GA126D |
660 | 400 | 1,7 | 103 | 0,06 | 4 | |
SKM 800GA126D |
960 | 600 | 1,7 | 160 | 0,04 | 4 | |
SPT |
|||||||
SKM 75GB128D |
100 | 50 | 1,9 | 14 | 0,3 | 2 | |
SKM 100GB128D |
145 | 75 | 1,9 | 16,5 | 0,21 | 2 | |
SKM 145GB128D |
190 | 100 | 1,9 | 22 | 0,16 | 2 | |
SKM 150GB128D |
200 | 100 | 1,9 | 19 | 0,15 | 3 | |
SKM 200GB128D |
300 | 150 | 1,9 | 33 | 0,1 | 3 | |
SKM 300GB128D |
370 | 200 | 1,9 | 44 | 0,08 | 3 | |
SKM 400GB128D |
565 | 300 | 1,9 | 63 | 0,06 | 3 | |
SKM 145GAL128D |
190 | 100 | 1,9 | 22 | 0,16 | 2 | |
SKM 300GAL128D |
370 | 200 | 1,9 | 44 | 0,08 | 3 | |
SKM 400GAL128D |
565 | 300 | 1,9 | 63 | 0,06 | 3 | |
SKM 145GAR128D |
190 | 100 | 1,9 | 22 | 0,16 | 2 | |
SKM 400GAR128D |
565 | 300 | 1,9 | 63 | 0,06 | 3 | |
SKM 300GA128D |
370 | 200 | 1,9 | 43 | 0,08 | 4 | |
SKM 400GA128D |
565 | 300 | 1,9 | 64 | 0,06 | 4 | |
SKM 500GA128D |
700 | 400 | 1,9 | 85 | 0,05 | 4 | |
Standard |
|||||||
SKM 50GB123D |
50 | 50 | 2,5 | 11,5 | 0,4 | 2 | |
SKM 75GB123D |
75 | 50 | 2,5 | 13 | 0,27 | 2 | |
SKM 100GB123D |
100 | 75 | 2,5 | 18 | 0,18 | 2 | |
SKM 145GB123D |
145 | 100 | 2,5 | 28 | 0,15 | 2 | |
SKM 150GB123D |
150 | 100 | 2,5 | 24 | 0,15 | 3 | |
SKM 200GB123D |
200 | 150 | 2,5 | 41 | 0,09 | 3 | |
SKM 300GB123D |
300 | 200 | 2,5 | 54 | 0,08 | 3 | |
SKM 400GB123D |
400 | 300 | 2,5 | 78 | 0,05 | 3 | |
SKM 22GD123D |
25 | 15 | 2,5 | 3,4 | 0,86 | 6 | |
SKM 40GD123D |
40 | 25 | 2,5 | 6,1 | 0,56 | 6 | |
SKM 75GD123D |
75 | 50 | 2,5 | 13 | 0,32 | 6 | |
SKM 40GDL123D |
40 | 25 | 2,5 | 6,1 | 0,56 | 6 | |
SKM 75GD123DL |
75 | 50 | 2,5 | 13 | 0,32 | 6 | |
SKM 75GDL123D |
75 | 50 | 2,5 | 13 | 0,32 | 6 | |
SKM 50GAL123D |
50 | 50 | 2,5 | 11,5 | 0,4 | 2 | |
SKM 75GAL123D |
75 | 50 | 2,5 | 13 | 0,27 | 2 | |
SKM 100GAL123D |
100 | 75 | 2,5 | 18 | 0,18 | 2 | |
SKM 145GAL123D |
145 | 100 | 2,5 | 28 | 0,15 | 2 | |
SKM 150GAL123D |
150 | 100 | 2,5 | 24 | 0,15 | 3 | |
SKM 200GAL123D |
200 | 150 | 2,5 | 41 | 0,09 | 3 | |
SKM 300GAL123D |
300 | 200 | 2,5 | 54 | 0,08 | 3 | |
SKM 75GAR123D |
75 | 50 | 2,5 | 13 | 0,27 | 2 | |
SKM 100GAR123D |
100 | 75 | 2,5 | 18 | 0,18 | 2 | |
SKM 200GAR123D |
200 | 150 | 2,5 | 41 | 0,09 | 3 | |
SKM 300GAR123D |
300 | 200 | 2,5 | 54 | 0,08 | 3 | |
SKM 300GA123D |
300 | 200 | 2,5 | 48 | 0,08 | 4 | |
SKM 400GA123D |
400 | 300 | 2,5 | 78 | 0,04 | 4 | |
SKM 500GA123D |
500 | 400 | 2,5 | 45 | 0,04 | 4s | |
SKM 500GA123DS |
500 | 400 | 2,5 | 45 | 0,04 | 4s |
Type
|
IC
@TC=25°C A
|
ICnom
A
|
VCE(sat)
@25°C typ. V
|
(Eon+Eoff)
@125°C typ. mJ
|
Rth(j-c)
per IGBT K/W
|
Case
|
---|---|---|---|---|---|---|
1700 V |
||||||
Trench |
||||||
SKM 75GB176D |
80 | 50 | 2 | 43 | 0,38 | 2 |
SKM 100GB176D |
125 | 75 | 2 | 72,5 | 0,24 | 2 |
SKM 145GB176D |
160 | 100 | 2 | 98 | 0,19 | 2 |
SKM 200GB176D |
260 | 150 | 2 | 151 | 0,12 | 3 |
SKM 400GB176D |
430 | 300 | 2 | 288 | 0,08 | 3 |
SKM 145GAL176D |
160 | 100 | 2 | 98 | 0,19 | 2 |
SKM 200GAL176D |
260 | 150 | 2 | 151 | 0,12 | 3 |
SKM 400GAL176D |
430 | 300 | 2 | 288 | 0,08 | 3 |
SKM 600GA176D |
660 | 400 | 2 | 410 | 0,04 | 4 |
SKM 800GA176D |
830 | 600 | 2 | 580 | 0,04 | 4 |
