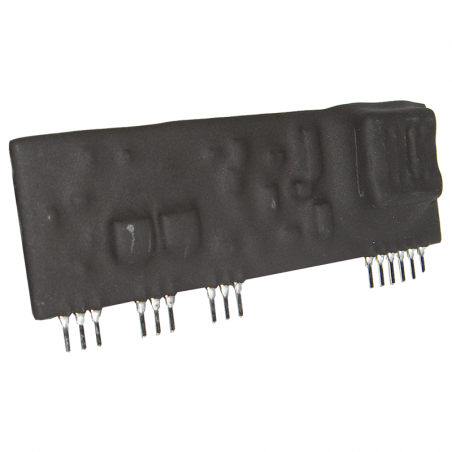

Hibridiniai valdikliai IGBT moduliams
  • Hibridiniai valdikliai IGBT moduliams

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Mitsubishi

Hibridiniai valdikliai IGBT moduliams

Table. Electrical data

TypeVcc
[V]		VEE
[V]		output current
[A]		max frequency
[kHz]		Build in
converter DC-DC		ApplicationModule series

VLA500-01R

 18 -12 ±12 up to 20 Yes
for modules 600V do 800A
for modules 1200V do 1400A
for modules series NF i A

VLA500K-01R

 18 -12 ±12 up to 20 Yes
for modules 600V do 600A
for modules 1200V do 1400A
for modules 1700V do 1000A
for modules series NF
for modules series NF
for modules series A-l 700V

VLA502-01R

 18 -12 ±12 up to 60 Yes
all modules 600V i 1200V NFH
for modules series NFH

VLA503-01R

 18 -15 ±5 up to 20 No
for modules 600V do 400A
for modules 1200V i 1400V do 200A
for modules series H, NF, A, U

M57962AL-01R

VLA504-01R

 18 -15 ±2 up to 20 No
for modules 600V do 200A
for modules 1200V i 1400V do 100A
for modules series H, NF, A, U

M57959AL-01R

VLA507-01R

 18

up to 20

up to 30

 No
for modules 600V do 600A
for modules 1200V do 150A
for modules 1200V do 150A
for modules series NF
for modules series NFH

VLA513-01R

 18 -12 ±5

do 20

do 30

do 60

 No
for modules 600V do 600A
for modules 1200V do 400A
for modules 600V do 600A
for modules 1200V do 600A
for modules 600V do 200A
for modules 1200V do 200A
for modules series NF
for modules series NFM
for modules series NFH

M57161L

 17 -5,5 ±7 up to 20 Yes
for modules 600V do 600A
for modules 1200V do 400A
for modules series F , NF

M57160AL

 18 -15 ±5 up to 20 No
for modules 600V do 600A
for modules 1200V do 400A
for modules series F , NF

Hybrid drivers for IGBT modules obudowa
Hybrid drivers for IGBT modules
