CN SERIJA
  • CN SERIJA

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Crydom

CN SERIJA

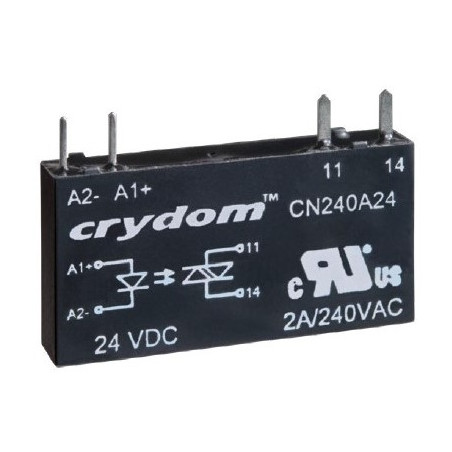

The CN Series of Sensata | Crydom solid-state relays are thin, 5mm wide relays that are perfectly suited for high-density PCB applications. The CN SSRs are designed to be connected to standard industrial relay sockets or soldered directly onto printed circuit boards. They are available in a range of 2 amps at 24 to 280 VAC or 0.1 amp at 0 to 100VDC. These relays are recognized by UL and compliant with CE regulations.

Features

  • 5mm Mini SIP SSR
  • Available in 24 VDC at 3.5A, 48VDC at 100mA, 100VDC at 6A, and 240 VAC at 2A
  • DC control at 5, 24, and 60V
  • UL and cUL recognized at 40 degrees Celsius, 100,000-cycle endurance test
  • CE compliant and RoHS compliant

Applications

  • Automation equipment
  • Testing equipment
  • Packaging equipment
  • Valves and solenoids
  • Vending machines
  • Medical equipment

Product Selection

Control Voltage 3.5 A 100mA 6A 2A
3-12 VDC CN024D05 CN048D05 CN048D05 CN240A05
15-30 VDC CN240A05 CN048D24 CN100D24 CN240A24
38-72 VDC CN024D60 CN048D60 CN240A60


Output Specification

Description CN024Dxx CN048Dxx CN100Dxx CN240Axx
Operating Voltage 0-24 VDC 0-48 VDC 0-100 VDC 24-280 VAC (47-63Hz)
Maximum Load Current at 40 degrees Celsius 3.5A 100mA 6A 2A
Minimum Load Current [mA] 1 1 1 70
Maximum Blocking Voltage 30 VDC 60 VDC 100 VDC 600 VDC
Maximum Surge Current 9 (10ms) 0.3 mA (10ms) 45 (10ms) 115/120 (50/60 Hz, 1 cycle)
Maximum I2t for Turn-On (½ cycle) (50/60Hz) [A2sec] N/A N/A N/A 66/60
Typical Voltage Drop during Operation at Rated Current [V] 0.4 1.0 0.1 1.1 (peak)
Maximum Leakage Current in Off-State at Rated Voltage [mA] 0.001 0.001 0.001 4.0
Maximum PWM Frequency (Hz) 500 500 40 N/A
Minimum dV/dt in Off-State at Maximum Rated Voltage [V/usec] N/A N/A N/A 500
Switching Configuration N.O. (Normally Open) N.O. (Normally Open) N.O. (Normally Open) N.O. (Normally Open)


Input Specification for CN024

Description CN024D05 CN024D24 CN024D60
Control Voltage Range 3-12 VDC 15-30 VDC 38-72 VDC
Minimum Turn-On Voltage 3 VDC 15 VDC 38 VDC
Minimum Turn-Off Voltage 1 VDC 5 VDC 5 VDC
Rated Input Impedance 500 Ohm 3.5K Ohm 20K Ohm
Typical Input Current 10mA at 5 VDC 7mA at 24 VDC 3mA at 60 VDC
Typical Turn-On Time [usec] 120 350 400
Typical Turn-Off Time [usec] 100 80 70


Input Specification for CN048

Description CN024D05 CN024D24 CN024D60
Control Voltage Range 3-12 VDC 15-30 VDC 38-72 VDC
Minimum Turn-On Voltage 3 VDC 15 VDC 38 VDC
Minimum Turn-Off Voltage 1 VDC 5 VDC 5 VDC
Rated Input Impedance 1.25K Ohm 3K Ohm 20K Ohm
Typical Input Current 12mA at 5 VDC 8mA at 24 VDC 3mA at 60 VDC
Typical Turn-On Time [usec] 20 20 20
Typical Turn-Off Time [usec] 130 130 130


Input Specification for CN100

Description CN100D05 CN100D24
Control Voltage Range 3-12 VDC 15-30 VDC
Minimum Turn-On Voltage 3 VDC 15 VDC
Minimum Turn-Off Voltage 1 VDC 5 VDC
Rated Input Impedance 420 Ohm 3K Ohm
Typical Input Current 12mA at 5 VDC 8mA at 24 VDC
Typical Turn-On Time [usec] 400 800
Typical Turn-Off Time [usec] 180 180


Input Specification for CN240

Description CN240A05 CN240A24 CN240A60
Control Voltage Range 3-12 VDC 15-30 VDC 38-72 VDC
Minimum Turn-On Voltage 3 VDC 15 VDC 38 VDC
Minimum Turn-Off Voltage 1 VDC 5 VDC 5 VDC
Rated Input Impedance 240 Ohm 3.5K Ohm 20K Ohm
Typical Input Current 15mA at 5 VDC 6mA at 24 VDC 4mA at 60 VDC
Typical Turn-On Time [usec] ½ cycle ½ cycle ½ cycle
Typical Turn-Off Time [usec] ½ cycle ½ cycle ½ cycle


General Specification

Description Parameters
Dielectric Strength, Input to Output, Base (50/60Hz) 2.5KV
Maximum Capacitance, Output to Input 1.5 pF
Ambient Operating Temperature Range -20 to 80 degrees Celsius
Ambient Storage Temperature Range -20 to 100 degrees Celsius
Weight (Typical) 4.05g
Housing Material UL 94 V0
Overvoltage Category III
Pollution Degree 2
Protection Degree (Encapsulation) IP67
