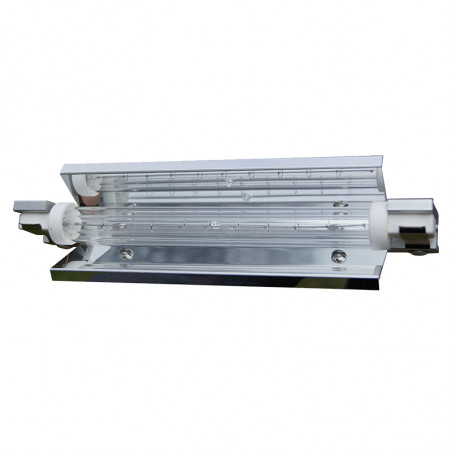

Infraraudonųjų spindulių lempų priedai
  • Infraraudonųjų spindulių lempų priedai

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Dr. Fischer

Infraraudonųjų spindulių lempų priedai

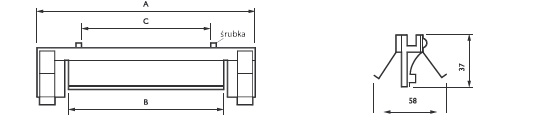

Dimensions [mm]




Reflector Power
[W]		 Application Surface Dimensions
[mm]
A B C

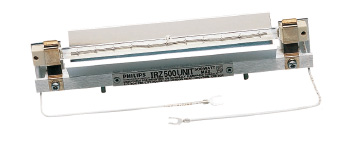

IRZ500 500 IRK13169Z/98 soft 230 170 120
IRZ1000 1000 IRK13195Z/98 IRK13713Z/98 soft 360 300 250

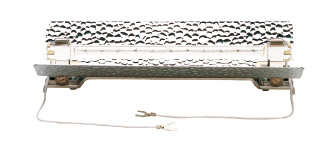

IR3 Reflector




Dimensions [mm]




Reflector Power
[W]		 Application Surface Dimensions
[mm]
A B C
IR3 236*98 500 IRK13169Z/98 crimping 236 196 215
IR3 366*98 2000 IRK13213Z/98F IRK13168Z/98 IRK13195Z/98 IRK13713Z/98 crimping 366 326 345


GRIP FOR RADIATORS „X” AND „X/98”


Dimensions [mm]
 7646/00



GRIP FOR RADIATORS  „Z” AND „Z/98”


Dimensions [mm]
 6707

POWER REGULATOR


RM-1F 30 RM-1FV 18

Technical data

Nominal current RM1F 30 - 30A
RM1FB18 - 18A
Power supply: 230V lub 400V, 50Hz
Usage category AC-51, AC-55a, AC-55b ,AC-56a
Power supply tolerance: +10% + -15%
Power regulation 0÷100%
Control signals: 0÷10V, 4+20mA, external potentiometer, RS485
Thyristor control phase
Control method remote - input control signal
local - button control +/K- or external potentiometer
Visualization: Display LED 2 digits:: power in %
Over voltage protection RC circuit
Short circuit protection ultra fast fuse
Cooling natural
IP: IP20
Insulation voltage 2500V
Impurity level 3
Temperature range 0 + 40°C
Storage temperature -20 + 60°C
Humidity <85%
Height above sea level < 1000 m
Weight 1,2 kg
Dimensions RM1F30 160 x 90 x 110 mm
RM1FB18 160 x 90 x 103 mm
Main circuit clamps screw  M4
mažiau
Skaityk daugiau

Atsiųskite užklausą

Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?

Susisiekite su mumis
KLAUSKITE PRODUKTO close
Dėkojame, kad atsiuntėte žinutę. Atsakysime kuo greičiau.
KLAUSKITE PRODUKTO close
Naršyti
atsiųsti paklausimą

Pridėti į norų sąrašą

tu turi būti prisijungęs





Dimensions [mm]




Reflector Power
[W]		 Application Surface Dimensions
[mm]
A B C
IRZ500 500 IRK13169Z/98 soft 230 170 120
IRZ1000 1000 IRK13195Z/98 IRK13713Z/98 soft 360 300 250

IR3 Reflector




Dimensions [mm]




Reflector Power
[W]		 Application Surface Dimensions
[mm]
A B C
IR3 236*98 500 IRK13169Z/98 crimping 236 196 215
IR3 366*98 2000 IRK13213Z/98F IRK13168Z/98 IRK13195Z/98 IRK13713Z/98 crimping 366 326 345


GRIP FOR RADIATORS „X” AND „X/98”


Dimensions [mm]
 7646/00



GRIP FOR RADIATORS  „Z” AND „Z/98”


Dimensions [mm]
 6707

POWER REGULATOR


RM-1F 30 RM-1FV 18

Technical data

Nominal current RM1F 30 - 30A
RM1FB18 - 18A
Power supply: 230V lub 400V, 50Hz
Usage category AC-51, AC-55a, AC-55b ,AC-56a
Power supply tolerance: +10% + -15%
Power regulation 0÷100%
Control signals: 0÷10V, 4+20mA, external potentiometer, RS485
Thyristor control phase
Control method remote - input control signal
local - button control +/K- or external potentiometer
Visualization: Display LED 2 digits:: power in %
Over voltage protection RC circuit
Short circuit protection ultra fast fuse
Cooling natural
IP: IP20
Insulation voltage 2500V
Impurity level 3
Temperature range 0 + 40°C
Storage temperature -20 + 60°C
Humidity <85%
Height above sea level < 1000 m
Weight 1,2 kg
Dimensions RM1F30 160 x 90 x 110 mm
RM1FB18 160 x 90 x 103 mm
Main circuit clamps screw  M4
