Gamintojas: Lumberg

Jutiklių dėžutės

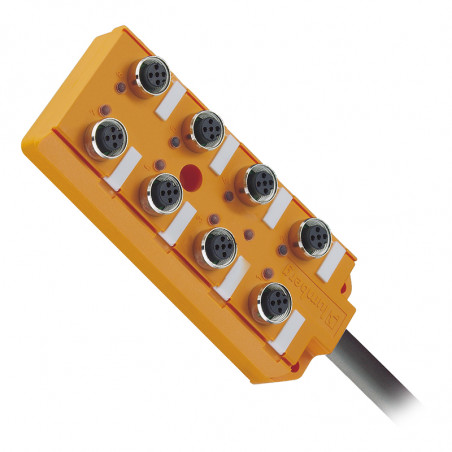

Sensor chests  3 CONTACTS (3+PE)


Technical data

Usage class:
ZNA - DIN 400 40 (-15°C - 90°C)
Contact base:
PA 6.6, GF, self-extinguished
Contact:
Cu Zn, nickled and golden 0,8 μm
casing:
PUR, self-extinguished, colour: orange
IP
IP67
Current
4A for contact
Operating voltage:
10...30 V DC
 Contacts terminal
Pollution level
2 według VDE 0110
 1: brown (+)
Measure voltage
32V~/s
 3: blue (-)
Insulation resistance
>109Ω
 4: white (1), green(2), yellow (3),grey (4), pink (5), red(6), black(7), violet(8)

 5: green- yellow(PE)




connection ASB 4...
connection ASB 6...
connection ASB 8...


Producer number Execution
ASB4/LED-5/4-12/5m 4-time distributor with cable 5 m
ASB4/LED-5/4-12/10m 4-time distributor with cable 10 m
ASB6/LED-5/4-13/5m 6-time distributor with cable 5 m
ASB6/LED-5/4-13/10m 6-time distributor with cable 10 m
ASB8/LED-5/4-14/5m 8-time distributor with cable 5 m
ASB8/LED-5/4-14/10m 8-time distributor with cable 10 m


Sensor chests 4  CONTACTS (3+PE)
 (3+PE)


For joints M12x1 with thread closure M23
 With operation (green) and function (yellow) LED
Supply voltage:             60 V AC/ 75 V DC
Measure voltage:          63V~/s
ASBS 8...
Cabling ASBS 6...
Extra PE cable on the middle contat (5)


Producer number Execution
 4-pole (3 + PE)
ASBS4/LED 5-4 4-time distributor, dimensions 60 x 118 x 29 mm
ASBS6/LED 5-4 6-time distributor, dimensions 60 x 118 x 29 mm
ASBS8/LED 5-4 8-time distributor, dimensions 60 x 118 x 29 mm


Sensor chests 4  CONTACTS (4+PE)


Technical data
Usage class ZNA - DIN 40040 (-15°C do 90°C)
Contact base: PA 6.6, GF, self-extinguished
Contact: Cu Zn, nickled and golden 0,8µm
Casing: TPU, self-extinguished, colour: orange
IP: IP67
Current: 4A for contact, overall 12A
Operating voltage: 10 -30V DC
Pollution level: 2 - VDE 0110
Measure voltage: 32V~/s
Insulation resistance: >109Ω





Cabling ASB 4...
Cabling ASB 6... 		Cabling ASB 8..


Producer number Execution
ASBV4/LED 5-66/5 m 4-time divider with cable 5 m
ASBV4/LED 5-66/10 m 4-time divider with cable 10 m
ASBV6/LED 5-52/5 m 6-time divider with cable 5 m
ASBV6/LED 5-52/10 m 6-time divider with cable 10 m
ASBV8/LED 5-135/5 m 8-time divider with cable 5 m
ASBV8/LED5-135/10m 8-time divider with cable 10 m



ASBSM.../LED3




Technical data
  Temperature range: - 25°C - 70°C
  Casing: PBT
Socket M8 Contact base: (PA, self-extinguished)
3 contacts Contact M8: CuSn, nickled, golden 0,8 μm
1 signal per socket Contact M12: CuZn, nickled, golden 0,8 μm
Cable connection M12 Socket casing : CuZn nickled
  RING O - FKM
Marking IP: IP67
ASBSM 4/LED3 Current 40C: 1,5A
ASBSM 6/LED3
ASBSM 8/LED3 Operating voltage: 10 30 V DC
ASBSM 10/LED3 Pollution level: 3
  Insulation resistance: > 109Ω .
  Contact resistance


ASBM.../LED3


Technical data

  Temperature range: - 25°C - 70°C
  Casing: PBT
  Contact base: (PA, self-extinguished)
4-12 sockets Contact M8: CuSn, nickled, golden 0,8 μm
Socket M8 Contact M12: CuZn, nickled, golden 0,8 μm
3 contacts Ring O - FKM
1 signal for contact Socket casing: CuZn nickled
Integrated control wire, IP67
  current @ 40C: 1,5A

  Operating voltage: 10 30 V DC
  Pollution level: 3
  Insulation resistance: > 109Ω
  Contact resistance
