KE-LED 4010-P | LED darbo lemputė

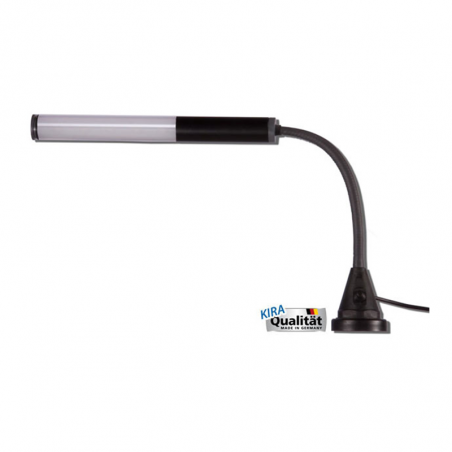

KE-LED 4010-P | LED WORKPLACE LAMP
The KE-LED 4010-P / A offers the best illumination of the workplace on workbenches, machines or systems. The diffuser film which is integrated into the protective tube ensures a pleasant, glare-free working light. Thanks to the flexible light holder tube, which is available in different lengths, the working light can be optimally aligned. For easy and flexible installation, the luminaire is available with a permanent magnet or a table screw clamp and for fixed mounting with a mounting plate.

Technical Data KE-LED 4010-P
Illuminant 10x Power LEDs (12V version with 9 LEDs) / 5000 Kelvin
Luminous flux ca. 900 Lumen
Voltages 230V / 110V / 24V / 12V (12V version with 9 LEDs)
Protective tube PMMA, 40 mm Ø
Installation with magnet, plate or clamp
Cable 5 m H05RN-F 2 x 1,0 mm2
Plug Schuko-contour-plug (only 230V version)
Light holder flexibel, 300mm (optional 400mm or 500mm)
On-/Off switch yes
Protection (IP) IP54
Length of the lamp 770 mm

Luminaires are available in the following configuration

Type Version Voltage Amp. Plug Weight Art.-No.
KE-LED 4010-P / AM-230 with magnet 230 V AC 0,060 contour- 1,5 kg 131388
KE-LED 4010-P / AP-230 with plate 230 V AC 0,060 contour- 1,4 kg 131363
KE-LED 4010-P / AK-230 with clamp 230 V AC 0,060 contour- 1,5 kg 131389
KE-LED 4010-P / AM-24 with magnet 24 V AC / DC   w/o 1,5 kg 131489
KE-LED 4010-P / AP-24 with plate 24 V AC / DC   w/o 1,4 kg 131528
KE-LED 4010-P / AK-24 with clamp 24 V AC / DC   w/o 1,5 kg 131529

Color of light 5000k

Type Dimensions in mm
a b c d
KE-LED 4010-P / ... 770 220 40 300
