M2VF3 - Signalo keitiklis su DC MV, įtampa ir srovė
  • M2VF3 - Signalo keitiklis su DC MV, įtampa ir srovė

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: M-SYSTEM

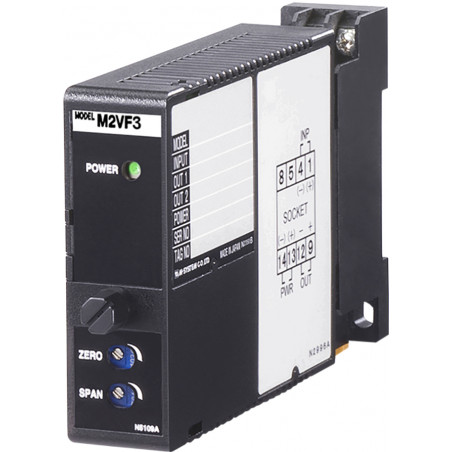

M2VF3 - Signalo keitiklis su DC MV, įtampa ir srovė

  • M2VF3

M2VF3 is a converter with DC mV input and output, current and voltage (range to be specified when ordering). Ultra fast response time & lt; 30μs and high accuracy of ± 0.01%


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • Ultra fast response time & lt; 30μs
  • High accuracy - ± 0.01%
  • Power 24V DC, 100-240V AC
  • DIN rail mounting
  • 2000V AC insulation

Types of inputs: current or voltage with different ranges
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength With DC power: 2000V AC
With AC power: 1500V AC
Range selection Determined during the order or programmable One Step Cal / PC
Double Output None
Power AC / DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 23x76x124mm
mažiau
Skaityk daugiau

Atsiųskite užklausą

Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?

Susisiekite su mumis
KLAUSKITE PRODUKTO close
Dėkojame, kad atsiuntėte žinutę. Atsakysime kuo greičiau.
KLAUSKITE PRODUKTO close
Naršyti
atsiųsti paklausimą

Pridėti į norų sąrašą

tu turi būti prisijungęs

M2VF3 is a converter with DC mV input and output, current and voltage (range to be specified when ordering). Ultra fast response time & lt; 30μs and high accuracy of ± 0.01%


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • Ultra fast response time & lt; 30μs
  • High accuracy - ± 0.01%
  • Power 24V DC, 100-240V AC
  • DIN rail mounting
  • 2000V AC insulation

Types of inputs: current or voltage with different ranges
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength With DC power: 2000V AC
With AC power: 1500V AC
Range selection Determined during the order or programmable One Step Cal / PC
Double Output None
Power AC / DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 23x76x124mm
