M2xum - Signalo keitiklis su universaliu įėjimu
  • M2xum - Signalo keitiklis su universaliu įėjimu

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: M-SYSTEM

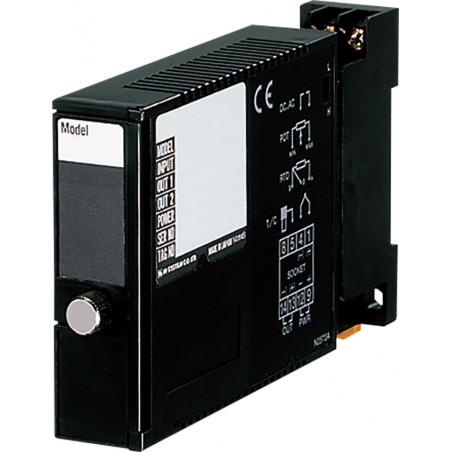

M2xum - Signalo keitiklis su universaliu įėjimu

  • M2XUM

M2XUM is a converter with universal input and output (programmable by the user) with Modbus-RTU communication.


Features

  • 2 independent DC isolated outputs
  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring.
  • Calibration possible using a PC or buttons on the front of the housing
  • Power 24V DC, 100-240V AC
  • DIN rail mounting
  • 2000V AC insulation
  • Multifunctional spare part

Input types: universal, mA DC, mV DC, µA, V DC, mA AC, A AC, mV AC, V AC, thermocouple, sensor (Pt 50, Pt 100, Pt1000 ..., Ni, Cu), frequency (pulse), resistance (potentiometric), pneumatic.
Output types: mA DC, mV DC, VDC, frequency (pulse)
Possibility to make a range of inputs / outputs on a special request.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Ranges selection Set while ordering or programmed with One Step Cal / PC
Double exit None
Power AC / DC
Operating Temperature - 30 to + 60 ° C
Mounting DIN Rail
Dimensions 29.5x76x124mm
mažiau
