Gamintojas: M-SYSTEM

M2LPM - Signalo keitiklis su atsparumu įėjimas - pritaikoma

  • M2LPM

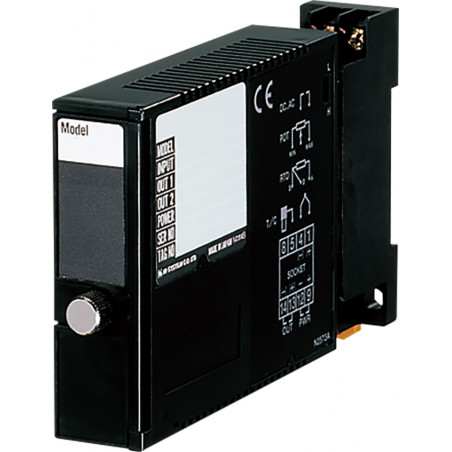

M2LPM is a converter with a resistive input (programmable by the user).


Features

  • Mounting socket for each model - enables easy assembly / disassembly and quick conversion of converters without the need to interference in the cabling
  • Calibration possible by means of a PC or buttons on the front of the housing
  • AC power
  • DIN rail mounting
  • 2000V AC insulation

    • Types of inputs: resistive 50Ω - 10kΩ
    Types of outputs: current or voltage
    Possibility to make a range of inputs / outputs on a special request.

    < / table>
    mažiau
    Skaityk daugiau

    Atsiųskite užklausą

    Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?

    Susisiekite su mumis
    KLAUSKITE PRODUKTO close
    Dėkojame, kad atsiuntėte žinutę. Atsakysime kuo greičiau.
    KLAUSKITE PRODUKTO close
    Naršyti
    atsiųsti paklausimą

    Pridėti į norų sąrašą

    tu turi būti prisijungęs

    M2LPM is a converter with a resistive input (programmable by the user).


    Features

  • Mounting socket for each model - enables easy assembly / disassembly and quick conversion of converters without the need to interference in the cabling
  • Calibration possible by means of a PC or buttons on the front of the housing
  • AC power
  • DIN rail mounting
  • 2000V AC insulation

    • Types of inputs: resistive 50Ω - 10kΩ
    Types of outputs: current or voltage
    Possibility to make a range of inputs / outputs on a special request.

    Wire connection M3 screw terminals
    Separation Input / Output / Power
    Dielectric Strength DC: 2000V AC
    AC: 1500V AC
    Ranges selection Programmable One Step Cal / PC
    Dual Output None
    Power AC
    Operating Temperature - 5 to + 55 ° C
    Mounting DIN rail
    Dimensions 23x83x124mm
