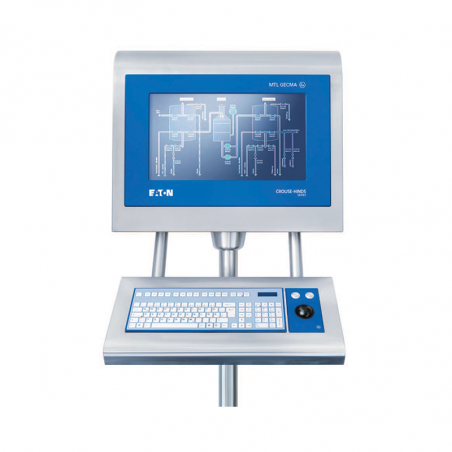

Kompiuterių terminalas (plonas klientas) ex į 1/21 ir 2/22 zonos MTL GECMA
  • Kompiuterių terminalas (plonas klientas) ex į 1/21 ir 2/22 zonos MTL GECMA

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: MTL Instruments

Kompiuterių terminalas (plonas klientas) ex į 1/21 ir 2/22 zonos MTL GECMA

The MTL GECMA Work Station range has been designed to address the environmental challenges of obtaining visualisation within harsh and hazardous areas. Building upon decades of experience and expertise and the significantly large installed base of its predecessor, the MTL GECMA Work Station is packed full of features and state-of-the-art technology. The range includes Remote Terminal (RT), Thin Client (TC) and Personal Computer (PC) to meet a wide variety of applications. Suitable for the strictest of hygienic conditions and aggressive production environments, its slim, flexible modular construction also includes individually certified modules to allow safe maintenance even in hazardous areas.



Unique modular design concept - key features


The Thin Client (TC) incorporates a Quad Core 2GHz CPU, 4GB RAM and numerous Ex i and Ex e connections and is supplied with a standard ‘Windows-based’ open operating system and remote-access software. A dual Ethernet port provides redundancy on the network connection, increasing availability of the client on the network.







Electrical specification


  19" 22" 24"
Screen size 19" (48 cm) 21.5" (54 cm) 24" (61 cm)
Display 1280 x 1024 px, 5:4 picture format, 16.7 million colours 1920 x 1080 px, 16:9 picture format, 16.7 million colours 1920 x 1200 px, , 16:10 picture format, 16.7 million colours
Brightness 250 cd/m2
Contrast ratio 1000:1 typical
Viewing angle 170/160° typical at CR ≥ 10
Touch screen (option) Resistive 5-wire glass touch screen
CPU Quad core Intel Celeron J1900
Frequency 2 GHz (2.42 GHz burst frequency)
Memory 4GB DDR3L (max. 8GB)
Video Intel Gen7 graphic engine
Terminal unit
Power supply AC 100-240V AC, 50/60Hz, DC 20-30V DC
Power input 80W (typical) / 88W (max)
Ethernet 2x Ex e 1000Mbps Copper Ports OR 2x Ethernet Fibre ports with 2x LC connectors (Single-Mode or Multi-Mode)
WatchDog Timer Output system reset, programmable counter from 1 ~ 255 minutes/seconds
Storage 64GB SSD (larger storage size upon request)
Serial 1x Ex e RS232, 1x Ex and RS232
USB 2x Ex e USB 2.0, 4x Ex and USB 2.0
Pointing device 2x Ex and PS/2 for keyboard and pointing device
Operating system Windows embedded 10 (Thin Client)
Client application installed Remote desktop connection (pre-installed), others on request



Mechanical specifications


  19" 22" 24"
Housing material Stainless steel
V2A, EN std 1.4301, SAE grade 304
V4A, EN std 1.4404, SAE grade 316L (option)
Electro polishing (option)
Weight 65 kg (full terminal) 69 kg (full terminal) 75 kg (full terminal)
Dimensions [mm] (W x H x D) 509 x 429 x 50 (W x H x D) 610 x 400 x 50 (W x H x D) 675 x 461 x 50
Module assembly dimension without housing [mm] 509 (W) x 429 (H) x 125 (D*)
* depth behind mounted display module		 610 (W) x 400 (H) x 125 (D*)
* depth behind mounted display module		 675 (W) x 461 (H) x 125 (D*)
* depth behind mounted display module



Enviromental specification


Temperature Operating ambient temperature: -20°C to +50°C (10-90% RH, non-condensing)
Certified ambient temperature: -30°C to +60°C (10-90% RH, non-condensing)
Ambient storage temperature: -40°C to +70°C (10-90% RH, non-condensing)
Ingress protection Front IP66/NEMA 4 (when mounted and assembled correctly)



Certification


Authority Certificate Com Module: IECEx: SIR 16.0062X ATEX: 16ATEX5180X
Approved for Certification Code Com Module: Ex eb mb[ib] op is IIC T4 Gb
