LS7 signaliniai bokštai
  • LS7 signaliniai bokštai

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Patlite

LS7 signaliniai bokštai

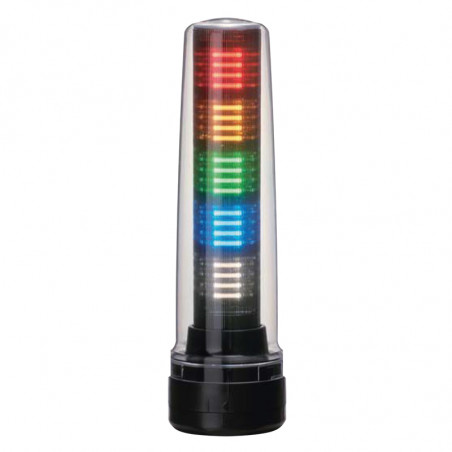

Patlite offers a "Smart and Smooth" Signal Tower to its lineup, the "LS7". By changing the surface of the body into a smoother form, the adhesion of water and dust is reduced. The structure no longer exposes any screws, shafts or other metals to be adaptable for various environments. With the state-of-the-art inner lens design, the LED emits a sharper, more efficient light. The sound frequence of the optional buzzer can "cut through" the sound from operating machinery that would normally drown out other buzzer sounds. The LS7 comes in a 3 tier or 5 tier model with an assortment of options, including the popular M12 connector. .

SIZE - 70mm Diameter
INPUT VOLTAGES - 24V DC
MOUNTING Platform Bracket
- SZ-100 (Off-white)
- SZ-100-D (Dark Gray)
- SZ-100-S (Silver)
Wall Mounting Bracket
- SZ-110 (Off-white)
- SZ-110-D (Dark Gray)
- SZ-110-S (Silver)
BODY STYLE H-type
- Pre-assembled, pre-wired
C-type
- M12 Connector
BODY COLOR - Body: Off-white
- Body: Dark Gray
- Body: Silver
TIERS - 3 Tires
- 5 Tires
MODULE COLORS - Red
- Amber
- Green
- Blue
- Clear
BUZZER - Buzzer 1: Lead Wire Type (Intermittent beep1)
M12 Conector Type (Continuous Beep) 82dB (at 1m)
- Buzzer 2: Lead Wire Type (Intermittent beep2)
M12 Conector Type (None) 85dB (at 1m)
CONFORMITY STANDARDS - CE Marking (24V only)
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
- RoHS
PROTECTION RATINGS - IP-66 (Illumination Type)
- IP-65 (Buzzer Type)

Model code

Option

Dimensions
