Gamintojas: Sisel

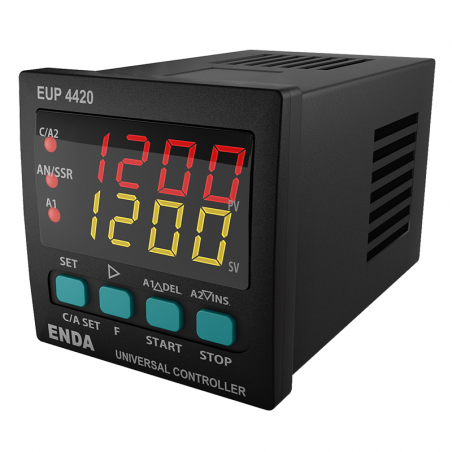

Mikroprocesorių temperatūros reguliatoriai EPC serijos

Dimensions:
     EPC4420: 48x48mm,
     EPC7420: 72x72mm,
     EPC8420: 48x96mm,
     EPC9420: 96x96mm,
* Communication vai RS-485 ModBus protocol (Optional).
* Selectable 0-20mA or 4-20mA analog control output.
* Relay output can be programmable as second alarm or control output.
* AL1 output or Timer output or can be used as control AL1 relay output.
* Input offset feature.
* In the case of sensor failure relay state can be
selected.
periodical running or
* Until the eight steps to make the profile control.
* In each step AL1 and AL2 outputs proramming.
* To continue where it left off in power failure feature

 Technical data

- Accuracy   ±0,2% (of full scale) ±1 digit
- Scale   Depends on chosen sensor
  Pt100 -200... 600°C
  Pt100 -99,9...300°C
  Thermocouple J 0...600°C
  Thermocouple K 0...1200°C
  Thermocouple T 0...400°C
  Thermocouple S 0...1600°C
  Thermocouple R 0...1600°C
- Output   Relay : 250V AC, 2A
  analogue 0...20mA
    analogue.20mko
    SSR logic 0/12V DC, 20mA
- Alarm output   2A, 250V AC, set NO/NC
- Display   4 red digits LED, measured value
    4 yellow digits LED, set value
Keyboard   microswitch
Supply   230V AC +10%, -20%, 50/60HZ, 9-30VDC/7-24VAC±10% SMPS,

Ambient/storage temperature   0 ... +50°C/-25... +70°C (with no icing)
Dimensions   EPC4420 48x48x87mm
    EPC7420 72x72x97mm
    EPC8420 48x96x87mm
    EPC9420 96x96x50mm
Wiring   2.5mm² screw-terminal connections
- Weight   EPC4420 250g (after packing)
    EPC7420 395g (after packing)
    EPC8420 395g (after packing)
    EPC9420 410g (after packing)
Marking
Order Code: EPC
1 - Dimensions
442 .....48x48x87mm
742 .....72x72x97mm
842 .....48x96x87mm
942 .....96x96x50mm
2 - Supply Voltage
230VAC...230V AC
24VAC.....24V AC
SM...........9-30V DC/
                7-24V AC
3 - Modbus Option
RS .....RS-485/Modbus

RS........RS-485 Modbus communication
None....Don’t support RS-485 Modbus communication
Type Power supply Output
EPC 4420 230VAC 2 relays, SSR, 0...20ma, 4...20mA, RS485(optional)
EPC 4420 -SM 9-30VDC/7-24VAC 2 relays, SSR, 0...20ma, 4...20mA, RS485(optional)
EPC 7420 230VAC 2 relays, SSR, 0...20ma, 4...20mA, RS485(optional)
EPC 7420 - SM 9-30VDC/7-24VAC 2 relays, SSR, 0...20ma, 4...20mA, RS485(optional)
EPC 8420 230VAC 2 relays, SSR, 0...20ma, 4...20mA, RS485(optional)
EPC 8420 - SM 9-30VDC/7-24VAC 2 relays, SSR, 0...20ma, 4...20mA, RS485(optional)
EPC 9420 230VAC 2 relays, SSR, 0...20ma, 4...20mA, RS485(optional)
EPC 9420 - SM 9-30VDC/7-24VAC 2 relays, SSR, 0...20ma, 4...20mA, RS485(optional)

Wymiary





EPC4420 EPC4420-SM

EPC7420 EPC7420-SM

EPC8420 EPC8420-SM

EPC9420 EPC9420 SM
