Mikroprocesorinis registratorius KR2S
  • Mikroprocesorinis registratorius KR2S

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Chino

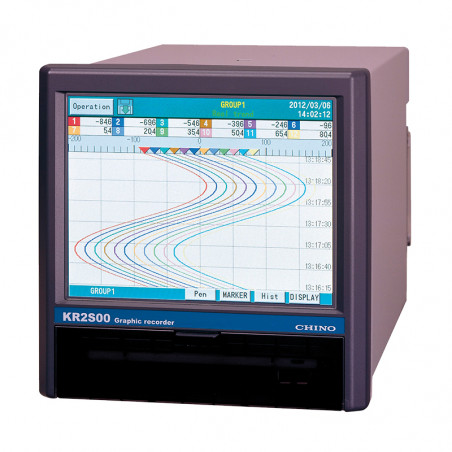

Mikroprocesorinis registratorius KR2S

Microprocessor-based recorder with LCD touch screen KR2S series

KR2S series recorder is an advanced device with a full touch screen designed for measurement, visualization, recording and archiving of industrial process parameters. Using a touch screen with a diagonal of 5.7", we can view measured values and set all parameters. KR2S series recorder has the ability to read data with a sampling time of 100ms, with an accuracy of 0.1% of full scale. Data can be recorded via USB port or on CF card. It is possible to connect the recorder to a computer network and view the stored data via a web browser or FTP server. On the resulting graphs, there is the possibility of making manual entries, which are stored without the possibility of deleting them. As a result, the recorded data with created notes can fulfill a similar function as printouts from paper recorders.



Technical data

Number of channels
 6 or 12 inputs
Input signals types
 universal input, the recorder works with all types of thermocouple and thermoresistance sensors, analogue and voltage signals
Input type programmable
Measurement range programmable
Sampling period 100 ms
Diplay touch 5.7" VGA TFT LCD
Trends 12 colors (programmatically selected)
Archive USB or CF card
Recording cycle 100, 200, 500 ms
1, 2, 3, 5, 10, 15, 20, 30 s
1, 2, 3, 5, 10, 15, 20, 30, 60 min
Screensaver programmable
Data transfer USB, CF card, Ethernet, FTP, WEB, E-mail
Alarm types upper, lower, upper with hysteresis, lower with hysteresis
Range of alarms programmable, 4 alarms per channel
Power supply 90..264 VAC, 50/60 Hz
Power consumption max. 35 VA
Operating temperature 0..50 °C
Humidity 20..80%RH
Weight 2,1 kg
Dimensions 144 x 144 mm
Ingress Protection Front panel IP54


Product Number


Mikroprocesorowy rejestrator z dotykowym ekranem LCD serii KR2S numer katalogowy

Number of channels
6: 6 channels
2: 12 channels
Input type
P: Universal
Communication type
N: None
E: Ethernet
R: RS485
G: Ethernet + RS485
Digital input/Alarm output
0: No digital inputs or alarm outputs
2: Two alarm relay outputs
7: Four remote, digital inputs
8:  Two alarm relay outputs + two digital, remote inputs
Assembly
A: Panel mounting
T: Portable version (e.g. operating on table)
