Gamintojas: TECHSEM

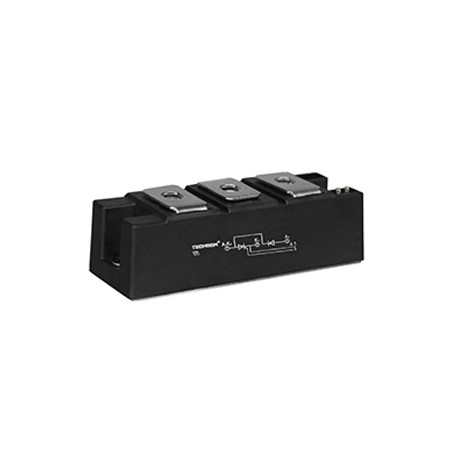

TYRYSTOR / LED moduliai

Features

  • Isolated mounting base, 2500V~
  • Air-cooling for up to 350A. for over 400A , air-cooling or water-cooling
  • Simple mounting and easy maintenance
  • Space and weight saving

Typical application

  • AC/DC Motor drives
  • Various rectifiers
  • Soft start AC motor control
  • Lighting controls
  • Contactless switches
  • Battery DC chargers or dischargers
  • UPS

Electrical data

Type VDRM/VRRM IT(AV)@Tc ITSM I2t dv/dt di/dt IDRM IGT VGT IH VTM@ITM VTO rT Rth(j-c)
IRRM
10 ms 125°C 25°C 125°C
V A °C kA kA2s V/μs A/μs mA mA V mA V A V mΩ °C/W
MFx26 600-1800 26 85 0.65 2.1 800 50 8 100 2.5 120 1.69 80 0.85 9.68 0.950
MFx40 600-1800 40 85 1.15 6.6 800 50 8 100 2.5 120 1.60 120 0.85 5.57 0.650
MFx55 600-1800 55 85 1.50 11.3 800 50 8 100 2.5 120 1.50 170 0.85 3.47 0.530
MFx70 600-1800 70 85 1.70 14.5 800 50 10 100 2.5 120 1.48 210 0.80 2.64 0.410
MFx90 600-1800 90 85 2.25 25 800 100 10 100 2.5 120 1.70 270 0.80 3.01 0.280
MFx110 600-1800 110 85 2.80 39 800 100 12 100 2.5 120 1.69 330 0.80 2.29 0.250
MFx135 600-1800 135 85 3.80 65 800 3.60 10 150 2.5 150 1.75 410 0.80 2.85 0.200
MFx160 600-1800 160 85 6.0 180 800 100 15 150 2.5 150 1.70 480 0.80 1.69 0.170
MFx182 600-1800 182 85 7.0 245 800 100 20 150 2.5 150 1.62 550 0.80 1.26 0.160
MFx200 600-1800 200 85 8.0 320 800 100 25 180 2.5 180 1.65 600 0.80 1.27 0.140
MFx250 600-1800 250 85 9.0 405 800 100 25 180 2.5 180 1.57 750 0.80 0.85 0.120
MFx285 600-1800 285 85 9.1 414 800 100 25 180 3.0 180 1.45 750 0.80 0.53 0.12
MFx300 600-1800 300 85 9.20 423 800 100 35 180 2.5 180 1.58 900 0.80 0.72 0.100
MFx350 600-1800 350 85 11.0 605 800 100 35 180 2.5 180 1.45 1050 0.95 0.36 0.090
MFx400 600-1800 400 85 12.5 781 800 100 35 200 3.0 200 1.52 1200 0.80 0.49 0.080
MFx500 600-1800 500 85 14.5 1051 800 100 35 200 3.0 200 1.44 1500 0.80 0.34 0.065
MFx570 600-1800 570 85 15 1125 800 100 35 200 3.0 200 1.45 1600 0.80 0.20 0.065
MFx600 600-1800 600 85 16 1280 800 100 45 200 3.0 200 1.45 1800 0.80 0.28 0.064
MFx800 600-1800 800 85 22 2420 800 100 45 200 3.0 200 1.86 2400 0.80 0.20 0.042
MFx1000 600-1800 1000 85 28 3920 800 100 55 200 3.0 200 1.95 3000 0.80 0.15 0.034
MFx1200 600-1800 1200 85 34 5780 800 100 55 200 3.0 200 1.76 3000 0.80 0.09 0.031
