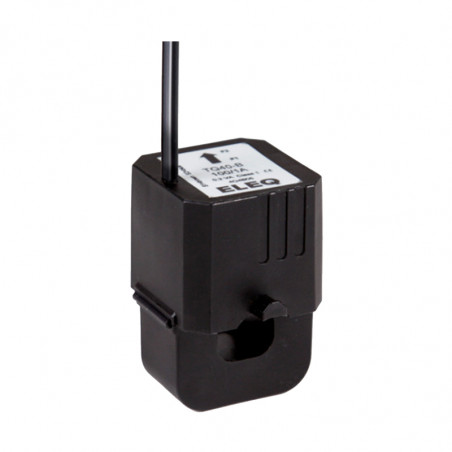

Srovės transformatoriai ant laido, atidaroma šerdis

Superfast and accurate current measurement using our new split-core current transformers. ELEQ’s new low power current transformers
are ideal for use in combination with digital power meters in existing installations. Each current sensor is supplied with colour-coded leads.
The power and class specifications apply to the conditions at the end of these leads. The transformers meet IEC60044-1 standards and
have an output current of 1 A or 5A.

Properties:
• Ideal for use in very confined spaces
• Superfast mounting
• For application around isulated cable of max. 18mm, 28mm, 42mm and 2x42mm diameter
• Compact and hinged (30mm to 50mm width)
• Low power output
• Include colour-coded leads
• TQ30 60 up to 250/1A cl.3
• TQ40-B 100 up to 250/1A cl.1 or 150 up to 250/5A cl.1
• TQ40-C 200 up to 500/1A cl. 1 or 250 up to 500/5A cl. 1



TQ30, TQ40-B, TQ40-C, TQ50-E TQ50-L


  TQ30
(φ18mm)		 TQ40-B
( φ18mm)		 TQ40-C
( φ28mm)
Description Burden Class Article nr. Class Article nr. Class Article nr.
60/1A 0,2VA 3

4Q3B02


75/1A 0,2VA 3

4Q3B03


100/1A 0,2VA 3

4Q3B05

 1 4Q4B05
125/1A 0,2VA 3

4Q3B07

 1 4Q4B07
150/1A 0,2VA 3

4Q3B08

 1 4Q4B08
200/1A 0,2VA 1

4Q3B09

 1 4Q4B09 1 4Q4C09
250/1A 0,2VA 1

4Q3B10

 0,5 4Q4B10> 1 4Q4C10
300/1A 0,2VA         1 4Q4C11
400/1A 0,2VA         1 4Q4C12
500/1A 0,2VA         1 4Q4C13
600/1A
750/1A
800/1A
1000/1A

150/5A 1VA     1 4Q4B58
200/5A 1VA     1 4Q4B59
250/5A 1VA     1 4Q4B60 1 4Q4C60
300/5A 1VA         1 4Q4C61
400/5A 1VA         1 4Q4C62
500/5A 1VA         1 4Q4C63
600/5A
750/5A
800/5A
1000/5A

    TQ50-E
(φ42mm)		 TQ50-L
(2xφ42mm)
Burden Class Article nr. Article nr.
0,5VA 1 4Q5E10 4Q5L10
0,5VA 1 4Q5E11 4Q5L11
0,5VA 0,5 4Q5E12 4Q5L12
0,5VA 0,5 4Q5E13 4Q5L13
0,5VA 0,5 4Q5E14 4Q5L14
0,5VA 0,5 4Q5E15 4Q5L15
0,5VA 0,5 4Q5E16 4Q5L16
0,5VA 0,5 4Q5E17 4Q5L17




0,5VA 1 4Q5E61 4Q5L61
0,5VA 1 4Q5E62 4Q5L62
0,5VA 1 4Q5E63 4Q5L63
0,5VA 0,5 4Q5E64 4Q5L64
0,5VA 0,5 4Q5E65 4Q5L65
0,5VA 0,5 4Q5E66 4Q5L66
0,5VA 0,5 4Q5E67 4Q5L67
