MTM POWER įmonės DC/DC keitikliai
  • MTM POWER įmonės DC/DC keitikliai

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: MTM POWER

MTM POWER įmonės DC/DC keitikliai

Series PMD
 Series PMG/PCMG
Technical data
Power
1 - 200W
Input voltage
4,5...6 VDC, 9...18 VDC, 18...36 VDC, 36...72
Output voltage
1,8 V, 2,5 V, 3,3 V, 5 V, 12 V, 15 V, 24 V,

48 V, ±5 V, ±12 V, ±15 V, 5/2,5 V, 5/3,3 V,

5/+12 V, 5/+15 V, 5/+12/-5 V.
Efficiency
≥ 94%
Operation temperature
-25...+71 °C/-40...+100 °C
Casing
SIL7, DIL24, SMD, 2”x1”, 2”x2”,

65,0 x 76,2 x 21,1 mm, Quarter Brick,

Half Brick, Fuli Brick, Open Frame
Assembly
Leiterplatte (PMA) oder Chassis (PCMA)
Technical data
Power
15 W, 30 W
Input voltage
20...72 VDC
Output voltage
5 V, 12 V, 15 V, 24 V, 48 V, ±12 V, ±15 V,

5/12 V, 5/15 V, 5/24 V, 5/+12 V, 5/+15 V
Efficiency
≥ 80%
Operation temperature
-25...+65 °C
Casing
UL94-V0 / vakuumvergossen
Assembly
Leiterplatte (PMA) oder Chassis (PCMA)
Seria PCMDS
Seria PMG/PCMD
Technical data
Power 60 W
Input voltage 20...72 VDC
Output voltage 16,8...50,4 VDC, 50,4...154,0 VDC
Efficiency ≥ 85%
Operation temperature -40...+85 °C
Casing UL94-V0 / vakuumvergossen
Assembly Federzugklemmen
Technical data
Power 75 W, 120 W, 150 W, 200 W
Input voltage 10...45 VDC, 25...60 VDC, 30...75 VDC, 50...150 VDC
Output voltage 12 V, 15 V, 24 V, 36 V
Efficiency ≥ 86%
Operation temperature -25...+70 °C
Casing UL94-V0 / vakuumvergossen
Assembly PMD: Kabelanschluss
  PCMD: Schraubklemmen
Seria PCMD
SeriaMPG
Technical data
Power 250 W, 400 W
Input voltage 16,8...36 VDC, 50...150 VDC, 60...154 VDC
Output voltage 12 V, 24 V, 30 V
Efficiency ≥ 88%
Operation temperature -25...+70 °C
Casing UL94-V0 / vakuumvergossen
Assembly Schraubklemmen

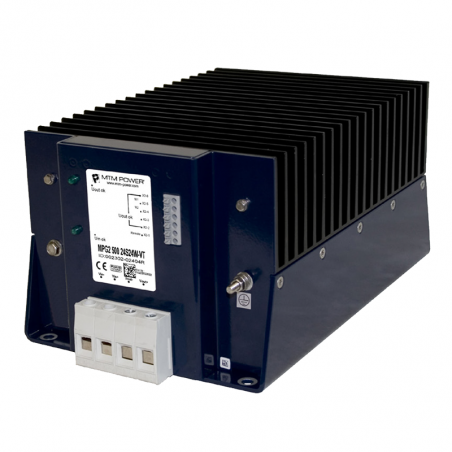

Technical data
Power MPG2: 500 W - 800 W
  MPG3: 750 W - 1.200 W
Input voltage 10,5...154,0 VDC (total)
Output voltage 12 V, 24 V, 48 V, 72 V, 110 V
Efficiency ≥ 88%
Operation temperature -40...+75 °C
Casing MPG 2: 316 x 180 x 141 mm
  MPG 3: 355 x 180 x 141 mm
Assembly Schraubklemmen


TypePower
[W]		Input voltage rangeOutput quantityCasing Dimensions
[mm]		Casing type
PMD1N 1 ±10 % 1 11 SIL7 / SMD Plastic
PMD1 1,5 ±10 % 111 DIL24 / SMD Plastic / Metal
PMD3W 3 2 : 1 111 DIL24 / SMD Plastic / Metal
PMD3U 3 4 : 1 111
PMD5WD 5-6 2 : 1 111 DIL24 / SMD Plastic / Metal
PMD5UD 5-6 4 : 1 111 DIL24 / SMD Plastic / Metal
PMD5W 5-6 2 : 1 111 50,8 x 50,8 x 10,2 Plastic / Metal
PMD8SD 6-24 2 : 1 / 3 : 1 1 DIL24 / SMD Plastic / Metal
PMD8WD 7,5 2 : 1 111 DIL24 / SMD Plastic / Metal
PMD8WHS 7,5 2 : 1 111 50,8 x 25,4 x 10,2 Metal
PMD10WD 7,5-11 2 : 1 1 DIL24 / SMD Metal
PMD10WHS 10 2 : 1 2 50,8 x 25,4 x 10,2 Metal
PMD10UHS 10 4 : 1 1 11 50,8 x 25,4 x 10,2 Metal
PMD150 13,2-15 2 : 1 1 27,9 x 24,2 x 9,1 Otwarta
PMD15WHS 15 2 : 1 1 11 50,8 x 25,4 x 10,2 Metal
PMD150HS 10,8-15 2 : 1 1 50,8 x 25,4 x 10,2 Otwarta
PMD15W 15 2 : 1 1 11 50,8 x 50,8 x 10,2 Metal
PMD15UD 15 4 : 1 1 / 2 / 3 50,8 x 50,8 x 10,2 Metal
PMD15U 15 4 : 1 1 / 2 / 3 65,0 x 76,2 x 21,1 Metal
PMD20WHS 20 2 : 1 1 50,8 x 25,4 x 10,2 Metal
PMD30WD 25-30 2 : 1 1 / 2 / 3 50,8 x 50,8 x 10,2 Metal
PMD30W 25-30 2 : 1 1 / 2 / 3 65,0 x 76,2 x 21,1 Metal
PMD30U 25-30 4 : 1 1 / 2 / 3 65,0 x 76,2 x 21,1 Metal
PMD40WD 40 2 : 1 1 50,8 x 50,8 x 10,2 Metal
PMD50WHB 33-50 2 : 1 1 57,9 x 61,0 x 12,7 Metal
PMD50UHB 25-50 4 : 1 1 57,9 x 61,0 x 12,7 Metal
PMD75WQB 50-75 2 : 1 1 36,8 x 57,9 x 12,7 Plastic
PMD75WHB 49,5-75 2 : 1 1 11 57,9 x 61,0 x 12,7 Metal
PMD75UHB 37,5-75 4 : 1 1 57,9 x 61,0 x 12,7 Metal
PMD100WHB 66-100 2 : 1 1 57,9 x 61,0 x 12,7 Metal
PMD150WHB 99-50 2 : 1 1 57,9 x 61,0 x 12,7 Metal
PMD180/300OQB 180 / 300 2 : 1 / ±10 % 1 57,9 x 36,8 x10,2 Otwarta
PMD200WFB 100-200 2 : 1 1 116,8 x 61,0 x 12,7 Metal


TypePower
[W]		Input voltageOutput quantityCasing Dimensions[mm]Casing type
PMG15 PCMG15 15 20...72 VDC 1 / 2 / 3 76,0 x 50,7 x 22,7 1
10,0 x 50,8 x 23,0		 PlasticA/acuum encaps.
PMG30 PCMG30 30 20...72 VDC 1 / 2 / 3 90,5 x 65,5 x 33,5
120,0 x 65,5 x 33,0		 PlasticA/acuum encaps.
PCMDS60W 60 3:1 1 130,0 x 69,0 x 30,0 PlasticA/acuum encaps.
PMD75W 75 3:1 1 110,0 x 100,0 x 36,0 PlasticA/acuum encaps.
PMD / PCMD120W 120 2:1 / 3:1 1 170,0 x 115,0 x 38,0 PlasticA/acuum encaps.
PMD / PCMD150W 150 2:1 / 3:1 1 170,0 x 115,0 x 38,0 PlasticA/acuum encaps.
PMD / PCMD200W 200 2:1 /3 :1 1 170,0 x 115,0 x 38,0 PlasticA/acuum encaps.
PCMD250W 250 2:1 /3 :1 1 150,0 x 86,0 x 55,0 Aluminium/vacuum encaps.
PCMD400W 400 2:1 /3 :1 1 150,0 x 86,0 x 55,0 Aluminium/vacuum encaps.


TypeCurrent
[A]		Input voltageOutput voltage rangeDimensions
[mm]		Casing type
PMDPOL 5 5A 3,0...5,5VDC 0,75...3,3VDC 22,9 x 10,16 x 5,6 2
0,3 x 11,43 x 6,09		 SIL / Otwarta SMD / Otwarta
PMDPOL10 10A 6,0...14,0VDC 0,75...5,0VDC 50,8 x 12,95 x 8,3
33,0 x 13,46 x 8,8		 SIL / Otwarta SMD / Otwarta
PMDPOL16 16A 6,0...14,0VDC 0,75...5,0VDC 50,8 x 12,95 x 8,3
33,0 x 13,46 x 8,8		 SIL / Otwarta SMD / Otwarta
For traction


Seria MDC
Seria SMM
Technical data
Power 15W, 30W, 50W
Input voltage 14,4...42 VDC, 77...137,5 VDC
Output voltage 5V, 10V, 12 V, 15V, 24 V, 48V
Efficiency ≥ 91%
Operation temperature -40...+85 °C
Wymiary: W x L x H
Montaż PCB 90,0 x 65,5 37,0 mm
Montaż na szynie DIN 130,0 x 70,0 x 56,0 mm
Technical data
Power 50W
Input voltage 16,8...50,4 VDC, 28,8...100,8 VDC, 50,4...154 VDC, 85...264 VAC

Output voltage 5 V, 12 V, 15 V, 24 V,
2 x 12 V,2 x 15 V,
  2 x 24 V, 5,1/2 x 12 V, 5,1/2 x 15 V
Efficiency ≥ 89%
Operation temperature -40...+85 °C
Wymiary: W x L x H
  173,0 x 38,7 x 111,2 mm
  177,0 x 40,2 x 128,4 mm
Podłączenie H11 connector
Seria WRC
Seria URC
Technical data
Power 30 W, 60 W, 100 W, 150 W
Input voltage 13,5...50,4 VDC
 28,8...100,8 VDC
43,2...154 VDC

Output voltage 5 V, 12 V, 15 V, 24 V, 36 V, 60 V, 72 V,
  ±15 V, +24 V
Efficiency ≥ 92%
Operation temperature -40...+85 °C
Montaż: wall mounting
  DIN raił mounting
Podłacznie H15 connector
Technical data
Power 50 W, 75 W
Input voltage 14,4...154 VDC
Output voltage 5 V, 12 V, 15 V, 24 V, ±15 V, ±24 V,
  5/±12 V, 5/±15 V
Efficiency ≥ 85%
Operation temperature -40...+85 °C
Montaż: 19” plug-in
  wall mountingg
Podłacznie H15 connector
Seria PCMDS
Seria PMD/PCMD
Technical data
Power 60 W
Input voltage 16,8...50,4 VDC
50,4...154 VDC
Output voltage 5,2 V; 12 V; 24 V
Efficiency ≥ 85%
Operation temperature -40...+85 °C
Wymiary W x L x H
  130,0 x 69,0 x 30,0 mm
Podłacznie spring clamps
Technical data
Power 75 W, 120 W, 150 W, 200 W
Input voltage

10...45 VDC
25...60 VDC
30...75 VDC
  50...150 VDC
Output voltage 12 V, 15 V, 24 V, 36 V
Efficiency ≥ 86%
Operation temperature -25..+75 °C
Obudowa: UL94-V0
Podłacznie PMD: flying leads
  PCMD: screw connectors
Seria PCMD
Seria MPG
Technical data
Power 250 W, 400 W
Input voltage 16,8...36 VDC
50...150 VDC
60...154 VDC
Output voltage 12 V, 24 V, 30 V
Efficiency ≥ 88%
Operation temperature -25...+70 °C
Casing UL94-V0 / vakuumvergossen
Assembly Schraubklemmen
Technical data
Power MPG2: 500 W - 800 W
  MPG3: 750 W - 1.200 W
Input voltage 10,5...154,0 VDC (total)
Output voltage 12 V, 24 V, 48 V, 72 V, 110 V
Efficiency ≥ 88%
Operation temperature -40...+75 °C
Casing MPG 2: 316 x 180 x 141 mm
  MPG 3: 355 x 180 x 141 mm
Assembly Schraubklemmen

INWERTER DC/AC 500VA
Power 500 VA
Input voltage 110 VDC
Output voltage 1230 VAC
Efficiency ≥ 87%
Operation temperature -40...+70 °C
Casing UL94-V0 / vakuumvergossen
Wymiary W x L x H
  416,0 x 483,0 x 177,0 mm
  483,0 x 160,0 x 265,0 mm
