Indukcinis šildytuvas Suretherm Pro 1x P
  • Indukcinis šildytuvas Suretherm Pro 1x P

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Indukcinis šildytuvas Suretherm Pro 1x P

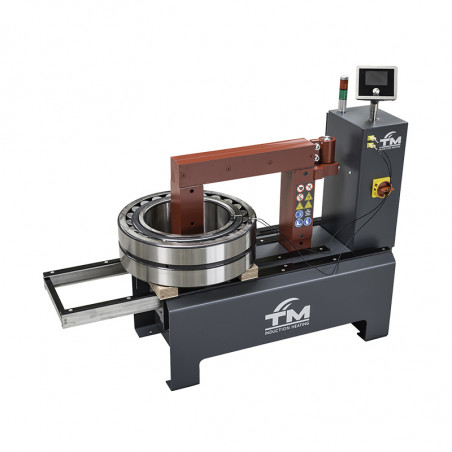

Induction heater SURETHERM PRO 1X P

With our new generation of low frequency equipment, we offer the most efficient heaters for a wide range of applications.

Our SURETHERM and EASYTHERM series assure a safe heating process, where only the workpiece is heated. The heaters are suitable for sealed and shielded bearings, pre-greased bearings, bearings with polyamide cages, gearwheels, pulleys, couplings, and bushings.



Specifications


Power Rating 12,8 kVA
Facility Power 400 - 480 - 575 V / 32 A / 50/60 Hz
Temperature Control Single / Dual
Weight 157 kg
Operating Area (WxH) 300 x 330 mm
Dimensions (LxBxH) 850 x 420 x 950 mm
Min. bore diameter (workpiece) ø 30 mm
Max. outer diameter (workpiece) ø 1000 mm
Max. weight (workpiece) 400 Kg


Atsiųskite užklausą

Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?

Susisiekite su mumis
KLAUSKITE PRODUKTO close
Dėkojame, kad atsiuntėte žinutę. Atsakysime kuo greičiau.
KLAUSKITE PRODUKTO close
Naršyti

Pridėti į norų sąrašą

tu turi būti prisijungęs

Induction heater SURETHERM PRO 1X P

With our new generation of low frequency equipment, we offer the most efficient heaters for a wide range of applications.

Our SURETHERM and EASYTHERM series assure a safe heating process, where only the workpiece is heated. The heaters are suitable for sealed and shielded bearings, pre-greased bearings, bearings with polyamide cages, gearwheels, pulleys, couplings, and bushings.



Specifications


Power Rating 12,8 kVA
Facility Power 400 - 480 - 575 V / 32 A / 50/60 Hz
Temperature Control Single / Dual
Weight 157 kg
Operating Area (WxH) 300 x 330 mm
Dimensions (LxBxH) 850 x 420 x 950 mm
Min. bore diameter (workpiece) ø 30 mm
Max. outer diameter (workpiece) ø 1000 mm
Max. weight (workpiece) 400 Kg
