Indukcinis šildytuvas Suretherm Pro 3x
  • Indukcinis šildytuvas Suretherm Pro 3x

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: TM Induction Heating

Indukcinis šildytuvas Suretherm Pro 3x

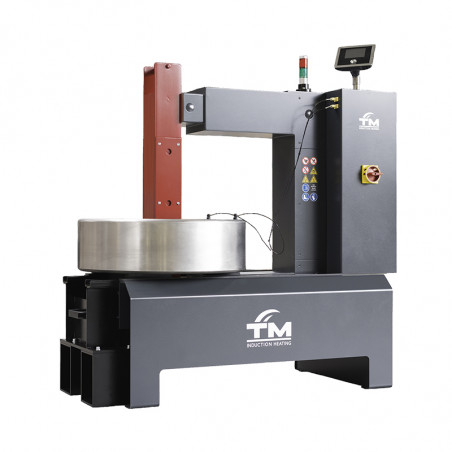

Induction heater SURETHERM PRO 3X

With our new generation of low frequency equipment, we offer the most efficient heaters for a wide range of applications.

Our SURETHERM and EASYTHERM series assure a safe heating process, where only the workpiece is heated. The heaters are suitable for sealed and shielded bearings, pre-greased bearings, bearings with polyamide cages, gearwheels, pulleys, couplings, and bushings.



Specifications


Power Rating 25,2 kVA
Facility Power 400 - 480 - 575 V / 63 A / 50/60 Hz
Temperature Control Single / Dual
Weight 280 kg
Operating Area (WxH) 430 x 900 mm
Dimensions (LxBxH) 1080 x 500 x 1250 mm
Min. bore diameter (workpiece) ø 45 mm
Max. outer diameter (workpiece) ø 1500 mm
Max. weight (workpiece) 800 Kg


mažiau
Skaityk daugiau

Atsiųskite užklausą

Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?

Susisiekite su mumis
KLAUSKITE PRODUKTO close
Dėkojame, kad atsiuntėte žinutę. Atsakysime kuo greičiau.
KLAUSKITE PRODUKTO close
Naršyti
atsiųsti paklausimą

Pridėti į norų sąrašą

tu turi būti prisijungęs

Induction heater SURETHERM PRO 3X

With our new generation of low frequency equipment, we offer the most efficient heaters for a wide range of applications.

Our SURETHERM and EASYTHERM series assure a safe heating process, where only the workpiece is heated. The heaters are suitable for sealed and shielded bearings, pre-greased bearings, bearings with polyamide cages, gearwheels, pulleys, couplings, and bushings.



Specifications


Power Rating 25,2 kVA
Facility Power 400 - 480 - 575 V / 63 A / 50/60 Hz
Temperature Control Single / Dual
Weight 280 kg
Operating Area (WxH) 430 x 900 mm
Dimensions (LxBxH) 1080 x 500 x 1250 mm
Min. bore diameter (workpiece) ø 45 mm
Max. outer diameter (workpiece) ø 1500 mm
Max. weight (workpiece) 800 Kg
