Gamintojas: Eaton / CEAG

AB 05 LED - atsparus vibracijos lubų žibintui ex zonoms


AB 80 / AB 05 LED / AB 05 / AB 12 NAV 70

(Zone 1, 2, 21, 22)


The wall and ceiling light fixtures for particularly difficult operating conditions

The impact-resistant and flameproof luminaires of the series AB 80, AB 05 and AB 12 provide a safe and reliable light - even at extreme ambient temperatures and under extreme environmental conditions, such as those encountered in the oil and gas production industry, in- and outdoor areas of chemical plants or in heavy industry. This is due to the robust powder- coated light metal housing, stainless steel screws and a cover or tube made of scratchresistant borosilicate glass.

The proper illuminant for your application

The AB 05 LED luminaire has an innovative 22 W LED module. The outstanding features are not only the high energy efficiency but also the resistance to shock and vibration. The luminaires of the series AB 05 and AB 80 can be fitted with incandescent or energysaving lamps and they are used for lighting outdoor pathways or walkways and corridors. High-pressure discharge lamps are used in the luminaire series AB 05 and AB 12 NAV for lighting applications requiring a high illumination level at particularly low ambient temperatures.

AB 80 - the standard solution

This light fitting can be fitted with incandescent lamps with an E27 socket up to 100 W and is used as a wall or ceiling light in the chemical industry. Due to the robust enclosure and the ambient temperature range up to +55°C, this light fitting is suitable for a wide variety of applications.

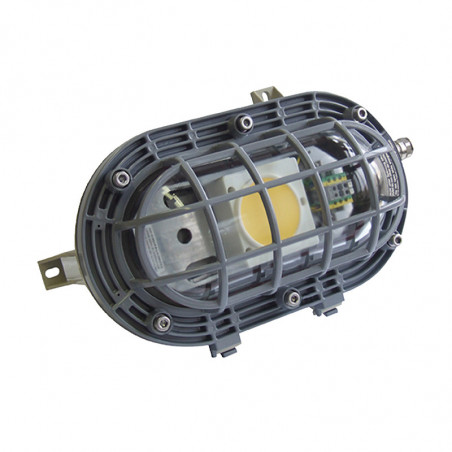

AB 05 LED - robust against vibrations

This extremely robust luminaire with integral wire guard and its high-efficiency LED module is resistant against shocks and vibrations, has an extremely long lamp life and has also been approved for extremely low ambient temperatures as low as minus 55 ° C. Due to an optimized light distribution for low and medium suspension heights, the AB 05 LED is ideal for illuminating walkways, corridors, stairways and storage rooms and for use in all areas with limited space.

AB 05 - solid and reliable

The winning features of the robust housing with integral wire guard are its light weight and easy installation. The ballast for high pressure discharge lamps is mounted on a removable frame. This simplifies maintenance. An internal aluminium reflector provides a uniform light distribution.

Features
  • Extremely rugged design for extremely harsh environments
  • Various illuminants can be used
  • Wide ambient temperature range depending on the version (-55°C to +55°C)
  • High degree of protection up to IP 67



AB 12 NAV 70 - even for extreme cold environments

This compact Ex-d light fixture for high pressure sodium lamps is suitable for individual lighting solutions for areas with limited mounting space. Lamp, ballast and ignitor are incorporated on a compact module, which allows easy re-lamping and maintenance work. An optional external reflector allows individual illumination of working places. The Arctic version even allows the use of this versatile light fitting in extreme temperature ranges from minus 50 °C up to plus 50 °C within the highest explosion group IIC, e.g. for hydrogen atmospheres.



Technical data


AB 80 / AB 05 LED

  AB 80 AB 05 LED
EC-Type Examination Certificate LOM 01 ATEX 2041 X BVS 09 ATEX E 014 X
IECEx Certificate of Conformity   IECEx BVS 09.0032X
Marking accd. to 94/9/EC II 2 G Ex d IIB T4.. T6 Gb

II 2 G Ex d IIB T6 (Tu ≤ +40°C)/T5 Gb

II 2 D Ex tb IIIC T80 °C (Tu ≤ +40°C)/T100 °C Db IP66
Marking accd. to IECEx

Ex d IIB T6 (Tu ≤ +40°C)/T5 Gb

Ex tb IIIC T80°C (Tu +40°C)/T100°C Db
Permissible ambient temperature -20 °C up to +55 °C -55 °C up to +55 °C
Rated voltage max. 250 V 230 V AC
Power consumption   Ok. 23 W
Frequency   50 – 60 Hz
Protection class I I
Lamp / Illuminant Incandescent lamp LED module 22 W (incl.)
Rated luminous flux 1)
Rated luminous flux of the luminaire   1453 lm
Lamp cap E27 LED module
Light output ratio 60% 100%
Dimensions (L x W x H) 282 x 205 x 150 360 x 230 x 175
Connecting terminals L1, N, PE: 2 x 2.5 mm2 L1, N, PE: type MUT 4, 2 x 4 mm2
Enclosure earth 2 x 6 mm2 2 x 6 mm2
Enclosure colour grey grey
Enclosure material cast iron light alloy
Weight 6.6 kg 7.0 kg

Cable glands/gland plates/enclosure drilling

 2 x M25 x 1,5 lub 2 x 3/4'' NPT (z adapterem) 1 x M20/M25 x 1.5, 2 x M20/M25 x 1.5, 1 x 3/4" NPT lub 2 x 3/4" NPT na zapytanie
Type of mounting ceiling/wall mounting ceiling/wall mounting
Degree of protection accd. to EN 60529 IP55 IP66
Protective cover / protective bowl borosilicate glass borosilicate glass
Screw plugs 1 x 3/4“ Ex-d screw plug 1 x M20/M25 or 3/4“ NPT Ex-d screw plug

1) depends on used lamps



AB 05 Ex-e / AB 05 Ex nR

  AB 05 Ex-e AB 05 Ex nR
EC-Type Examination Certificate BVS 07 ATEX E 152 X BVS 07 ATEX E 151
IECEx Certificate of Conformity IECEx BVS 10.0070X IECEx BVS 10.0071
Marking accd. to 94/9/EC II 2 G Ex de IIC T3 2)/T2 Gb

II 2 D Ex tb IIIC T125 °C Db IP66		 II 3 G nR II T4/T3 Gc

II 3 D Ex tc IIIC T100°C/ T125°C/ T140°C Dc IP66
Marking accd. to IECEx Ex de IIC T3 2)/T2 Gb

Ex tb IIIC T125 °C Db IP66		 Ex nR IIC T4/T3 Gc

Ex tc IIIC T100°C/T125°C/T140°C Dc IP66
Permissible ambient temperature -20 °C up to +55 °C -55 °C up to +55 °C
Rated voltage max. 250 V 230 V AC
Power factor cos ϕ   ≥ 0.9
Frequency 50 – 60 Hz 50 – 60 Hz
Protection class I I
Lamp / Illuminant Incandescent lamp max. 60 W

incandescent lamp max. 200 W,
high pressure sodium lamp HSE 70 W,
mercury vapour HME 80 W, compact fluorescent lamp max. 23 W
Rated luminous flux 710 lm1) 1)
Lamp cap E27 accord. IEC 60238 E27 accord. IEC 60238
Light output ratio 70% 70%
Dimensions (L x W x H) 360 x 230 x 175 360 x 230 x 175
Connecting terminals L1, N, PE: 2 x 2.5 mm2 L1, N, PE: 2 x 2.5 mm2
Enclosure earth 2 x 6 mm2 2 x 6 mm2
Enclosure colour grey grey
Enclosure material light alloy light alloy
Weight 5.9 kg 6.9 kg

Cable glands/gland plates/enclosure drilling

 1 x M20/M25 x 1.5, 2 x M20/M25 x 1.5, 1 x 3/4“ NPT lub 2 x 3/4“ NPT 1 x M20/M25 x 1.5, 2 x M20/M25 x 1.5, 1 x 3/4“ NPT lub 2 x 3/4“ NPT
Type of mounting ceiling-/wall mounting ceiling-/wall mounting
Degree of protection accd. to EN 60529 IP66 IP66
Protective cover / protective bowl szkło borosilicate glass borosilicate glass
Screw plugs max. 1 x M20/M25 or 3/4“ NPT Ex-d screw plug max. 1 x M20/M25 or 3/4“ NPT Ex-d screw plug
1) depends on used lamps

2) T3 when using a 60 W incandescent lamp accord. to EN 60064 and DIN 49810 with“T”-marking



Additional luminaire data AB 05 Ex nR

Lamp Power Luminous flux 1) Temperature class II 2 G max. surface temp. II 2 D
Compact fluorescent lamp 2) 23 W 1450 lm T4 T 130oC
High pressure sodium lamp 70 W 5600 lm T4 T 125oC
Mercury vapour HME 80 W 3800 lm T4 T 125 °C
Incandescent lamp IGA 200 W 3150 lm T3 T 140oC
1) depends on used lamps

2) TU ≤ 30 °C



AB 05 Ex-d IIB +H2 / AB 05 Ex-d IIB / AB12 NAV70 / AB 12 NAV 70 Arctic

  AB 05 Ex-d IIB +H2 / AB 05 Ex-d IIB AB12 NAV70 / AB 12 NAV 70 Arctic
EC-Type Examination Certificate PTB 08 ATEX 1001 X LOM 02 ATEX 2013X
IECEx Certificate of Conformity   IECEx BKI 07.0008X
Marking accd. to 94/9/EC II 2 G Ex d IIB (+H2) T4/T3 Gb

II 2 G Ex d IIB T4/T3 Db		 II 2 G Ex d IIB/IIC T3 Gb
II 2 D Ex t IIIC T155 °C Db

II 2 G Ex d IIC T3 Gb
II 2 D Ex t IIIC T155 °C Db
Marking accd. to IECEx   Ex d IIB T3 / Ex d IIC T3
Ex tD A21 IP66 T150°C
Permissible ambient temperature -20 °C up to +55 °C

-20 °C up to +55 °C (gas-group IIC);
-45 °C up to +55 °C (gas-group IIB) /
-50 °C up to +40 °C (Arctic)
Rated voltage 230 V AC 230 V AC
Rated current   0.36 A
Power factor cos ϕ ≥ 0.9 ≥ 0.9
Frequency 50 - 60 Hz / 50 Hz 50 Hz
Protection class I I
Lamp name

incandescent lamp up to 200 W, high pressure sodium
lamp HSE 70 W, mercury vapour HME 80 W

 High pressure mercury vapour HSE 70 W
Rated luminous flux 1) 5600 lm 1)
Lamp cap E27 accord. IEC 60238 E27 accord. IEC 60238
Light output ratio 70% 51%
Dimensions (L x W x H) 360 x 230 x 175 460 x 140 x 144 / 530 x 140 x 144
Connecting terminals L1, N, PE: 2 x 2.5 mm2 L1, N, PE: 2 x 2.5 mm2, PE: 2 x 6 mm2
Enclosure earth 2 x 6 mm2 2 x 6 mm2
Enclosure colour grey grey
Enclosure material light alloy light alloy
Weight 6.9 kg 5.3 kg / 5.6 kg

Cable glands/gland plates/enclosure drilling

1 x M20/M25 x 1.5, 2 x M20/M25 x 1.5,
1 x 3/4” NPT or 2 x 3/4” NPT

2 x 3/4“ thread (Ex-d) /
2 x 3/4“ or 2 x M25 thread (Ex-d)
Type of mounting ceiling-/wall mounting ceiling-/wall mounting
Degree of protection accd. to EN 60529 IP66 IP67
Protective cover / protective bowl borosilicate glass borosilicate glass
Screw plugs max. 1 x M20/M25 or 3/4” NPT Ex-d screw plug 1 x 3/4'' Ex-d screw plug

1) depends on used lamps



Additional luminaire data AB 05 Ex-d IIB +H2 / AB 05 Ex-d IIB

Lamp Power Luminous flux 1) Permissible ambient temperature Temperature class II 2 G
Incandescent lamp IGA 40 W 430 lm T4 -20 °C up to +55 °C
Incandescent lamp IGA 60 W 3100 lm T4 -20 °C up to +55 °C
Incandescent lamp IGA 100 W 1380 lm T4 -20 °C up to +55 °C
Incandescent lamp IGA 200 W 3150 lm T4 -20 °C up to +55 °C
High pressure sodium lamp 70 W 5600 lm T4 -20 °C up to +40 °C
Mercury vapour HME 80 W 3800 lm T3 -20 °C up to +40 °C

Dimensions

Accesories


Type Content Application OU Order No.
GAB 80 Wire guard, galvanized AB 80 1 NOR 000 005 120 439
Lamp HSE 70W High pressure sodium lamp 70 W E27 AB 05, AB 12 NAV 70 1 3 2475 900 012
Lamp HST 70W High pressure sodium lamp 70 W E27 AB 12 NAV 70 Arctic 1 3 1750 301 070
D92

Ceiling mounting bracket incl. screws and
polyamide washer - Stainless steel (2 pcs.)

 AB 12 NAV 70 1 2 2480 092 000
A5 Ceiling bracket hot galvanized (1 pc.) AB 12 NAV 70 1 NOR 000 005 009 196
BFP 45 Wall bracket 45° hot galvanized (1 pc.) AB 12 NAV 70 1 NOR 003 045 060 471
Reflector
RAB 108		 Material: AISI 304 AB 12 NAV 70 1 NOR 003 045 060 471
Material: AISI 304 with wire guard white AB 12 NAV 70 1 NOR 003 045 060 819
Material: AISI 316 AB 12 NAV 70 1 NOR 003 165 060 471
Material: AISI 316 with wire guard white AB 12 NAV 70 1 NOR 003 165 060 819



Polar curve


Polar curve AB 05 LED

Polar curve AB 05 Ex de

Polar curve AB 05 nR

Polar curve AB 12 NAV 70 without reflector

Polar curve AB 12 NAV 70 with reflector

Ordering details


Type Lamp/Illuminant Rated luminous flux 1) Weight Metal thread Plug Dust cap Order No.
AB 80
AB 80 IGA 60W, 100W/TC-DSE 11W 710 lm / 1360 lm / 660 lm 6.6 kg 2 x 3/4‘‘ NPT 1 x 3/4‘‘ screw plug   NOR 000 005 120 124
IGA 60W, 100W/TC-DSE 11W 710 lm 6.6 kg 2 x M25 1 x M25 screw plug x NOR 000 005 120 123
AB05 LED including LED-module
AB05 LED LED module 22 W 2000 lm 7.0 kg 1 x M20 - x AB05 251 011 0301
LED module 22 W 2000 lm 7.0 kg 1 x M25 - x AB05 251 021 0301
LED module 22 W 2000 lm 7.0 kg 2 x M20 1 x M20 Ex-d x AB05 251 111 0301
LED module 22 W 2000 lm 7.0 kg 2 x M25 1 x M25 Ex-d x AB05 251 221 0301
AB05 Ex-e
AB05 Ex-e IGA 60W 710 lm 5.9 kg 1 x M20 - x AB05 531 011 0001
IGA 60W 710 lm 5.9 kg 1 x M25 - x AB05 531 021 0001
IGA 60W 710 lm 5.9 kg 2 x M20 1 x M25 Ex-d x AB05 531 111 0001
IGA 60W 710 lm 5.9 kg 2 x M25 - x AB05 531 221 0001
AB05 Ex nR
AB05 Ex nR HSE 70W 5600 lm 5.4 kg 1 x M20 - x AB05 611 011 0001
HSE 70W 5600 lm 6.9 kg 1 x M25 - x AB05 611 021 0002
HSE 70W 5600 lm 5.4 kg 2 x M20 1 x M20 Ex-d x AB05 611 111 0001
HSE 70W 5600 lm 5.4 kg 2 x M25 1 x M25 Ex-d x AB05 611 221 0001
HME 80W 3800 lm 6.9 kg 2 x M25 1 x M25 Ex-d x AB05 621 221 0001
IGA 200W 3100 lm 6.9 kg 1 x M25 - x AB05 631 021 0001
AB 05 Ex-d IIB +H2
AB 05 Ex-d IIB +H2 HSE 70W 5600 lm 6.9 kg 1 x M20 - x AB05 111 011 0001
HSE 70W 5600 lm 6.9 kg 1 x NPT 1/2” - x AB05 111 031 0001
AB 05 Ex-d IIB
AB 05 Ex-d IIB HSE 70W 5600 lm 6.9 kg 1 x M20 - x AB05 211 011 0001
HSE 70W 5600 lm 6.9 kg 1 x M20 1 x M20 Ex-d x AB05 211 111 0001
AB 12 NAV 70 ...

AB 12 NAV 70, IIC
-20°C up to +40°C

 HSE 70W 5600 lm 5.3 kg 2 x 3/4” NPT 1 x 3/4'' Ex-d x NOR 000 005 060 074

AB 12 NAV 70, IIB
-45°C up to +55°C

HSE 70W

 5600 lm 5.3 kg 2 x 3/4” NPT 1 x 3/4'' Ex-d x NOR 000 005 060 075
AB 12 NAV 70 Arctic ...

AB 12 NAV 70 Arctic IIC,
-50°C up to +40°C

 HSE 70W 5600 lm 5.6 kg 2 x 3/4” NPT 1 x 3/4'' Ex-d x 1 1750 000 353
HSE 70W 5600 lm 5.6 kg 2 x M25 1 x M25 Ex-d x 1 1750 000 354

1) depends on used lamps

mažiau
Skaityk daugiau

Atsiųskite užklausą

Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?

Susisiekite su mumis
KLAUSKITE PRODUKTO close
Dėkojame, kad atsiuntėte žinutę. Atsakysime kuo greičiau.
KLAUSKITE PRODUKTO close
Naršyti
atsiųsti paklausimą

Pridėti į norų sąrašą

tu turi būti prisijungęs


AB 80 / AB 05 LED / AB 05 / AB 12 NAV 70

(Zone 1, 2, 21, 22)


The wall and ceiling light fixtures for particularly difficult operating conditions

The impact-resistant and flameproof luminaires of the series AB 80, AB 05 and AB 12 provide a safe and reliable light - even at extreme ambient temperatures and under extreme environmental conditions, such as those encountered in the oil and gas production industry, in- and outdoor areas of chemical plants or in heavy industry. This is due to the robust powder- coated light metal housing, stainless steel screws and a cover or tube made of scratchresistant borosilicate glass.

The proper illuminant for your application

The AB 05 LED luminaire has an innovative 22 W LED module. The outstanding features are not only the high energy efficiency but also the resistance to shock and vibration. The luminaires of the series AB 05 and AB 80 can be fitted with incandescent or energysaving lamps and they are used for lighting outdoor pathways or walkways and corridors. High-pressure discharge lamps are used in the luminaire series AB 05 and AB 12 NAV for lighting applications requiring a high illumination level at particularly low ambient temperatures.

AB 80 - the standard solution

This light fitting can be fitted with incandescent lamps with an E27 socket up to 100 W and is used as a wall or ceiling light in the chemical industry. Due to the robust enclosure and the ambient temperature range up to +55°C, this light fitting is suitable for a wide variety of applications.

AB 05 LED - robust against vibrations

This extremely robust luminaire with integral wire guard and its high-efficiency LED module is resistant against shocks and vibrations, has an extremely long lamp life and has also been approved for extremely low ambient temperatures as low as minus 55 ° C. Due to an optimized light distribution for low and medium suspension heights, the AB 05 LED is ideal for illuminating walkways, corridors, stairways and storage rooms and for use in all areas with limited space.

AB 05 - solid and reliable

The winning features of the robust housing with integral wire guard are its light weight and easy installation. The ballast for high pressure discharge lamps is mounted on a removable frame. This simplifies maintenance. An internal aluminium reflector provides a uniform light distribution.

Features
  • Extremely rugged design for extremely harsh environments
  • Various illuminants can be used
  • Wide ambient temperature range depending on the version (-55°C to +55°C)
  • High degree of protection up to IP 67



AB 12 NAV 70 - even for extreme cold environments

This compact Ex-d light fixture for high pressure sodium lamps is suitable for individual lighting solutions for areas with limited mounting space. Lamp, ballast and ignitor are incorporated on a compact module, which allows easy re-lamping and maintenance work. An optional external reflector allows individual illumination of working places. The Arctic version even allows the use of this versatile light fitting in extreme temperature ranges from minus 50 °C up to plus 50 °C within the highest explosion group IIC, e.g. for hydrogen atmospheres.



Technical data


AB 80 / AB 05 LED

  AB 80 AB 05 LED
EC-Type Examination Certificate LOM 01 ATEX 2041 X BVS 09 ATEX E 014 X
IECEx Certificate of Conformity   IECEx BVS 09.0032X
Marking accd. to 94/9/EC II 2 G Ex d IIB T4.. T6 Gb

II 2 G Ex d IIB T6 (Tu ≤ +40°C)/T5 Gb

II 2 D Ex tb IIIC T80 °C (Tu ≤ +40°C)/T100 °C Db IP66
Marking accd. to IECEx

Ex d IIB T6 (Tu ≤ +40°C)/T5 Gb

Ex tb IIIC T80°C (Tu +40°C)/T100°C Db
Permissible ambient temperature -20 °C up to +55 °C -55 °C up to +55 °C
Rated voltage max. 250 V 230 V AC
Power consumption   Ok. 23 W
Frequency   50 – 60 Hz
Protection class I I
Lamp / Illuminant Incandescent lamp LED module 22 W (incl.)
Rated luminous flux 1)
Rated luminous flux of the luminaire   1453 lm
Lamp cap E27 LED module
Light output ratio 60% 100%
Dimensions (L x W x H) 282 x 205 x 150 360 x 230 x 175
Connecting terminals L1, N, PE: 2 x 2.5 mm2 L1, N, PE: type MUT 4, 2 x 4 mm2
Enclosure earth 2 x 6 mm2 2 x 6 mm2
Enclosure colour grey grey
Enclosure material cast iron light alloy
Weight 6.6 kg 7.0 kg

Cable glands/gland plates/enclosure drilling

 2 x M25 x 1,5 lub 2 x 3/4'' NPT (z adapterem) 1 x M20/M25 x 1.5, 2 x M20/M25 x 1.5, 1 x 3/4" NPT lub 2 x 3/4" NPT na zapytanie
Type of mounting ceiling/wall mounting ceiling/wall mounting
Degree of protection accd. to EN 60529 IP55 IP66
Protective cover / protective bowl borosilicate glass borosilicate glass
Screw plugs 1 x 3/4“ Ex-d screw plug 1 x M20/M25 or 3/4“ NPT Ex-d screw plug

1) depends on used lamps



AB 05 Ex-e / AB 05 Ex nR

  AB 05 Ex-e AB 05 Ex nR
EC-Type Examination Certificate BVS 07 ATEX E 152 X BVS 07 ATEX E 151
IECEx Certificate of Conformity IECEx BVS 10.0070X IECEx BVS 10.0071
Marking accd. to 94/9/EC II 2 G Ex de IIC T3 2)/T2 Gb

II 2 D Ex tb IIIC T125 °C Db IP66		 II 3 G nR II T4/T3 Gc

II 3 D Ex tc IIIC T100°C/ T125°C/ T140°C Dc IP66
Marking accd. to IECEx Ex de IIC T3 2)/T2 Gb

Ex tb IIIC T125 °C Db IP66		 Ex nR IIC T4/T3 Gc

Ex tc IIIC T100°C/T125°C/T140°C Dc IP66
Permissible ambient temperature -20 °C up to +55 °C -55 °C up to +55 °C
Rated voltage max. 250 V 230 V AC
Power factor cos ϕ   ≥ 0.9
Frequency 50 – 60 Hz 50 – 60 Hz
Protection class I I
Lamp / Illuminant Incandescent lamp max. 60 W

incandescent lamp max. 200 W,
high pressure sodium lamp HSE 70 W,
mercury vapour HME 80 W, compact fluorescent lamp max. 23 W
Rated luminous flux 710 lm1) 1)
Lamp cap E27 accord. IEC 60238 E27 accord. IEC 60238
Light output ratio 70% 70%
Dimensions (L x W x H) 360 x 230 x 175 360 x 230 x 175
Connecting terminals L1, N, PE: 2 x 2.5 mm2 L1, N, PE: 2 x 2.5 mm2
Enclosure earth 2 x 6 mm2 2 x 6 mm2
Enclosure colour grey grey
Enclosure material light alloy light alloy
Weight 5.9 kg 6.9 kg

Cable glands/gland plates/enclosure drilling

 1 x M20/M25 x 1.5, 2 x M20/M25 x 1.5, 1 x 3/4“ NPT lub 2 x 3/4“ NPT 1 x M20/M25 x 1.5, 2 x M20/M25 x 1.5, 1 x 3/4“ NPT lub 2 x 3/4“ NPT
Type of mounting ceiling-/wall mounting ceiling-/wall mounting
Degree of protection accd. to EN 60529 IP66 IP66
Protective cover / protective bowl szkło borosilicate glass borosilicate glass
Screw plugs max. 1 x M20/M25 or 3/4“ NPT Ex-d screw plug max. 1 x M20/M25 or 3/4“ NPT Ex-d screw plug
1) depends on used lamps

2) T3 when using a 60 W incandescent lamp accord. to EN 60064 and DIN 49810 with“T”-marking



Additional luminaire data AB 05 Ex nR

Lamp Power Luminous flux 1) Temperature class II 2 G max. surface temp. II 2 D
Compact fluorescent lamp 2) 23 W 1450 lm T4 T 130oC
High pressure sodium lamp 70 W 5600 lm T4 T 125oC
Mercury vapour HME 80 W 3800 lm T4 T 125 °C
Incandescent lamp IGA 200 W 3150 lm T3 T 140oC
1) depends on used lamps

2) TU ≤ 30 °C



AB 05 Ex-d IIB +H2 / AB 05 Ex-d IIB / AB12 NAV70 / AB 12 NAV 70 Arctic

  AB 05 Ex-d IIB +H2 / AB 05 Ex-d IIB AB12 NAV70 / AB 12 NAV 70 Arctic
EC-Type Examination Certificate PTB 08 ATEX 1001 X LOM 02 ATEX 2013X
IECEx Certificate of Conformity   IECEx BKI 07.0008X
Marking accd. to 94/9/EC II 2 G Ex d IIB (+H2) T4/T3 Gb

II 2 G Ex d IIB T4/T3 Db		 II 2 G Ex d IIB/IIC T3 Gb
II 2 D Ex t IIIC T155 °C Db

II 2 G Ex d IIC T3 Gb
II 2 D Ex t IIIC T155 °C Db
Marking accd. to IECEx   Ex d IIB T3 / Ex d IIC T3
Ex tD A21 IP66 T150°C
Permissible ambient temperature -20 °C up to +55 °C

-20 °C up to +55 °C (gas-group IIC);
-45 °C up to +55 °C (gas-group IIB) /
-50 °C up to +40 °C (Arctic)
Rated voltage 230 V AC 230 V AC
Rated current   0.36 A
Power factor cos ϕ ≥ 0.9 ≥ 0.9
Frequency 50 - 60 Hz / 50 Hz 50 Hz
Protection class I I
Lamp name

incandescent lamp up to 200 W, high pressure sodium
lamp HSE 70 W, mercury vapour HME 80 W

 High pressure mercury vapour HSE 70 W
Rated luminous flux 1) 5600 lm 1)
Lamp cap E27 accord. IEC 60238 E27 accord. IEC 60238
Light output ratio 70% 51%
Dimensions (L x W x H) 360 x 230 x 175 460 x 140 x 144 / 530 x 140 x 144
Connecting terminals L1, N, PE: 2 x 2.5 mm2 L1, N, PE: 2 x 2.5 mm2, PE: 2 x 6 mm2
Enclosure earth 2 x 6 mm2 2 x 6 mm2
Enclosure colour grey grey
Enclosure material light alloy light alloy
Weight 6.9 kg 5.3 kg / 5.6 kg

Cable glands/gland plates/enclosure drilling

1 x M20/M25 x 1.5, 2 x M20/M25 x 1.5,
1 x 3/4” NPT or 2 x 3/4” NPT

2 x 3/4“ thread (Ex-d) /
2 x 3/4“ or 2 x M25 thread (Ex-d)
Type of mounting ceiling-/wall mounting ceiling-/wall mounting
Degree of protection accd. to EN 60529 IP66 IP67
Protective cover / protective bowl borosilicate glass borosilicate glass
Screw plugs max. 1 x M20/M25 or 3/4” NPT Ex-d screw plug 1 x 3/4'' Ex-d screw plug

1) depends on used lamps



Additional luminaire data AB 05 Ex-d IIB +H2 / AB 05 Ex-d IIB

Lamp Power Luminous flux 1) Permissible ambient temperature Temperature class II 2 G
Incandescent lamp IGA 40 W 430 lm T4 -20 °C up to +55 °C
Incandescent lamp IGA 60 W 3100 lm T4 -20 °C up to +55 °C
Incandescent lamp IGA 100 W 1380 lm T4 -20 °C up to +55 °C
Incandescent lamp IGA 200 W 3150 lm T4 -20 °C up to +55 °C
High pressure sodium lamp 70 W 5600 lm T4 -20 °C up to +40 °C
Mercury vapour HME 80 W 3800 lm T3 -20 °C up to +40 °C

Dimensions

Accesories


Type Content Application OU Order No.
GAB 80 Wire guard, galvanized AB 80 1 NOR 000 005 120 439
Lamp HSE 70W High pressure sodium lamp 70 W E27 AB 05, AB 12 NAV 70 1 3 2475 900 012
Lamp HST 70W High pressure sodium lamp 70 W E27 AB 12 NAV 70 Arctic 1 3 1750 301 070
D92

Ceiling mounting bracket incl. screws and
polyamide washer - Stainless steel (2 pcs.)

 AB 12 NAV 70 1 2 2480 092 000
A5 Ceiling bracket hot galvanized (1 pc.) AB 12 NAV 70 1 NOR 000 005 009 196
BFP 45 Wall bracket 45° hot galvanized (1 pc.) AB 12 NAV 70 1 NOR 003 045 060 471
Reflector
RAB 108		 Material: AISI 304 AB 12 NAV 70 1 NOR 003 045 060 471
Material: AISI 304 with wire guard white AB 12 NAV 70 1 NOR 003 045 060 819
Material: AISI 316 AB 12 NAV 70 1 NOR 003 165 060 471
Material: AISI 316 with wire guard white AB 12 NAV 70 1 NOR 003 165 060 819



Polar curve


Polar curve AB 05 LED

Polar curve AB 05 Ex de

Polar curve AB 05 nR

Polar curve AB 12 NAV 70 without reflector

Polar curve AB 12 NAV 70 with reflector

Ordering details


Type Lamp/Illuminant Rated luminous flux 1) Weight Metal thread Plug Dust cap Order No.
AB 80
AB 80 IGA 60W, 100W/TC-DSE 11W 710 lm / 1360 lm / 660 lm 6.6 kg 2 x 3/4‘‘ NPT 1 x 3/4‘‘ screw plug   NOR 000 005 120 124
IGA 60W, 100W/TC-DSE 11W 710 lm 6.6 kg 2 x M25 1 x M25 screw plug x NOR 000 005 120 123
AB05 LED including LED-module
AB05 LED LED module 22 W 2000 lm 7.0 kg 1 x M20 - x AB05 251 011 0301
LED module 22 W 2000 lm 7.0 kg 1 x M25 - x AB05 251 021 0301
LED module 22 W 2000 lm 7.0 kg 2 x M20 1 x M20 Ex-d x AB05 251 111 0301
LED module 22 W 2000 lm 7.0 kg 2 x M25 1 x M25 Ex-d x AB05 251 221 0301
AB05 Ex-e
AB05 Ex-e IGA 60W 710 lm 5.9 kg 1 x M20 - x AB05 531 011 0001
IGA 60W 710 lm 5.9 kg 1 x M25 - x AB05 531 021 0001
IGA 60W 710 lm 5.9 kg 2 x M20 1 x M25 Ex-d x AB05 531 111 0001
IGA 60W 710 lm 5.9 kg 2 x M25 - x AB05 531 221 0001
AB05 Ex nR
AB05 Ex nR HSE 70W 5600 lm 5.4 kg 1 x M20 - x AB05 611 011 0001
HSE 70W 5600 lm 6.9 kg 1 x M25 - x AB05 611 021 0002
HSE 70W 5600 lm 5.4 kg 2 x M20 1 x M20 Ex-d x AB05 611 111 0001
HSE 70W 5600 lm 5.4 kg 2 x M25 1 x M25 Ex-d x AB05 611 221 0001
HME 80W 3800 lm 6.9 kg 2 x M25 1 x M25 Ex-d x AB05 621 221 0001
IGA 200W 3100 lm 6.9 kg 1 x M25 - x AB05 631 021 0001
AB 05 Ex-d IIB +H2
AB 05 Ex-d IIB +H2 HSE 70W 5600 lm 6.9 kg 1 x M20 - x AB05 111 011 0001
HSE 70W 5600 lm 6.9 kg 1 x NPT 1/2” - x AB05 111 031 0001
AB 05 Ex-d IIB
AB 05 Ex-d IIB HSE 70W 5600 lm 6.9 kg 1 x M20 - x AB05 211 011 0001
HSE 70W 5600 lm 6.9 kg 1 x M20 1 x M20 Ex-d x AB05 211 111 0001
AB 12 NAV 70 ...

AB 12 NAV 70, IIC
-20°C up to +40°C

 HSE 70W 5600 lm 5.3 kg 2 x 3/4” NPT 1 x 3/4'' Ex-d x NOR 000 005 060 074

AB 12 NAV 70, IIB
-45°C up to +55°C

HSE 70W

 5600 lm 5.3 kg 2 x 3/4” NPT 1 x 3/4'' Ex-d x NOR 000 005 060 075
AB 12 NAV 70 Arctic ...

AB 12 NAV 70 Arctic IIC,
-50°C up to +40°C

 HSE 70W 5600 lm 5.6 kg 2 x 3/4” NPT 1 x 3/4'' Ex-d x 1 1750 000 353
HSE 70W 5600 lm 5.6 kg 2 x M25 1 x M25 Ex-d x 1 1750 000 354

1) depends on used lamps

mažiau
Skaityk daugiau

Straipsniai

Ignition sources covered by the ATEX directive Ignition sources covered by the ATEX directive
Paskelbta: Žinių bazė, Apsauga nuo sprogimo
05-10-2021
Tak jak istnieją normy, które opisują większość zagadnień związanych z ochroną przeciwwybuchową, tak też istnieje...
Read more
Komentarai (0)
