Protection mode:
II 2GD Ex ed II T6 T85°C Ex tD A21 IP66 (Amb.temperature -20°C to +55°C)
Certificate:ATEX, IECEx, GHOST-R.

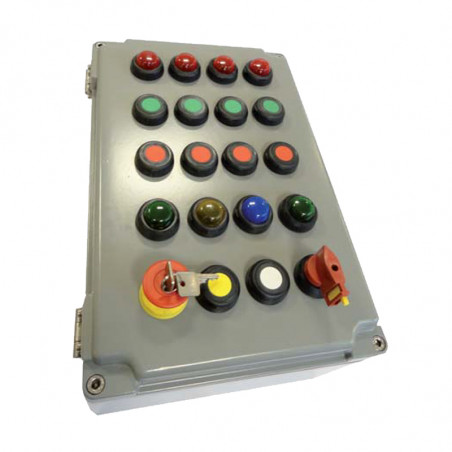

Enclosures series “CSA…” are used as signaling and command box with operators on cover (pushbytton, indicator lights, selectors).
Materials: Body and cover: alluminium. Bolt and screws: stainless steel
Threads: on request GASUNI 6125, NPT, ISO Metric.
Standard painting:External grey epoxy RAL 7037, internal anticondensation orange RAL2004.
Type | External dimensions | Internal dimensions | Fixing holes | Volume | Weight | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
A | B | C | D | E | F | G | H | Ø | Dm3 | Kg | |
CSA0 |
128 | 260 | 174 | 246 | 114 | 154 | 210 | 108 | 6,5 | 57,9 | 3,2 |
CSA 11 |
260 | 260 | 174 | 246 | 246 | 154 | 210 | 240 | 6,5 | 117,7 | 4,7 |
CSA 12 |
326 | 260 | 174 | 246 | 312 | 154 | 210 | 306 | 6,5 | 147,5 | 5,3 |
CSA 13 |
393 | 260 | 174 | 246 | 379 | 154 | 210 | 373 | 6,5 | 177,8 | 6,4 |
CSA 35 |
480 | 480 | 185 | 450 | 450 | 147 | 430 | - | 10 | 397,9 | 17,1 |
