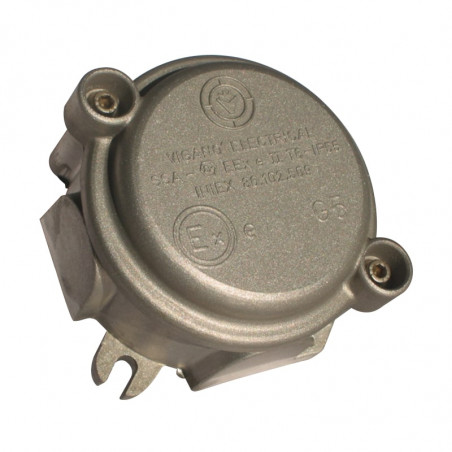

Serijos "S" sujungimo dėžutė, EXd
  • Serijos "S" sujungimo dėžutė, EXd

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: A.D. VIGANÒ

Serijos "S" sujungimo dėžutė, EXd

Protection mode
II 2GD Ex d IIC T6, Ex tD A21 IP66 T85oC (Ambient Temperature -40°C/-60°C, +40°C)
II 2GD Ex d IIC T5, Ex tD A21 IP66 T100oC (Ambient Temperature -40°C/-60°C, +55°C, Temp.cable 95°C)
II 2GD Ex d IIC T4, Ex tD A21 IP66 T135oC (Ambient Temperature -40°C/-60°C, +90°C, Temp.cable 130°C)

Certificate: ATEX, IECEx, GHOST-R.

The boxes of this series are used for pulling and joining conductors.
Materials: anticorrosive light alloy or cast iron on request.
Threads: GAS UNI 6125 or NPT. On request ISO metric.
Painting: on request specify type of RAL.
Boxes may be supplied complete with terminals or terminals strip in picture.



Junction and pulling boxes series S, EXd

Illustrations Type Code Hubs
No Ø
Junction and pulling boxes series S, EXd type SC

SC

SC 14.
SC 26.
SC 36.
SC 59.
SC 69.
2 "½”
¾”
1”
1 ½”
2”"
Junction and pulling boxes series S, EXd type SB

SB

SB 14.
SB 26.
SB 36.
SB 59.
SB 69.
2 "½”
¾”
1”
1 ½”
2”"
Junction and pulling boxes series S, EXd type SL

SL

SL 14.
SL 26.
SL 36.
SL 59.
SL 69.
2 "½”
¾”
1”
1 ½”
2”"
Junction and pulling boxes series S, EXd type ST

ST

ST 14.
ST 26.
ST 36.
ST 59.
ST 69.
3 "½”
¾”
1”
1 ½”
2”"
Junction and pulling boxes series S, EXd type SD

SD

SD 14.
SD 26.
SD 36.
SD 59.
SD 69.
3 "½”
¾”
1”
1 ½”
2”"
Junction and pulling boxes series S, EXd type SX

SX

SX 14.
SX 26.
SX 36.
SX 59.
SX 69.
4 "½”
¾”
1”
1 ½”
2”"
Junction and pulling boxes series S, EXd type SM

SM

SM 14.
SM 26.
SM 36.
SM 59.
SM 69.
3 "½”
¾”
1”
1 ½”
2”"
Junction and pulling boxes series S, EXd type SW

SW

SW 14.
SW 26.
SW 36.
SW 59.
SW 69.
4 "½”
¾”
1”
1 ½”
2”"

Type Dimensions Weight[g]
Ø A ØB  ØC  D E F G H I ØL  M N
S..14 ½” 70 31 88 79 9 72 85 20 55 52 13
S..26 ¾” 90 38 107 100 10 78 92 24 76 69 14 510
S..36 1” 90 41 107 100 10 78 92 27 76 69 14 510
S..59 1 ½” 150 61 170 160 10 113 127 32 130 83 14 1000
S..69 2” 150 68 174 160 12 113 129 34 130 83 16 1000

Type Terminals
mm2 2,5 6 10 16 25
S 4 liczba  - 3 3
S 6  liczba 6 - 4
S 9  liczba 15 12 10 8 6 -
