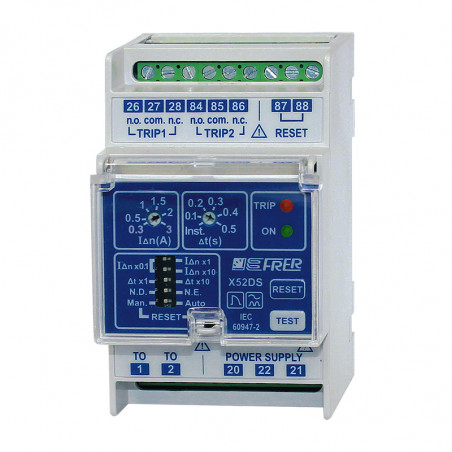

Nuotėkio srovės relė X52DS 53x90
  • Nuotėkio srovės relė X52DS 53x90

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: FRER

Nuotėkio srovės relė X52DS 53x90

Current setting range 25mA...25A (3 ranges)
current accuracy +0/- 20% od 20% do100% f.s.
Delay setting range 0,1...5 sec (2 ranges)
Delay accuracy ±10% of the set values
Operating frequency 47...63Hz
Third harmonic filter Attenuation 88% @ 150Hz
Operation characteristic Typ A wg.IEC775
Toroid connection test Continuous
Trip contact SPDT, 5A 250Vac
Alarm contact N.E. - N.D. selectable
Operating temperature 0...+50°C, U.R. / R.H. <90% n.c.
Storage temperature -20...+70°C
Insulation 2kV 50Hz, 1 min.
Connections Screw max..4
Thermoplastic material UL 94V0
Protection for housing IP40
Protection for terminals IP20
According to IEC 60947-2

TYPE

X52DS

Characteristics to be specified
Aux. supply voltage Standard Va.c. (±10%, 45÷65Hz, 3VA) 115 - 230 V
On demand
with extraprice		 Va.c. (±10%, 45÷65Hz, 3VA) 115 - 230 V 24V; 48V; 400V
Vd.c. (-15...+20%, 3W) 24V; 48V; 110V; 220V
Va.c./d.c. (5VA/5W) 20÷60V; 80÷260V

DESCRIPTION

The X52DS series earth leakage relays are designed to measure the leakage or unbalance currents caused by conductors or appliances insulation losses and to react, in case the set limits are exceeded, switching off the power supply to the defective system. Main features and functions:

  • Wide range of trip currents and delays to guarantee the necessary selectivity in order to keep in operation the parts of the system not involved in thefault.
  • Three ranges of tripping current and two of delay to increase the setting accuracy.
  • Continuous check of the good connection with the toroidal transformer, performed on the measuring winding, with trip action in case of negative result.
  • Selectable manual or automatic reset.
  • Selectable normal or positive safety operating mode of the tripcontacts.
  • Inputs for remote reset.

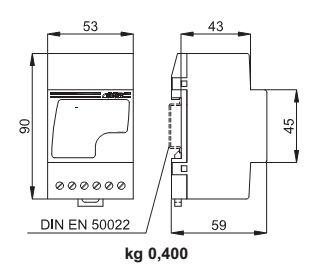

Dimension

Przekaźnik prądu upływu X52DS wymiar

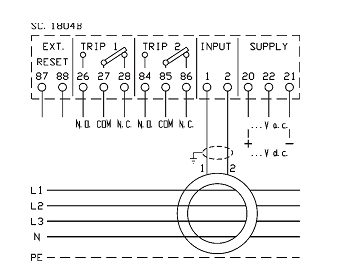

Connection diagram

Przekaźnik prądu upływu X52DS schemat
