Material: PS/ ABS Degree of protection: IP52/53 Enclosures are available as standard in two colors: light gray and black. In the color version in semi-transparent (red and blue) or transparent option. In this category it is also possible to buy enclosures with wall mounting (each of them has handles or ears that allow it to be attached to a flat surface). Table: stays Pictures: in the order attached (if you succeed the first two above the table, the other two below the table). |
Product Code | Type | Option | Dimensions | Color |
Accessories | Protection level | Property class |
---|---|---|---|---|---|---|---|
[mm] | |||||||

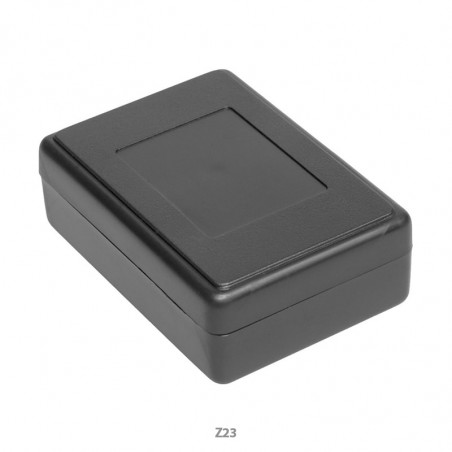

Z23 |
Full with lug (U) Full |
Without gasket | 84.0x59.0x30.0 | Lightgray (J) Black Red (cz) Blue (n) Transparent (p) |
Screw 3/20: 1.0 pcs | IP53 | IK09 |
Z23A |
Full with lug (U) Full |
Without gasket | 84.0x59.0x22.0 | Lightgray (J) Black Red (cz) Blue (n) Transparent (p) |
Screw 3/20: 1.0 pcs | IP53 | IK09 |
Z23B |
Full | Without gasket | 84.0x59.0x38.0 | Lightgray (J) Black Red (cz) Blue (n) Transparent (p) |
Screw 3/30: 1.0 pcs | IP53 | IK09 |
Z24A |
Full with lug (U) Full |
Without gasket | 66.0x47.0x24.0 | Lightgray (J) Black Red (cz) Blue (n) Transparent (p) |
Screw 3/20: 2.0 pcs | IP53 | IK09 |
Z43 |
Full |
Without gasket | 46.0x31.0x16.0 | Lightgray (J) Black Red (cz) Blue (n) |
IP53 | IK09 | |
Z47 |
Full with lug (U) Full |
Without gasket | 50.2x40.4x20.6 | Lightgray (J) Black Red (cz) |
IP54 | IK09 | |
Z63 |
Full | Without gasket | 26.0x17.0x15.0 | Black Red (cz) |
IP54 | IK09 | |
Z75 |
Full | Without gasket | 95.0x45.0x23.0 | Lightgray (J) Black Red (cz) Blue (n) |
Screw 3/13: 4.0 pcs | IP54 | IK09 |
Z76 |
Full | Without gasket | 109.0x59.5x28.0 | Lightgray (J) Black Red (cz) Blue (n) |
Screw 3/16: 4.0 pcs | IP54 | IK09 |
Z77 |
Full | Without gasket | 124.0x71.5x38.0 | Lightgray (J) Black Red (cz) Blue (n) |
Screw 3/16: 4.0 pcs | IP54 | IK09 |
Z78 |
Full | Without gasket | 154.0x84.5x42.5 | Lightgray (J) Black Red (cz) Blue (n) |
Screw 3/30: 4.0 pcs | IP54 | IK09 |
Z111 |
Full | Hermetic (with gasket) (H) Hermetic with brass bushing (H TM) Without gasket With brass bushing ( TM) |
82.0x80.0x55.0 | Lightgray (J) Transparent (p) Lightgray, transparent lid (Jp) |
Screw 3.5/25: 4.0 pcs | IP65 | IK09 |
Z116 |
Full | Hermetic (with gasket) (H) Hermetic with brass bushing (H TM) Without gasket |
51.0x48.9x36.2 | Lightgray (J) Transparent (p) Lightgray, transparent lid (Jp) |
Screw 3.5/20: 2.0 pcs | IP65 | IK09 |
Z117 |
Full | Hermetic (with gasket) (H) Hermetic with brass bushing (H TM) Without gasket |
63.2x57.1x36.7 | Lightgray (J) Transparent (p) Lightgray, transparent lid (Jp) |
Screw 3.5/20: 4.0 pcs | IP65 | IK09 |
![]() |
![]() |
