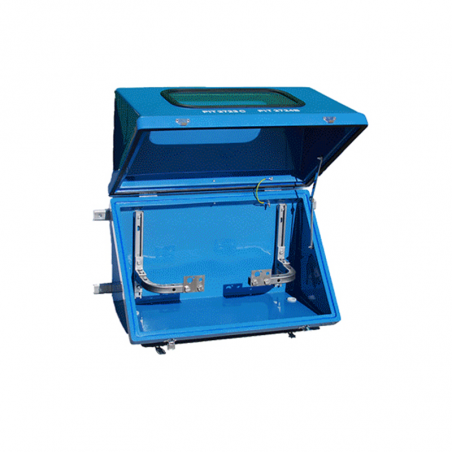

Apsauginis korpusas AKPI.
  • Apsauginis korpusas AKPI.

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Mercomp

Apsauginis korpusas AKPI.

Protection boxes type SP


Protection boxes of SP type are designed to protect instrument process equipments (e.g. transmitter with accessories) mounted in industrial complexes. A boxes protects equipments from mechanical damage, corrosion influence, precipitation, frost and to prohibit access for unauthorized persons.


Construction

    The standard version of SP protection boxes consists of:
  • two-part box made of non-flammable polyester composite reinforced with glass fiber Accessories (hinges, locks) are made of stainless steel. The contact area between the two parts is sealed with non-flammable rubber gasket.
  • assembly construction adapted for mounting a box in a vertical pipe or a wall.


Versions

  • antistatic
  • with internal thermal insulation
  • with steam heating
  • with electric heating (standard and explosion-proof version)
  • with window
  • with lock
  • with manifolds (1÷5 valves)
Other versions after agreements.

Applications

    Protection boxes SP series in antistatic execution are suitable for:
  • potentially explosive atmospheres group IIA, IIB, IIC
  • dust zones classified as 21 and 22



Series


 Width [mm]Height [mm]Depth [mm]
Box SP-01 370 335 295
Box SP-02 440 335 295
Box SP-11 420 440 380
Box SP-12 555 440 380
Box SP-13 700 440 380
Box SP-14 900 440 380
Box SP-22 560 645 515
Box SP-33 450 520 520
Box SP-34 700 520 520
Custom box SP 370...900 335...645 295...520



Dimensions




Internal dimensions
Type SP01 SP02 SP11 SP12 SP13 SP14 SP22 SP33 SP34
Width 330 395 375 510 655 855 510 405 655
Height 330 330 420 420 420 420 600 460 460
Depth 290 290 370 370 370 370 500 460 460


ATTENTION: inside dimensions are for non insulated protection boxes. For insulated protection boxes dimensions should be reduced by ~40 mm.


Type of mounting




Dimensions
Type A B C D
SP01 165 325 450 165
SP02 250 325 450 165
SP11 250 410 410 250
SP12 410 410 660 250
SP13 500 410 740 250
SP14 500 410 920 165
SP22 410 660 660 410
SP33 250 490 480 250
SP34 500 490 470 250



Way of marking and ordering
