Optiniai jutikliai konfigūracijos (siųstuvo-imtuvas) LC-100 serija
  • Optiniai jutikliai konfigūracijos (siųstuvo-imtuvas) LC-100 serija

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Panasonic

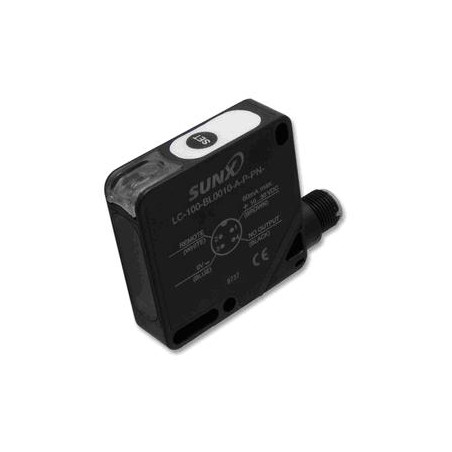

Optiniai jutikliai konfigūracijos (siųstuvo-imtuvas) LC-100 serija

LC-100 sensors has compact casing. They are designed for applications, where normal LED is not enough. eg:.,where there is need of long distance detection or high precision sensor is needed. LC-100 series is available in versions: transmitter-receiver, with reflector and object reflection with background influence elimination.
Description

• Cable or M12 connector
• Compact casing 50x50 mm
• High efficiency and precision for good price
• Detection range 60 m
• Two transistor outputs ("light" or "dark" mode)
• Reflection from the mirror type available with polarise filter.
• Reflection from the object available with an option of background influence elimination.
• Available assembly accessories.

Symbol Type Operation range Output type Power supply
LC-100-T L6000-A-P-PN Transmitter - receiver 60 m Transistor PNP 10-30 VDC
LC-100-P L2000-A-P-PN With mirror 20 m Transistor PNP 10-30 VDC


Connection scheme

 NPN transistor output
  NPN transistor output
mažiau
Skaityk daugiau

Atsiųskite užklausą

Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?

Susisiekite su mumis
KLAUSKITE PRODUKTO close
Dėkojame, kad atsiuntėte žinutę. Atsakysime kuo greičiau.
KLAUSKITE PRODUKTO close
Naršyti
atsiųsti paklausimą

Pridėti į norų sąrašą

tu turi būti prisijungęs

LC-100 sensors has compact casing. They are designed for applications, where normal LED is not enough. eg:.,where there is need of long distance detection or high precision sensor is needed. LC-100 series is available in versions: transmitter-receiver, with reflector and object reflection with background influence elimination.
Description

• Cable or M12 connector
• Compact casing 50x50 mm
• High efficiency and precision for good price
• Detection range 60 m
• Two transistor outputs ("light" or "dark" mode)
• Reflection from the mirror type available with polarise filter.
• Reflection from the object available with an option of background influence elimination.
• Available assembly accessories.

Symbol Type Operation range Output type Power supply
LC-100-T L6000-A-P-PN Transmitter - receiver 60 m Transistor PNP 10-30 VDC
LC-100-P L2000-A-P-PN With mirror 20 m Transistor PNP 10-30 VDC


Connection scheme

 NPN transistor output
  NPN transistor output
