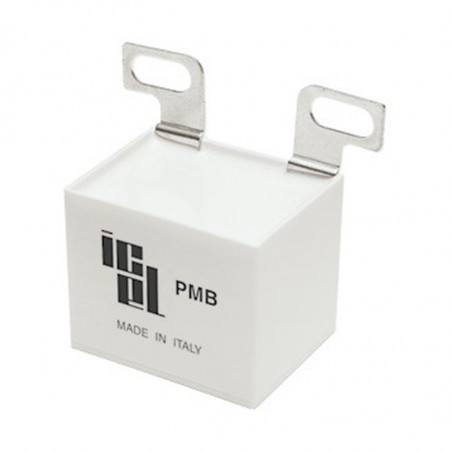

PMB / RMB - polipropileno kondensatoriai
  • PMB / RMB - polipropileno kondensatoriai

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Icel

PMB / RMB - polipropileno kondensatoriai

Main applications

  • Snubber capacitor for energy conversion and control in power
  • semiconductor circuits, IGBT modules protection and SMPS
  • protection circuits, resonant circuits
    • High voltage, high current and high pulse applications


Execution and reference standard

  • Extended double side metallized carrier film with internal series
  • connection and metallized film
  • Box with lug terminals
  • UL 94 V-0, flame retardant execution
  • IEC 61071, IEC 60068, RoHS


PMB/RMB Ur Cn (μF) du/dt (V/μs) Irms max. (A) Nom. size B (mm) x H (mm) x L (mm)
700 Vdc (380/420 Vac) 1 ÷ 12 285 ÷ 600 13.5 ÷ 39.5 17x28x42.5 ÷ 38x57.5x57.5
850 Vdc (500 Vac) 0.68 ÷ 8 360 ÷ 750 13.5 ÷ 39.5 17x28x42.5 ÷ 38x57.5x57.5
1000 Vdc (575 Vac) 0.47 ÷ 6 450 ÷ 870 13.5 ÷ 38.5 17x28x42.5 ÷ 38x57.5x57.5
1200 Vdc (630 Vac) 0.33 ÷ 4.7 500 ÷ 1000 12 ÷ 38.5 17x28x42.5 ÷ 38x57.5x57.5
1500 Vdc (650 Vac) 0.22 ÷ 3.3 575 ÷ 1220 12 ÷ 34.5 17x28x42.5 ÷ 38x57.5x57.5
2000 Vdc (700 Vac) 0.1 ÷ 2.2 725 ÷ 1600 8.5 ÷ 35 17x28x42.5 ÷ 38x57.5x57.5
2500 Vdc (725 Vac) 0.1 ÷ 1.5 930 ÷ 2050 9 ÷ 32 17x28x42.5 ÷ 38x57.5x57.5
3000 Vdc (750 Vac) 0.047 ÷ 1 1150 ÷ 2500 7 ÷ 29 17x28x42.5 ÷ 38x57.5x57.5

Product Card - Download
