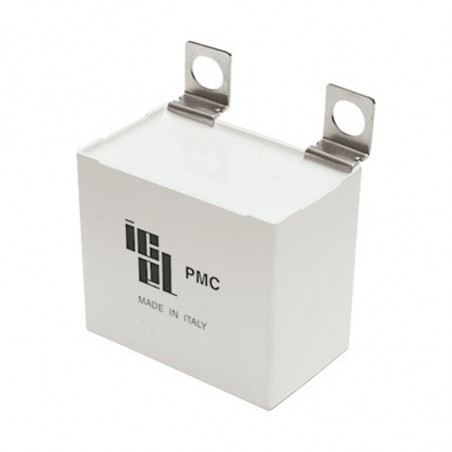

PMC / RMC - polipropileno kondensatoriai
  • PMC / RMC - polipropileno kondensatoriai

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Icel

PMC / RMC - polipropileno kondensatoriai

Main applications

  • Switching capacitor for resonant circuits, industrial and motor speed
  • controls, induction heaters
  • High frequency and high current applications


Execution and reference standard

  • Extended metallized film
  • Box with lug terminals
  • UL 94 V-0, flame retardant execution
  • IEC 61071, IEC 60068, RoHS

PMC/RMC Ur Cn (μF) du/dt (V/μs) Irms max. (A) Nom. size B (mm) x H (mm) x L (mm)
250 Vdc (150/160 Vac) 10 ÷ 100 15 ÷ 27.5 12.5 ÷ 37.5 17x28x42.5 ÷ 38x57.5x57.5
330 Vdc (200/220 Vac) 4.7 ÷ 60 17 ÷ 37.5 11 ÷ 35.5 17x28x42.5 ÷ 38x57.5x57.5
400 Vdc (275 Vac) 4 ÷ 35 20 ÷ 40 16.5 ÷ 34.5 17x28x42.5 ÷ 38x57.5x57.5
435 Vdc (270 Vac) 4.7 ÷ 40 32.5 ÷ 47.5 10 ÷ 29 17x28x42.5 ÷ 38x57.5x57.5
570 Vdc (330 Vac) 2.5 ÷ 25 43.5 ÷ 65 10 ÷ 31.5 17x28x42.5 ÷ 38x57.5x57.5
600 Vdc (350Vac) 2.2 ÷ 20 30 ÷ 55 14 ÷ 32.5 17x28x42.5 ÷ 38x57.5x57.5
675 Vdc (370 Vac) 2.2 ÷ 18 50 ÷ 72.5 10.5 ÷ 30.5 17x28x42.5 ÷ 38x57.5x57.5
700 Vdc (400 Vac) 1.2 ÷ 12 40 ÷ 70 12 ÷ 31.5 17x28x42.5 ÷ 38x57.5x57.5



Product Card - Download
