PPB - polipropileno kondensatoriai
  • PPB - polipropileno kondensatoriai

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Icel

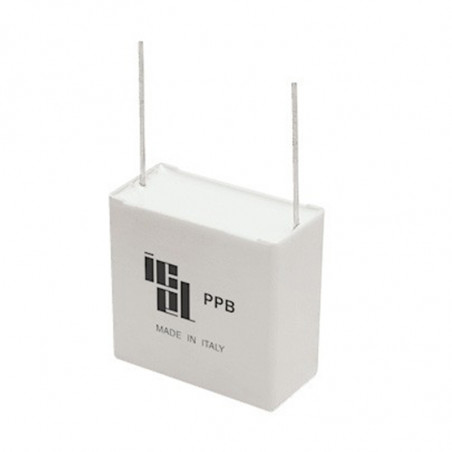

PPB - polipropileno kondensatoriai

Main applications

  • Snubber, SCR commutating circuits, electronic ballasts, protection circuits in SMPSs, deflectors circuits in TV sets
  • High voltage, high current and high pulse operation up to very high operating frequencies


Execution and reference standard

  • Internal series connection and metallized film for Ur≥630Vdc.
  • Box with radial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 60384/16, IEC 60384/17, IEC 60068, RoHS
PPB Ur Cn (μF) du/dt (V/μs) Nom. size B (mm) x H (mm) x L (mm) Pitch (mm)
250 Vdc (160 Vac) 0.047 ÷ 15 170 ÷ 560 5x11x18 ÷ 35x50x42 15 ÷ 37.5
400 Vdc (250 Vac) 0.033 ÷ 6.8 280 ÷ 910 5x11x18 ÷ 35x50x42 15 ÷ 37.5
630 Vdc (400 Vac) 0.01 ÷ 3 950 ÷ 3300 5x11x18 ÷ 35x50x42 15 ÷ 37.5
1000 Vdc (600 Vac) 0.0033 ÷ 1.8 1200 ÷ 5500 5x11x18 ÷ 35x50x42 15 ÷ 37.5
1600 Vdc (650 Vac) 0.0022 ÷ 0.82 1700 ÷ 7500 5x11x18 ÷ 35x50x42 15 ÷ 37.5
2000 Vdc (700 Vac) 0.001 ÷ 0.47 2600 ÷ 9000 5x11x18 ÷ 35x50x42 15 ÷ 37.5



Product Card - Download
