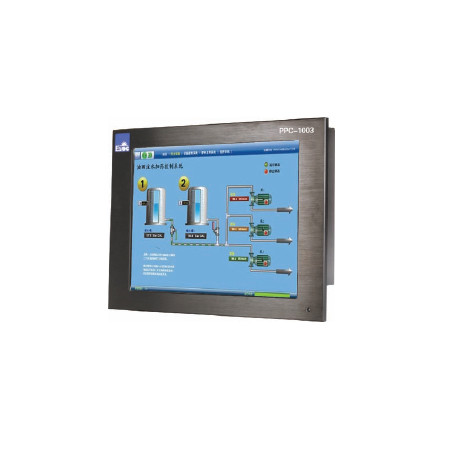

PPC-1003-04 pramoninis panelinis kompiuteris su lietimui jautriu ekranu 10,4"/3COM/LAN/2USB

Features
10.4” color TFT LCD, touch screen available (optional)
AMD LX800 500MHz CPU
Onboard 256MB DDR memory
Supports 2 x USB2.0, 3 x COM, 1 x LAN, 1 x Audio
Ultra-slim design




Specyfikacja techniczna:

Display Features :
Display
10,4” colour TFT LCD
Graphics Card
AMD LX800 integrated graphics controller
Resolution
800x600
Brightness
400cd/m2
Contrast ratio
≥350:1
Touch Screen
4-wire resistive touch screen (optional)
System:
SBC model procesor
AMD LX800 500MHz, 104-1642 CLDNA
Chipset
AMD 5536
Memory
256 MB DDR
Storage
4G CF card
Expansion Interface
PC104 Plus
Ethernet:

Chipset
RTL-8139DL-LF
Speed
10/100 Mbps
Connector
1 x RJ45
I/O Interface

USB
2 x USB 2.0
Serial Port
3 x RS232
Parallel Port
-
KB/MS
-
Audio
1 x HD Audio, MIC-in/speaker-out
Dimensions
Dimensions [szer. x wys. x gł.]
252 x 188 x 30 [mm]
Weight
11,50/14,30 Kg
IP Level(front panel)
IP65
Reliability
MTBF ≥ 50000h; MTTR ≤0,5h
Safety
GB4943
Operating Temperature
0 – 50 oC
Operating Humidity
10-95 %
Power:
Power
Supplier 24VDC
Power Supply
26W (max), +12V@8A (max),+5%/-5%
OS:
Windows OS
Windows XP
Embedded OS
Linux/XP Embeded/Wince
Test
Vibration
5-19 Hz/0,1mm;19-200Hz/1.0g
Shock
10g, 11 ms
EMC/EMI
GB9254-1998 klasa A



Packing List
- Keyboard and mouse cable/RoHS
- 2-pin terminals

Model Number
Description
PPC-1003-04
10,4” LCD panel touch PC/3COM/LAN/2USB
