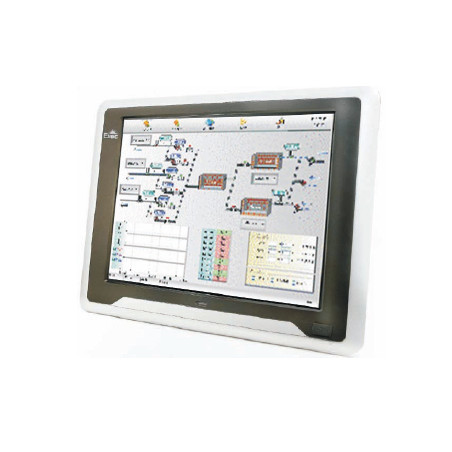

PPC-1571 pramoninis panelinis kompiuteris su lietimui jautriu ekranu 15”/LAN/VGA /4USB/5COM/1394b
  • PPC-1571 pramoninis panelinis kompiuteris su lietimui jautriu ekranu 15”/LAN/VGA /4USB/5COM/1394b

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

PPC-1571 pramoninis panelinis kompiuteris su lietimui jautriu ekranu 15”/LAN/VGA /4USB/5COM/1394b

Features:
15” ultra-slim color TFT LCD, touch screen available (optional)
Intel® AtomTM N270
Onboard 1GB DDRII memory
Supports 4 x USB2.0, 5 x COM, 1 x LAN, 1 x VGA, 1 x 1394b port


Specifications
Display Features
Display Screen 15" color TFTLCD
Display Chipset Intel 945GSE VGA 18bit LVDS
Dual Display 1024x768 XGA
Brightness 350cd/m2
Contrast Ratio 400:1
System:
SBC model procesor Intel Atom N270, MB-PPC-1571
Chipset Intel 945GME + ICH7M
Memory 1 GB DDRII
Watchdog Timer 1-255 sec./min, timer system reset/interput
Storage 1 x 320G 2.5" SATA hard disk, supports 1 x CompactFlash Socket Type I/II
Expansion Interface N/A
Ethernet:
Chipset RTL8111D
Speed 10/100/1000 Mbps
Connector 1 x RJ45
I/O Interface
USB 4 x USB 2.0
Serial Port 4 x RS232 + 1xRS-232/422/485 (com5)
VGA 1 x VGA
Mechanical and Environmental
Dimensions 407,5 x 307,5 x 59,7 [mm]
Weight 6,7/8,12 kg
IP Level (front panel) IP65
Reliability MTBF ≥50000h
Safety GB4943
Operating Temperature 0 – 50 oC
Storage Temperature -20 – 60 oC
Operating Humidity 10-95 %
Power:
Power Supply 24 VDC
Operating System
Windows OS Windows 98SE/Windows XP Sp3
Test:
Vibration 5~17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
Shock 10g acceleration, 11ms duration
EMC/EMI GB9254-1998 class A
Noise ≤ 60 dB


Packing List
Terminal block/RoHS (P/N:2330-001101)

Model Description
PPC-1571 15" LCD panel PC/VGA/4USB/5COM/LAN/1394b
