Profilllus 50.

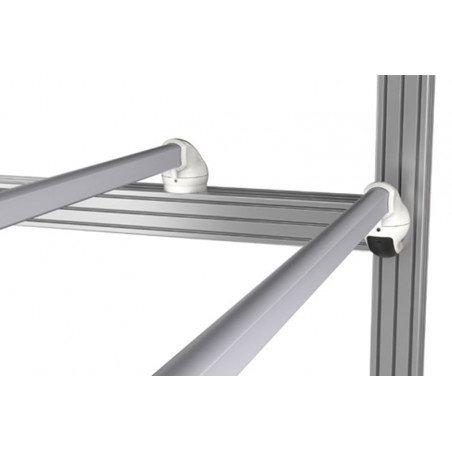

profilPLUS 50

profiPLUS 50 is already an impressive sight. With extensive space for rou-ting cables such as HDM, DVI or network connectors. profiPLUS 70 offers even more room for further control lines. At the same time, the system's bearing strength naturally increases significantly.

On request, the profiPLUS profiles are also available in anodised special colours or powder-coated, in order to achieve even greater harmony with modern machinery.



Thanks to its system diversity, profiPLUS offers a whole host of combination options for individual suspension arm configurations. The example variants presented here serve as orientation aids and demonstrate the diversity of the system.


2 - Coupling incl. support profile, length is variable
3 - Coupling N incl. support profile, length is variablea
8 - Elbow coupling

13 - Wall joint
14 - Socket joint
15 - Intermediate joint
16 - Elbow
17 - Base

T - Support profile, length is variable









All couplings available as standard
with a fitted support profile.		 Set screw system for setting any
arbitrary pivot range.
Integrated earth bonding for protecting both man and machine. Optional adapters for signal lights, e.g. from Werma (lights not included).
Integrated cable protection included as standard.   Reducer adapters from profiPLUS 70 to 50 for connecting smaller enclosure couplings.

System components


coupling


Upright

coupling


Hanging

Coupling N


Upright

Coupling N


Hanging

Desk coupling N


Upright

Desk coupling N


Hanging

Elbow coupling


Upright

Elbow coupling


Hanging

Elbow coupling N


Upright

Elbow coupling N


Hanging

Elbow desk coupling N


Upright

Elbow desk coupling N


Hanging

Wall joint

Socket joint

Intermediate joint

Elbow

Base

Beckhoff adapter

Siemens adapter

70/50 adapter

Signal light adapterJoint/elbow
Przegląd modeli
Rys. System components Mat. no. Hanging Upright pivoting horizontally
adjusting		 tilting Support
profile
length* mm		 Weight / g System length**** mm
1 coupling ** 142 240 250   + +     250 1450 64
  142 240 500   + +     500 2350 64
  142 240 750   + +     750 3250 64
  142 241 000   + +     1000 4150 64
2   142 250 250 +   +     250 1450 64
  142 250 500 +   +     500 2350 64
  142 250 750 +   +     750 3250 64
  142 251 000 +   +     1000 4150 64
3 Coupling N ** 142 260 250   + +   + 250 2520 168
  142 260 500   + +   + 500 3420 168
  142 260 750   + +   + 750 4320 168
  142 261 000   + +   + 1000 5220 168
4   142 270 250 +   +   + 250 2520 168
  142 270 500 +   +   + 500 3520 168
  142 270 750 +   +   + 750 4320 168
  142 271 000 +   +   + 1000 5220 168
5 Desk coupling N ** 142 280 250   + +   + 250 3390 V245/H47
  142 280 500   + +   + 500 4290 V245/H47
  142 280 750   + +   + 750 5190 V245/H47
  142 281 000   + +   + 1000 6090 V245/H47
6   142 290 250 +   +   + 250 3390 V245/H47
  142 290 500 +   +   + 500 4290 V245/H47
  142 290 750 +   +   + 750 5190 V245/H47
  142 291 000 +   +   + 1000 6090 V245/H47
7 Elbow coupling 142 034 000   + +       1260 V144/H80
8   142 035 000 +   +       1260 V144/H80
9 Elbow coupling N 142 036 000   + +   +   2370 V248/H80
10   142 037 000 +   +   +   2370 V248/H80
11 Elbow desk coupling N 142 038 000   + +   +   3240 V325/H127
12   142 039 000 +   +   +   3240 V325/H127
13 Wall joint 142 010 000   + + +     5350 185
14 Socket joint 142 005 000   + + +     4450 80
15 Intermediate joint 142 015 000   + +       4050 80
17 Base *** 142 030 000 + +         1350 50
T Support profile 0,25m 142 000 250             900
T Support profile 0,50m 142 000 500             1800
T Support profile 0.75m 142 000 750             2700
T Support profile 1,00m 142 001 000             3600
T Support profile 1,50m 142 001 500             5400
18 Beckhoff adapter Ø48 142 000 000 + +         200 27
19 Siemens adapter 142 024 000 + +         110 11
20 70/50 adapter 143 000 001 + +         370 55
21 Adapter signal light – joint 142 020 501             150
21 Adapter signal light – elbow 142 020 502             180

+ Functional features
* Special lengths available on request
** Delivery with support profile fitted
*** Horizontal and vertical installation possible
**** The cited values are added to the support profile length. This provides the effective system length. (Details are vertical (V) and horizontal (H) for an upright coupling rotating axis respectively

Technical data

System components:
Die cast aluminium, RAL 7035 light grey

Cover:
Plastic (POM), RAL 7016 anthracite grey

Bellows:
PVC-P, (-30oC do +70oC)
RAL 7016 szary antracyt

Support profile:
Extruded aluminium profile, silver anodised Fastening thread preformed

Gasket:
Chloroprene (CR), (-30oC do +90oC)

Ingress protection:
IP54 / EN 60529

Integrated earth bonding:
DIN VDE 0113 / EN 60204-1 / IEC 204-1

Patented:
Fast horizontal alignment of the complete system structure with a single set screw

OPTIONAL:

Surface:
Special colours for system elements and support profiles

Matching ROLEC control enclosures:
commandCASE , topVISION, multiVISION, aluFACE
