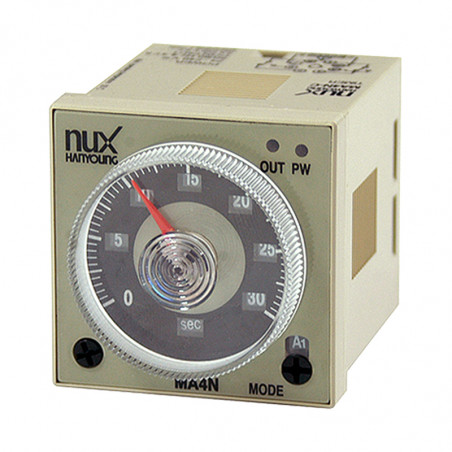

Analog multi timer MA4N company Hanyoung

Suffix code:

Model Code Information

MA4N-

   Analog multi timer (48 X 48 ㎜)
  A 22c (Time limit) ※ 11 pin type
B 2c (time limit+ constantaneous) ※11pin type.
C 2c (time limit), 2c (time limit+ constantaneous) ※ processed by mode selection (8pin type)

Specification

Model

MA4N-A

MA4N-B

MA4N-C
Power Supply voltage 24 - 240 V a.c / d.c 50 - 60 Hz
Voltage regulation ±10 % from supply voltage
Power consumption 5.3 VA (240 V a.c), 2.5 W (240 V d.c)
Resetting time Max. 0.1 sec
Min Signal length START  Min. 20 ms -
INHIBIT
RESET
Input condition START Non voltage Input -
Impedance in a short circuit : Max 2 kΩ
INHIBIT  Residual voltage in a short circuit :: Max. 0.7 V d.c
RESET  Impedance in open : Min. 100 kΩ
Outpur Time Limit 2c Time Limit 1c
Instautaneous 1c		 Time Limit 2c
Time Limit 1c
Instautaneous 1c
N.O : 10 A 125 V a.c, 5 A 250 V a.c, 5 A 30 V d.c
N.C : 3 A 125 V a.c, 2 A 250 V a.c, 1 A 30 V d.c
Setting error Max. ± 5 % ± 0.05 sec -
Repeat error Max. ± 0.3 %
Temperature error Max. ± 2 %
Insulation resistance Min. 100 MΩ (Base on 500 V d.c)
Dielectric strength 2000 V a.c 50 / 60 Hz for 1 min.
Vibration Mechanical
Resistance		 10 - 55 Hz double amplitude 0.75 mm
Malfunction
durability		 10 - 55 Hz double amplitude 0.5 mm
Shock Mechanical
Resistance		 300 m/s² (Approx. 30 G)
Malfunction
durability		 100 m/s² (Approx. 10 G)
Life Mechanical Over 10 million operations (Open [&] Short frequency : 180 / min)
Electrical Over 100,000 (250 V a.c 3 A load resistance)
Terminal type Socket type 11 pin Socket type 8 pin
Ambient temperature -10 ~ 55 ℃ (With no condensation)
Conservation temperature -20 ~ 65 ℃ (With no condensation)
Ambient humidity 35 ~ 85 %R.H.
Weight About 100g (Including fixing bracket)
