Gamintojas: Kissling - Przekaźniki wielkich mocy

Didelės galios relės

DC output high power relays and switches

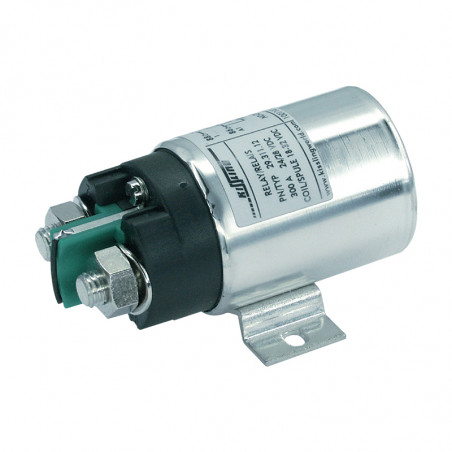

High Power Relays

KISSLING high power relays in the range from 50 – 1000 Amps are designed to meet the highest requirements. High shock and vibration capabilities coupled with high contact pressure and low contact voltage drop are achieved using predominantly a carefully designed dual coil system and an optimized magnetic circuit. Most types can be offered in nominal voltages 12 or 24 V. Environmental sealing with protection standards of IP67 [&] IP6K9K..



Power Relays

KISSLING power relays in the range from 75 – 500 Amps for normal environments – this single coil system relay features high shock and vibration capabilities resulting from careful design and an optimized magnetic circuit. By equipping the relays with blow-out magnets, contact voltages up to 110 V are possible. Environmental sealing with protection standards of IP67 [&] IP6K9K.



Light Weight Relays

Environmentally sealed KISSLING high power relays 300 Amps for specific requirements in aerospace applications. The dual-coil system develops high contact pressure, resulting in low contact voltage drop and enhanced shock and vibration capabilities. An important feature is the minimized coil power resulting from the low holding current. The extremely low mass has been achieved by optimizing both design and size yet maintaining performance and ruggedness. Environmental sealing with protection standards of IP67 [&] IP6K9K.

Relays with Control Electronics

KISSLING relays with control electronics will be our best relay technology that is extended to include a built-in evaluation system. This makes modern high-performance and intelligent switching of a relay; additional electronics enable a multitude of functions, for example electronic shut-off regulation, free programmable over-current shut-off thresholds as well as INIT-, SAFETY- or ENERGY-Control of the relays.


Bi-Stable Power Relays

This KISSLING power relays with a unique circuit and permanent magnetic holding state, requires no holding-coil power. The pull-in coil or the drop-out coil is energized by an impulse only, moving the contact system into the final position held by a permanent magnetic circuit. Environmental sealing with protection standards of IP67 [&] IP6K9K..


Aplikacja

Military vehicles

Kissling, when the switch is required to reliably in extreme conditions!

Armored vehicles, tanks, conveyors, radio stations, special vehicles.



Commercial Vehicles / Railway

KISSLING, whenever reliable switching is required under extreme conditions!

Trucks, busses, agricultural machines, construction equipment, racing cars, special vehicles, fork lifts, rail equipment, marine applications



Special Equipment

KISSLING, whenever individual processes must be switched rapidly and with high precision!

Cleaning devices, traffic management systems, medical equipment, air conditioning, pressure controls, generators



Aerospace

KISSLING, whenever there are requirements for light-weight but very reliable switching!

Commercial and private airplanes, helicopters, cropduster and airships



Machinery [&] Tool Construction

KISSLING, whenever very precise switching is required for complex operations!

Injection molding, printing, tool machinery, woodworking equipment, robotics



Intelligent Switching Systems

Special switches and customer specific switching solutions by KISSLING.

You will find KISSLING switches in car doors, sunroofs, loading platforms, transmissions, anti-brake-lock systems (ABS) and select gear shifts (tiptronic). Special KISSLING switches are used by well known automobile and truck manufacturers.
