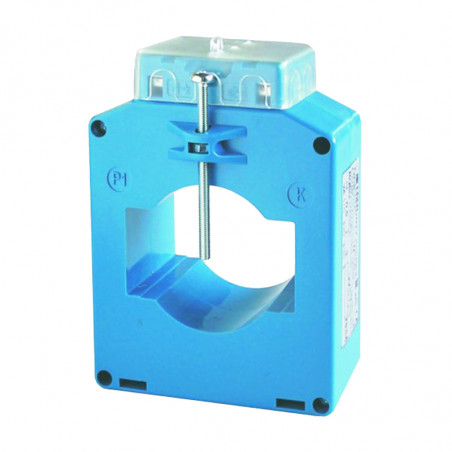

TAT061 Dabartinis transformatorius Ø51 / bėgiui 61x31mm
  • TAT061 Dabartinis transformatorius Ø51 / bėgiui 61x31mm

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: FRER

TAT061 Dabartinis transformatorius Ø51 / bėgiui 61x31mm

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 60 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <10W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE
Integrated secondary terminals 6mm2


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
250/5 A



 3 5

TAT061250X05
300/5 A



 4 6

TAT061300X05
400/5 A 2 6 10

TAT061400X05
500/5 A 4 10 12

TAT061500X05
600/5 A 6 15 18

TAT061600X05
800/5 A 8 15 20

TAT061800X05
1000/5 A 10 20 30

TAT0611K0X05
1200/5 A 12 25 30

TAT0611K2X05
1500/5 A 20 30 40

TAT0611K5X05
2000/5 A 25 40 50

TAT0612K0X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
250/1 A   3 5

TAT061250X01
300/1 A   4 6

TAT061300X01
400/1 A 2 6 10

TAT061400X01
500/1 A 4 10 12

TAT061500X01
600/1 A 6 15 18

TAT061600X01
800/1 A 8 15 20

TAT061800X01
1000/1 A 10 20 30

TAT0611K0X01
1200/1 A 12 25 30

TAT0611K2X01
1500/1 A 20 30 40

TAT0611K5X01
2000/1 A 25 40 50

TAT0612K0X01


Dimensions

Przekładnik prądowy TAT061 wymiary
