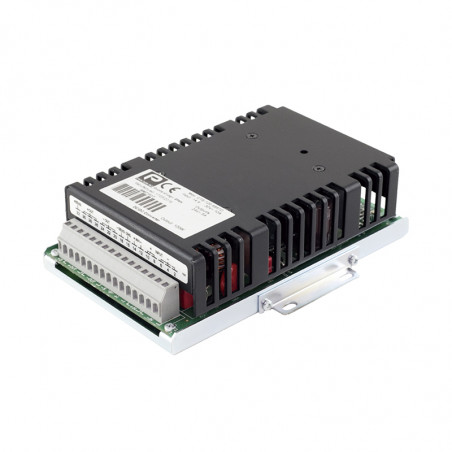

Premium DC / DC keitikliai serijos CRS-120
  • Premium DC / DC keitikliai serijos CRS-120

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: PREMIUM

Premium DC / DC keitikliai serijos CRS-120

Industrial 100 -140W DC/DC converters

The CRS-120 series consists of DC / DC converters up to 140W with multiple input / output combinations. Its robustness allows its use in all types of demanding industrial applications.

KEY FEATURES
  • Switching frequency: 140KHz
  • High input-output isolation
  • Standard size Eurocard 3U
  • Adjustable output voltage
  • Remote sensing
  • Input voltage OK LED
  • Output voltage presence LED
  • Remote inhibit
  • Efficiency up to 89%
PRODUCT WARRANTY: 3 YEARS ACCESSORIES
  • 19″ rack front panel (3U 9TE)
  • Mounting base
  • DIN rail mounting Kit
  • Redundant connection
TERMINAL OPTIONS
  • Spring clamp terminal
  • DIN 41612 H15

 12Vin
9V... 15V
24Vin
18V ... 30V
48Vin
36V ... 72V
72Vin
50,4V ... 90V
110Vin
77V ...144V
220Vin
165V...275V
5Vout

CRS-120-6761

100W 77%

CRS-120-6765

100W 78%

CRS-120-6769

100W 79%

CRS-120-6773

100W 79%

CRS-120-6777

100W 80%

CRS-120-6781

100W 80%
12Vout

CRS-120-6762

100W 78%

CRS-120-6766

120W 83%

CRS-120-6770

120W 84%

CRS-120-6774

120W 84%

CRS-120-6778

120W 85%

CRS-120-6782

120W 85%
24Vout

CRS-120-6763

120W 80%

CRS-120-6767

120W 84%

CRS-120-6771

140W 86%

CRS-120-6775

140W 86%

CRS-120-6779

140W 87%

CRS-120-6783

140W 87%
48Vout

CRS-120-6764

120W 82%

CRS-120-6768

120W 85%

CRS-120-6772

140W 88%

CRS-120-6776

140W 88%

CRS-120-6780

140W 89%

CRS-120-6784

140W 89%
